NET ROUTER 1000M 16PORT / CCR2004-16G-2S+ MIKROTIK
Product reference: 2-4752224007704

NET ROUTER 1000M 16PORT / CCR2004-16G-2S+ MIKROTIK

Product reference: 2-4752224007704
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
407,92 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here's the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example.But that's not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it's a win-win!

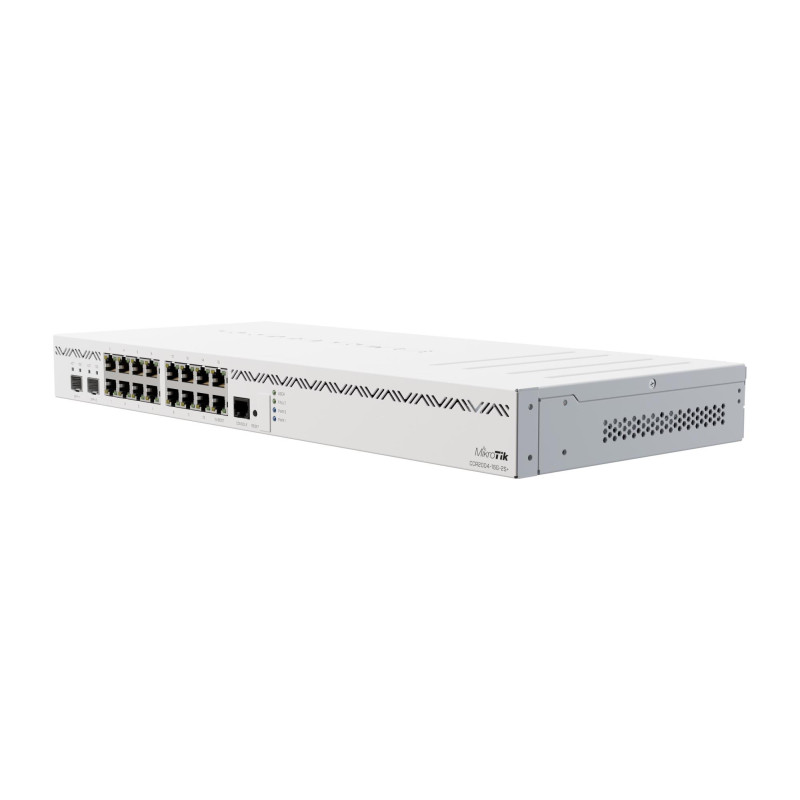

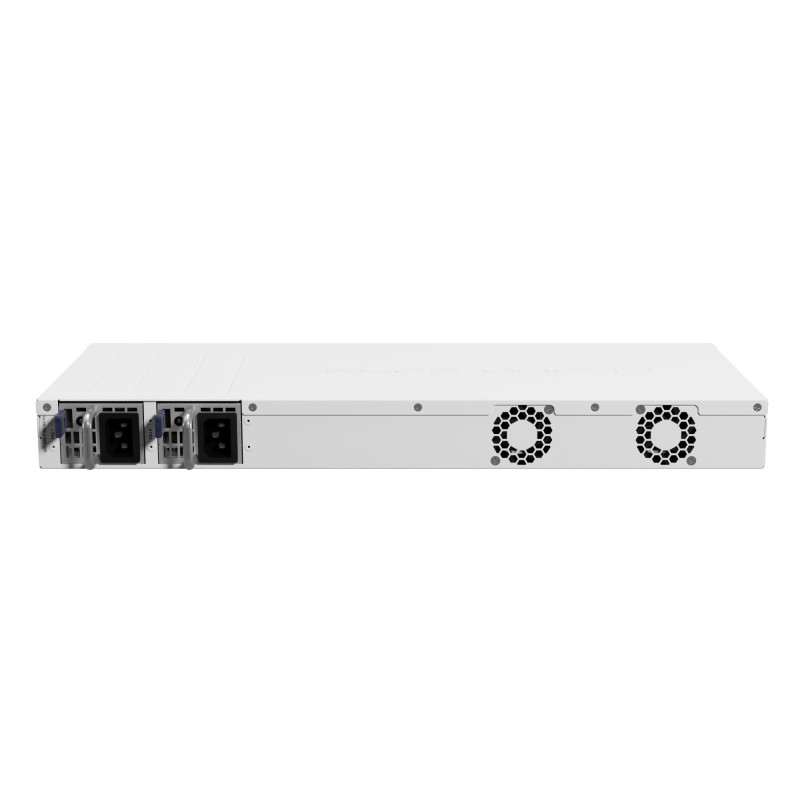

The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.



So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009. Even surpassing it in CPU-heavy configurations! And if that wasn't enough - it can even reach the performance of CCR1016.



The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general.One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.



With the new CCR2004, you can take your office network to the next level. Without breaking the bank.


3G/4G USB modemo suderinamumas Ne
AC įėjimo dažnis 50 - 60 Hz
AC įėjimo įtampa 100 - 240 V
Atitikties sertifikatai RoHS
Aukštis 210 mm
Bruto svoris 2.82 kg
Darbo temperatūros diapazonas (TT) -20 - 60 °C
Darniosios sistemos (DS) kodas 85176990
DSL WAN Ne
Energijos suvartojimas 48 W
Eterneto LAN duomenų perdavimo norma 10/100/1000 Mbit/ai
Eterneto sąsajos tipas Gigabitinis eternetas
Eterneto WAN Taip
Ethernet LAN (RJ-45) portų kiekis 16
Flash atmintis 128 MB
Ilgis 44 mm
Integruotas procesorius Taip
Kabelių technologija 10/100/1000Base-T(X)
Maitinimo šaltinio tipas AC
Neto svoris 2 kg
Pilnai abipusis (duplex) Taip
Plotis 443 mm
Procesoriaus dažnis 1700 MHz
Procesoriaus gamintojas Annapurna Labs
Product model code CCR2004-16G-2S+
Produkto spalva Balta
Rėmo pajėgumas 1U
Sertifikavimas CE, EAC, ROHS
SFP modulio angų kiekis 2
Shipping Box Depth 49 cm
Shipping Box Height 33 cm
Shipping Box Weight 14.1 kg
Shipping Box Width 30.5 cm
SIM kortelės anga Ne
Stovo montavimas Taip
Summary Mikrotik CCR2004-16G-2S+. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Compliance certificates: RoHS. Processor manufacturer: Annapurna Labs, Processor frequency: 1700 MHz, Flash memory: 128 MB. Product colour: White, Rack capacity: 1U. Power consumption (typical): 48 W, Power source type: AC, AC input voltage: 100 - 240 V
Temperatūros stebėsena Taip
Unit Box Height 0.06
Unit Box Length 0.475
Unit Box Width 0.29
Unit Brutto Volume 0.009864 cubm
USB prievadų skaičius 1
Vendor Homepage https://mikrotik.com/product/ccr2004_16g_2s_#fndtn-specifications
Vidinė atmintis 4096 MB
Vidinės atminties tipas DDR4
Vidutinis laikas tarp trikčių (MTBF) 200000 h
Vieneto aukštis 6 cm
Vieneto gylis 47.5 cm
Vieneto plotis 29 cm
Vienetų skaičius vienoje siuntimo dėžėje 5
Įtampos stebėsena Taip
Įvesties srovė 0.9 A
