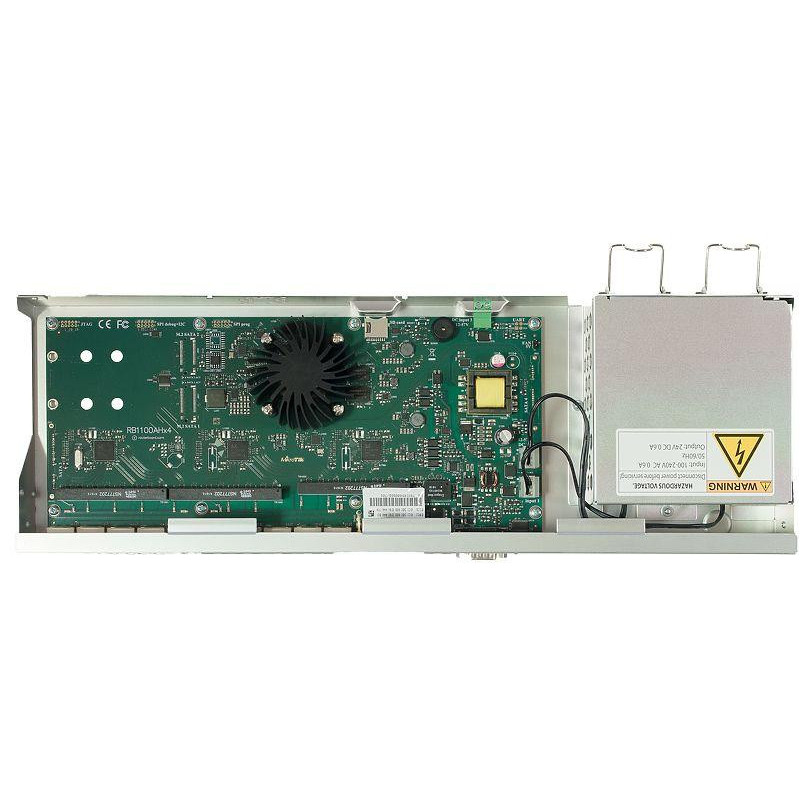

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

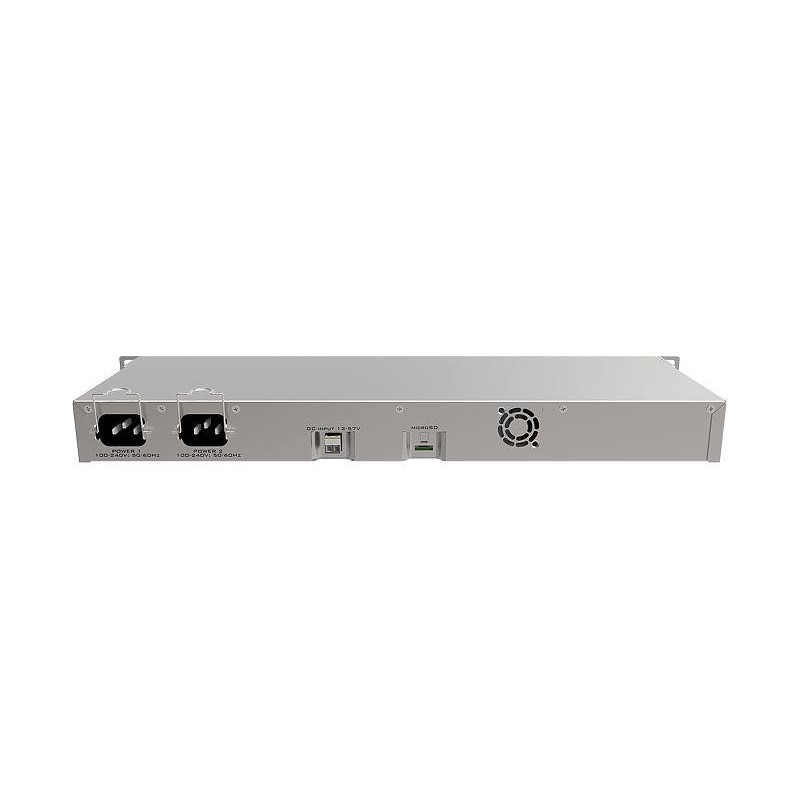

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
| 3G/4G USB modem compatibility | No |
| AC input voltage | 100 - 240 V |
| Antenna type | Not supported |
| Height | 47 mm |
| Gross weight | 1.8 kg |
| Operating temperature range (OT) | -40 - 70 °C |
| Harmonized System (DS) Code | 85176990 |
| DC Input Jack | Yes |
| DSL WAN | No |
| Power Consumption | 20 W |
| Ethernet LAN Data Rate | 10/100/1000 Mbit/s |
| Ethernet Interface Type | Gigabit Ethernet |
| Ethernet WAN | Yes |
| Number of Ethernet LAN (RJ-45) ports | 13 |
| Ethernet LAN connector | Yes |
| Firmware upgrade | Yes |
| Flash memory | 128 MB |
| Length | 148 mm |
| Integrated processor | Yes |
| IP address filtering | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Storage | Cache |
| LED indicators | Activity/Fault |
| Power over Ethernet (PoE) | Yes |
| Power supply type | AC,DC,PoE |
| Net weight | 1.3 kg |
| Default operating system | RouterOS |
| Width | 444 mm |
| Bandwidth | 7.5 Gbit/s |
| Cables included | AC |
| Processor cores | 4 |
| Processor frequency | 1400 MHz |
| Processor model | Annapurna Labs Alpine AL21400 |
| Product model code | RB1100AHx4 |
| Product color | Stainless steel |
| RS-232 ports | 1 |
| Frame capacity | 1U |
| Shipping Box Depth | 47 cm |
| Shipping Box Height | 6 cm |
| Shipping Box Weight | 1.8 kg |
| Shipping Box Width | 23 cm |
| SIM card slot | No |
| Stand mounting | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Summary | Mikrotik RB1100AHx4. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Cables included: AC. Processor model: Annapurna Labs Alpine AL21400, Processor frequency: 1400 MHz, Storage media: Flash. Product colour: Stainless steel, Rack capacity: 1U, LED indicators: Activity, Fault. Power consumption (typical): 20 W, Power source type: AC, DC, PoE, AC input voltage: 100 - 240 V |
| Temperature monitoring | Yes |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.47 |
| Unit Box Width | 0.23 |
| Unit Gross Volume | 0.006486 cubm |
| Vendor Homepage | https://mikrotik.com/product/rb1100ahx4#fndtn-specifications |
| Internal Memory | 1000 MB |
| Unit Height | 6 cm |
| Unit Depth | 47 cm |
| Unit Width | 23 cm |
| Number of Units Per Shipping Box | 1 |
| Web-based management | Yes |
| Voltage monitoring | Yes |
