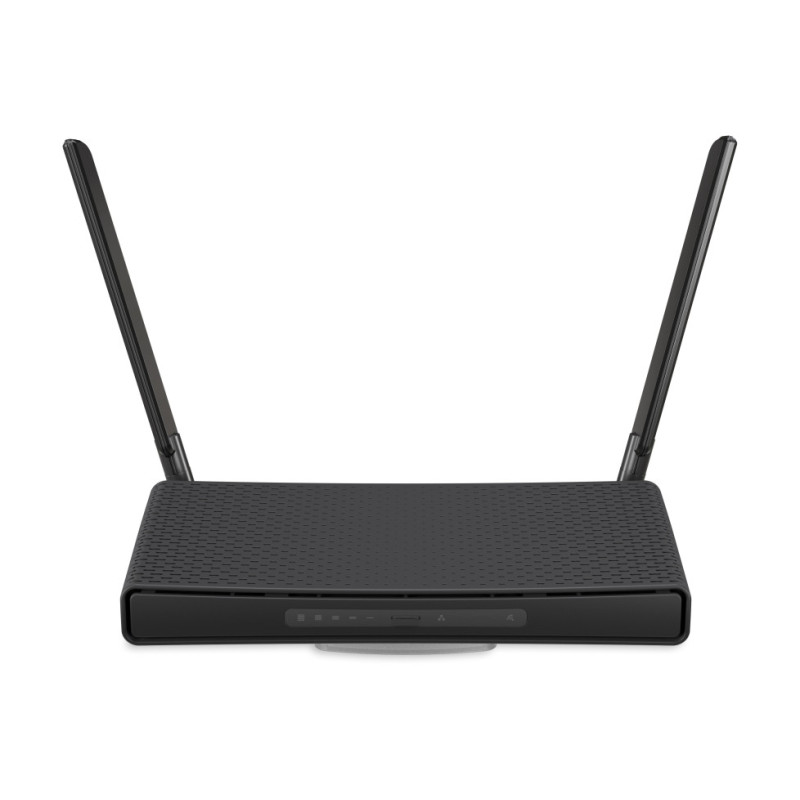

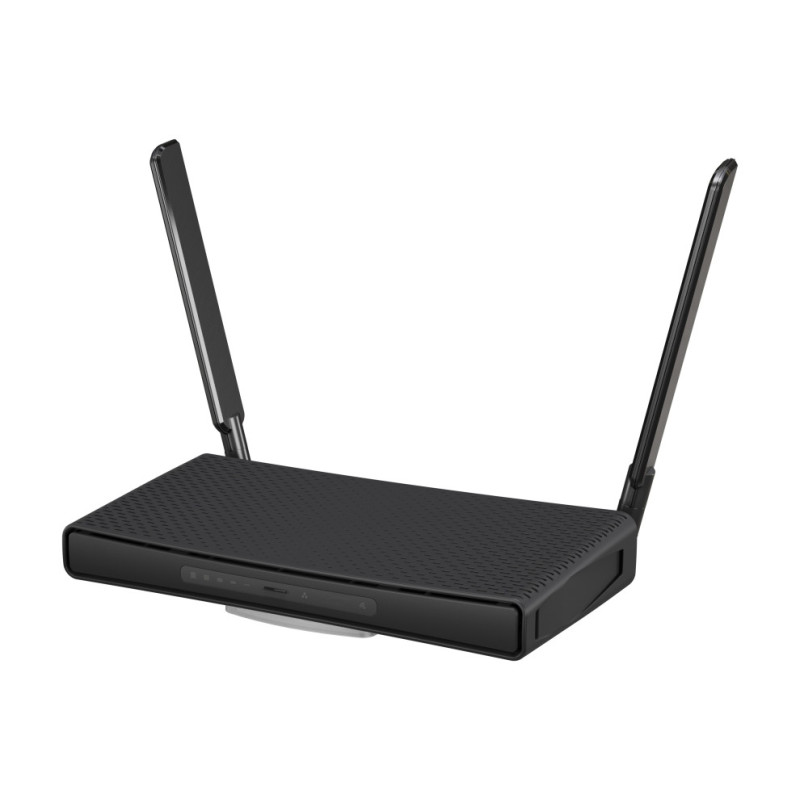

MIKROTIK Wi-Fi 6 AX1800 dual-band router with 2.5Gigabit Ethernet port and external high gain antenna, hAP ax3
Product reference: 18-C53UiG+5HPaxD2HPaxD

MIKROTIK Wi-Fi 6 AX1800 dual-band router with 2.5Gigabit Ethernet port and external high gain antenna, hAP ​​ax3

MIKROTIK Wi-Fi 6 AX1800 dual-band router with 2.5Gigabit Ethernet port and external high gain antenna, hAP ax3

Product reference: 18-C53UiG+5HPaxD2HPaxD

MIKROTIK Wi-Fi 6 AX1800 dual-band router with 2.5Gigabit Ethernet port and external high gain antenna, hAP ​​ax3

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
12749
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 3
business days

Your message has been successfully sent!
Fill in the required fields*

Maximum power for your home


hAP ax³is our most powerful AX device with the best wireless network coverage. The device has a modern quad-core ARM processor operating at 1.8 GHz and enough memory (1 GB RAM and 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing or multiple remote work VPN connections will not interfere with comfortable browsing, streaming and gaming for the whole family. The processor power is enough for everyone. Additionally, a high-speed USB 3 port is installed, suitable for storage devices or an LTE modem.


AX Wireless - Strong as an Ox

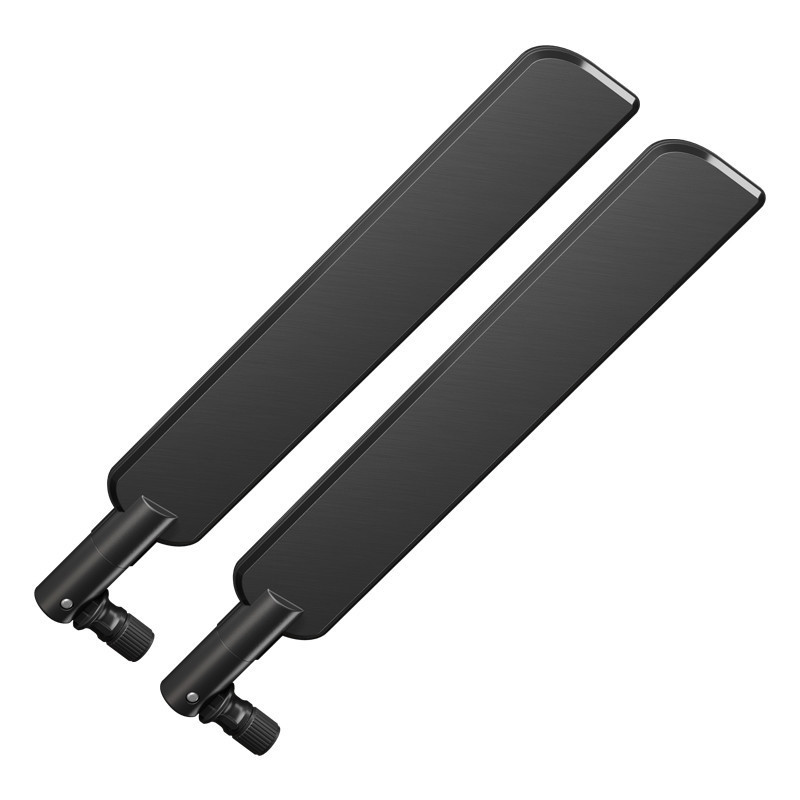

Depending on the overall network configuration, our AX product line offers up to 40% faster speeds on 5 GHz and up to 90% faster speeds on 2.4 GHz! Powerful external antennas ensure a strong connection with up to 5.5 dBi of gain, so forget about Wi-Fi amplifiers and other tricks. Smooth and fast connection throughout the apartment - that's how hAP ax³ works. Home network speed gets serious - the device has 4 Gigabit Ethernet ports and a super fast 2.5 Gigabit port.


Security at all levels


hAP ax³will provide you with peace of mind in several ways at once. European production, renowned Nordic work ethic and cooperation with EU legislators ensure compliance with all necessary security policies. Multiple power sources (DC Jack PoE-in) reduce the risk of potential interference. LatestRouterOS v7updates and WPA3 encryption support ensure exceptional software security.


In summary- hAP ax³ is one of the fastest, most secure and powerful home access points on the market. Wired or wireless. And it works with the most advanced network software -RouterOSUnlike many other manufacturers, we don't limit what you can do. There are no hidden fees or confusing subscriptions. All of our devices have the same unlimited operating system - the only limit is your imagination.


Some may ask - why do we need faster wireless speeds? Well, there are many things that were previously simply impossible or difficult to implement. For example, working with large media files over a wireless network, without having to download and upload everything. Do you really have time to wait? Get the hAP ax³ and save more time for the most important things in life.

















































ArchitectureARM 64bit
CPUIPQ-6010
CPU core count4
CPU nominal frequencyauto (864 - 1800) MHz
RouterOS license6
Operating SystemRouterOS v7
RAM size1GB
Storage size128MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
IPsec hardware accelerationYes

Wireless capabilities






























































Details
Wireless 2.4 GHz Max data rate574 Mbps
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz3.3
Wireless 2.4 GHz chip modelQCN-5022
Wireless 2.4 GHz generationWi-Fi 6
Wireless 5 GHz Max data rate1200 Mbps
Wireless 5 GHz number of chains2
Wireless 5 GHz standards802.11a/n/ac/ax
Antenna gain dBi for 5 GHz5.5
Wireless 5 GHz chip modelQCN-5052
Wireless 5 GHz generationWi-Fi 6
WiFi speedAX1800

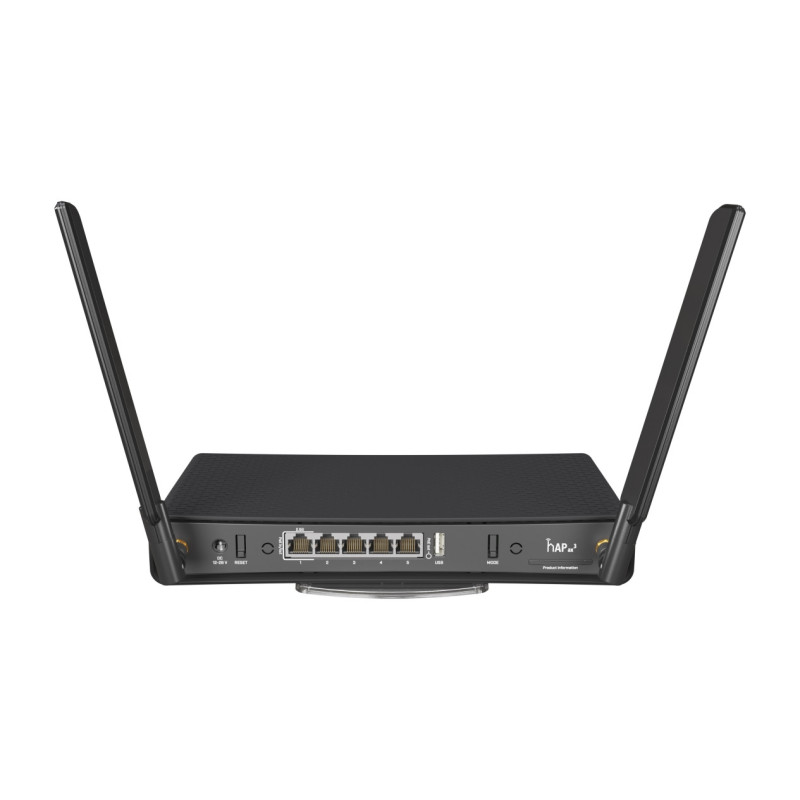

Ethernet






















Details
10/100/1000 Ethernet ports4
Number of 1G Ethernet ports with PoE-out1
Number of 2.5G Ethernet ports1

Peripherals


























Details
Number of USB ports1
USB Power ResetYes
USB slot typeUSB 3.0 type A
Max USB current (A)1

Powering






































Details

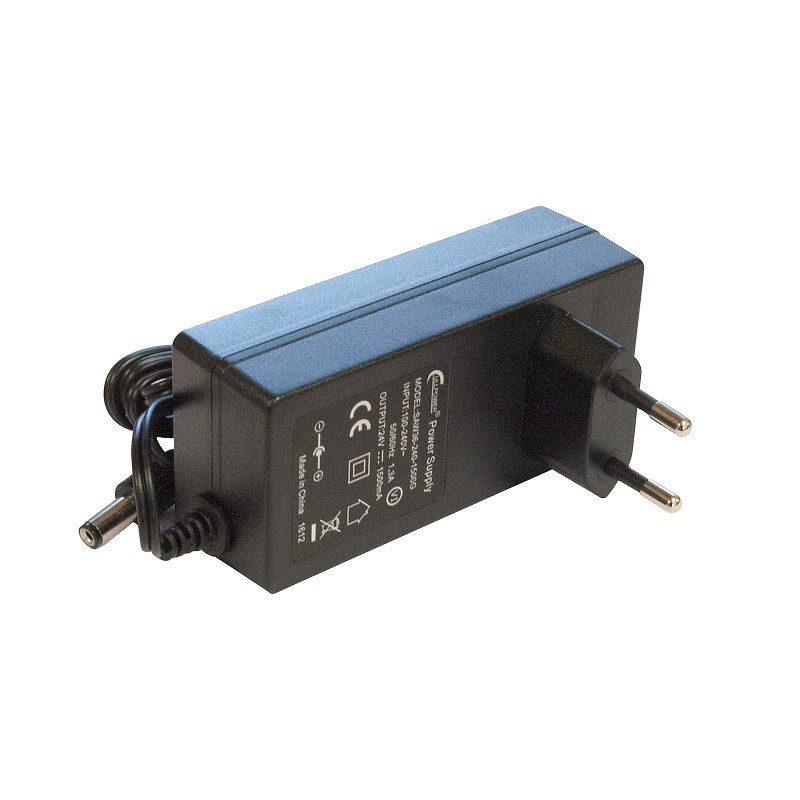

Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-28V
Max power consumption38W
Max power consumption without attachments15W
Cooling typePassive
PoE inPassive PoE
PoE input voltage18-28V

PoE-out


































Details
PoE-out portsEther 1
PoE outPassive PoE
Max out per port output (input 18-30 V)0.625 A
Max total out (A)0.625 A
Total output current0.625
Total output power15

Certifications Approvals














Details
CertificationCE, FCC, IC, EAC, ROHS

Other


















Details
CPU temperature monitorYes
Mode buttonYes

Wireless specifications




















































2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s27-100
11MBit/s27-94
6MBit/s29-96
54Mbps27-80
MCS029-96
MCS726-75
MCS924-70
MCS1122-67









































5GHzTransmit (dBm)Receive Sensitivity
6MBit/s28-96
54Mbps26-80
MCS028-96
MCS725-75
MCS923-70
MCS1120-67
