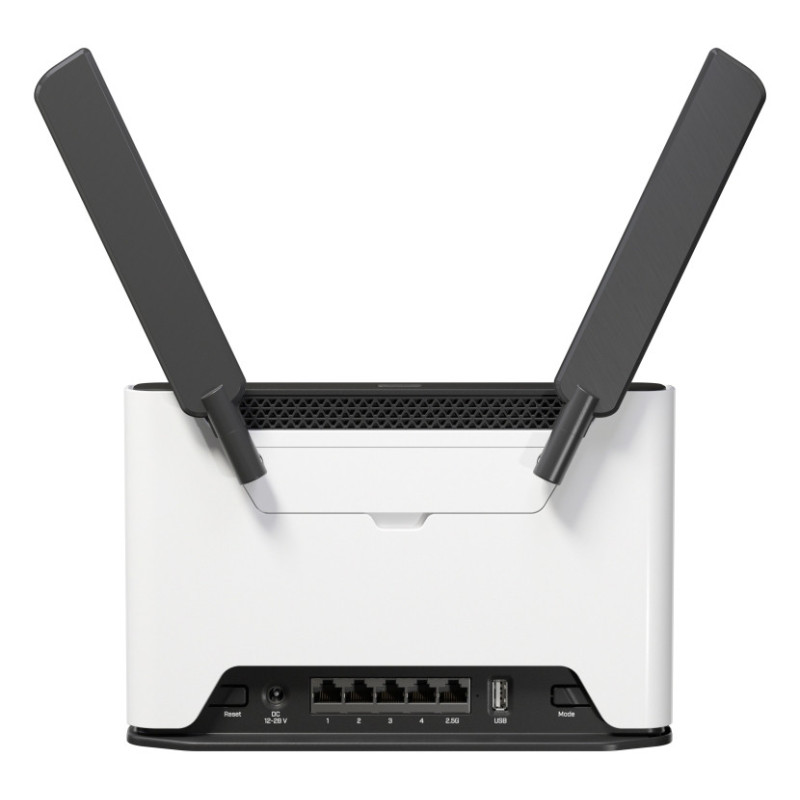

MIKROTIK Wi-Fi 6 Access Point, LTE ver.7 support, Chateau LTE7 ax

MikroTik Our favorite high-performance LTE router for home and office has received a serious upgrade.
Chateau LTE7 ax retains the same powerful hardware, elegant design, and Wi-Fi 6 performance, but is now equipped with LTE Category 7 modem, a wider range of supported frequencies and at a significantly lower price than the previous LTE6 ax version.

Why choose CAT7?

•


  Up to 2x faster sending speed
  (depends on cell tower infrastructure and other factors)





•


  Wider frequency support, including Band 28 (700 MHz) and Band 32 (1500 MHz) - for better performance on busy networks





•


  Carrier Aggregation (2×CA) - greater efficiency and faster response in heavily used networks





•


  Same reliable design - no changes to installation or configuration





•


  Lower price - better connectivity that actually costs less, especially when purchased in larger quantities




Powerful LTE router for demanding networks

Chateau LTE7 ax connects the new R11e-LTE7 modem, quad-core ARM processor, 1GB RAM, Wi-Fi 6 (802.11ax) dual-band wireless connection and 2.5 Gigabit Ethernet port for a super fast local network.

You can:

•


  use multiple secure VPN tunnels,





•


  configure advanced firewall rules,





•


  create complex container environments,





•


  implement complex routing scenarios,




and all this together with faster and more stable mobile internet.
Whether LTE is your primary connection or a reliable backup connection for fiber - Chateau LTE7 ax adapts easily and stylishly.

A great solution for home offices, businesses and ISPs

With five Ethernet ports (including 2.5G ), 2×2 MIMO LTE with support and full RouterOS v7 functionality, Chateau LTE7 ax suitable for various usage scenarios:

•


  for secure home offices and remote work,





•


  small and medium-sized enterprises,





•


  for LTE or hybrid ISP solutions,





•


  for households looking for efficiency and clean design.




It is equally convenient for experienced system administrators who need complete flexibility and users who simply want connect and forget.

Remote control and easy maintenance

Chateau supports TR-069 technology, allowing you to create individual remote customer management solutions.
This means that the simplest router settings can be accessed on the same page where you pay your mobile bill.

Product code: S53UG+5HaxD2HaxD-TCR11e-LTE7
Architecture: ARM 64bit
CPU: IPQ-6010
CPU core count: 4
CPU nominal frequency: 448-896 (auto) MHz
CPU Thread count: 4
Switch chip model: IPQ-6010
RouterOS license: 4
Operating System: RouterOS v7
RAM size: 1 GB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C

Powering

Number of DC inputs: 1 (DC jack)
DC jack input Voltage: 12-28 V
Max power consumption: 21.5 W
Max power consumption without attachments: 15.5 W
Cooling type: Passive

Mobile

3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
3G bands:
1 (2100MHz)
5 (850MHz)
8 (900MHz)
3 (1800MHz)
LTE Category: 7 (DL: 300 Mbps; UL: 100 Mbps)
MIMO DL: 2x2
MIMO UL: 1x1
LTE FDD bands:
1 (2100MHz)
3 (1800MHz)
5 (850MHz)
7 (2600MHz)
8 (900MHz)
20 (800MHz)
28 (700MHz)
32 (1500MHz)
LTE TDD bands 38 (2600 MHz)
40 (2300MHz)
41 (2500MHz)
TAC 35312597

Wireless specifications

Wireless 2.4 GHz Max data rate: 574 Mbit/s
Wireless 2.4 GHz Number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz: 3
Wireless 2.4 GHz chip model: QCN-5022
Wireless 2.4 GHz generation: Wi-Fi 6
Wireless 5 GHz Max data rate: 1200 Mbit/s
Wireless 5 GHz Number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz: 6
Wireless 5 GHz chip model: QCN-5052
Wireless 5 GHz generation: Wi-Fi 6

Ethernet

10/100/1000 Ethernet ports: 4
Number of 2.5G Ethernet ports: 1

Peripherals

Number of SIM slots: 1 Modem (Micro SIM)
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1

Other

CPU temperature monitor: Yes
PCB temperature monitor: Yes
Voltage Monitor: Yes
Mode button: Yes

Certifications Approvals

Certification: CE, EAC, ROHS
IPs: 20
