MIKROTIK wAP LTE Kit - 2.4 GHz wireless AP/router with a built in cellular modem (wAPR-2nDEC200A-EU)
MIKROTIK wAP LTE Kit - 2.4 GHz wireless AP/router with a built in cellular modem (wAPR-2nDEC200A-EU)
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
This updated classicwAP LTEkit - with a new LTE modem that reduces the price and increases performance!Revolutionary price: bestOUTDOOR LTE/WI-FIoffer on the market if you have a limited budget.
wAP LTE kit- is a compact, weatherproof wireless access point designed for outdoor installation in the garden, on the porch or anywhere else where reliable wireless connectivity is needed, even on a budget. It has an Ethernet port with passive PoE input, but there are other ways to power this access point: a standard DC outlet or a car jack can also be used.
The new version uses a new LTE modem that provides better connectivity, adds the popular B28 frequency, and significantly reduces the price!

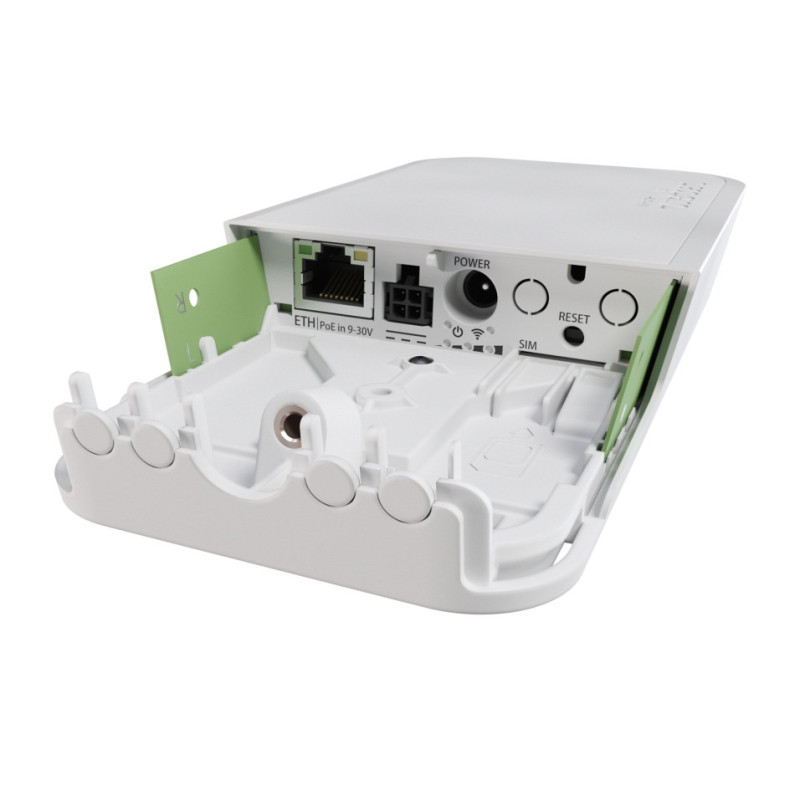

wAP LTE kitis weatherproof and can be mounted to any exterior wall from the inside of the unit - providing extra security and less visible fixings. The bottom can also be secured using a special anti-vandal screw that can only be opened by the owner. There is a hole on the back of the unit that allows the Ethernet cable to pass directly behind the unit and through the wall. This allowswAPattract less attention and blend easily into any environment.
| Product code | wAPR-2nDEC200A-EU |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| RAM size | 64MB |
| Storage size | 16MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage | 9-30V |
| Automotive input Voltage | 9-30V |
| Max power consumption | 7W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE input voltage | 9-30V |
Mobile
| Details | |
|---|---|
| 2G Category | Class12 |
| 2G bands | 8 (900MHz) / 3 (1800MHz) |
| 3G Category | R7 (21Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 5 (850MHz) / 8 (900MHz) / 1 (2100MHz) |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands | 20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900MHz) / 5 (850MHz) / 28 (700MHz) |
| LTE TDD bands | 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz) |
| TAC | 86314105 |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbps |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certifications Approvals
| Details | |
|---|---|
| Certification | CE, E-MARK, EAC, ROHS |
| IP | 54 |
