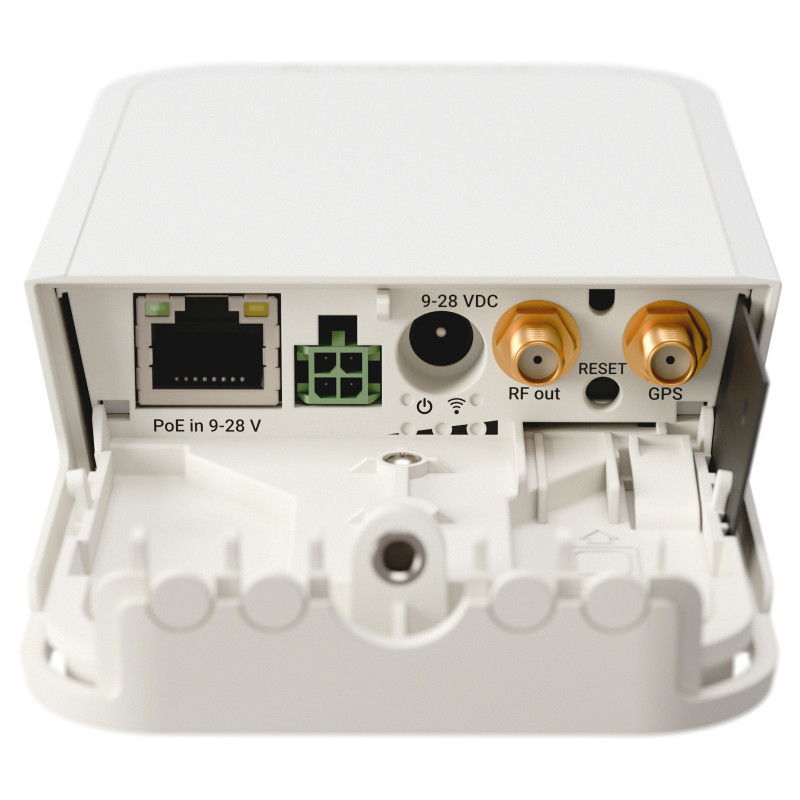

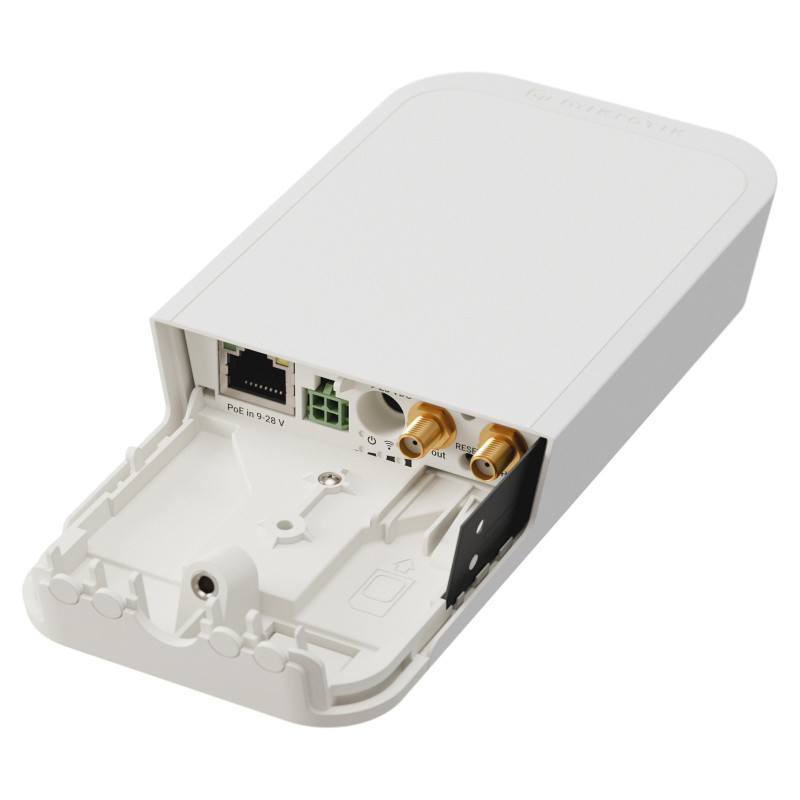

Mikrotik wAP LR8G kit gateway / controller

Mikrotik wAP LR8G kit. Product colour: White, International Protection (IP) code: IP54. Antenna gain level (max): 2 dBi, Mean time between failures (MTBF): 200000 h. Processor model: QCA9531, Processor frequency: 600 MHz, Internal memory: 64 MB. Ethernet LAN data rates: 10,100 Mbit/s, Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. SIM card type: MiniSIM

A compact, weatherproof outdoor gateway for LoRa® technology. The updated 868MHz LoRa® module delivers enhanced Rx sensitivity, extending your range and improving reliability—even in rough conditions.

Our products for LoRa® are ready to work with "The Things Network" - the famous open source infrastructure that provides free LoRa® network coverage and has tons of apps for your needs. With the help of "The Things Network" you can get started with the Internet-of-things within a day. And it is easily upgradable to enterprise-grade network "The Things Industries".

The setup is so easy - anyone can learn it. No need to reinvent the wheel, join "The Things Network" to save time and energy with smart solutions!

Design

Product colour: White
International Protection (IP) code: IP54

Features

Antenna gain level (max): 2 dBi
Feature: GPS (satellite)
Mean time between failures (MTBF): 200000 h

Performance

Feature: Built-in processor
Processor model: QCA9531
Processor frequency: 600 MHz
Number of processors installed: 1
Internal memory: 64 MB
Flash memory: 16 MB

Network

Ethernet LAN data rates: 10,100 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (max): 300 Mbit/s

Ports & interfaces

Feature: SIM card slot
SIM card type: MiniSIM

Power

Power consumption (max): 5 W
DC input voltage: 9 - 30 V

Software

Compatible operating systems: RouterOS v7

Operational conditions

Operating temperature (T-T): -40 - 60 °C

Certificates

Certification: CE, EAC, ROHS
