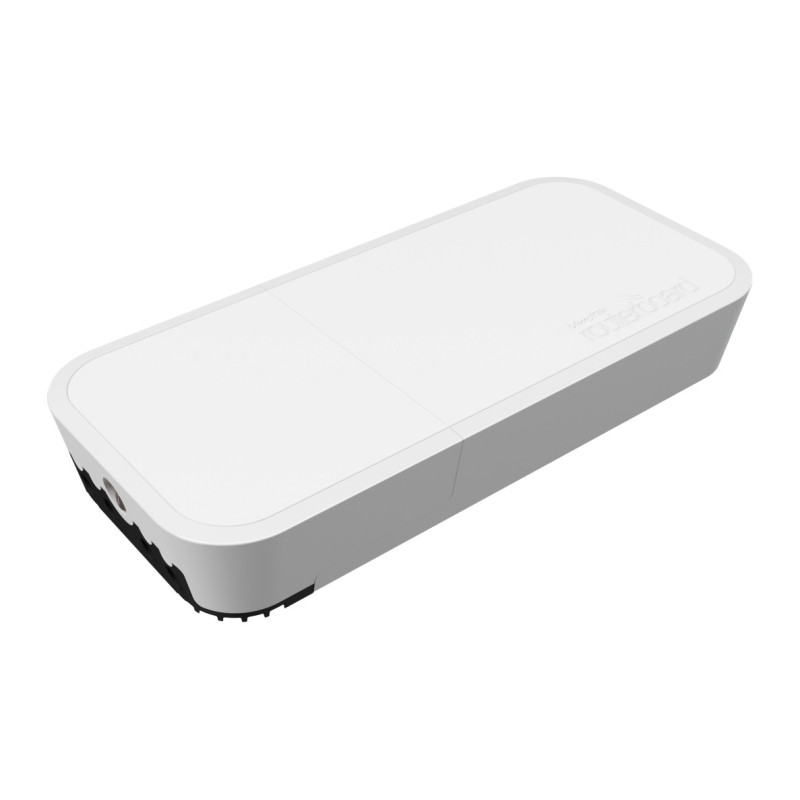

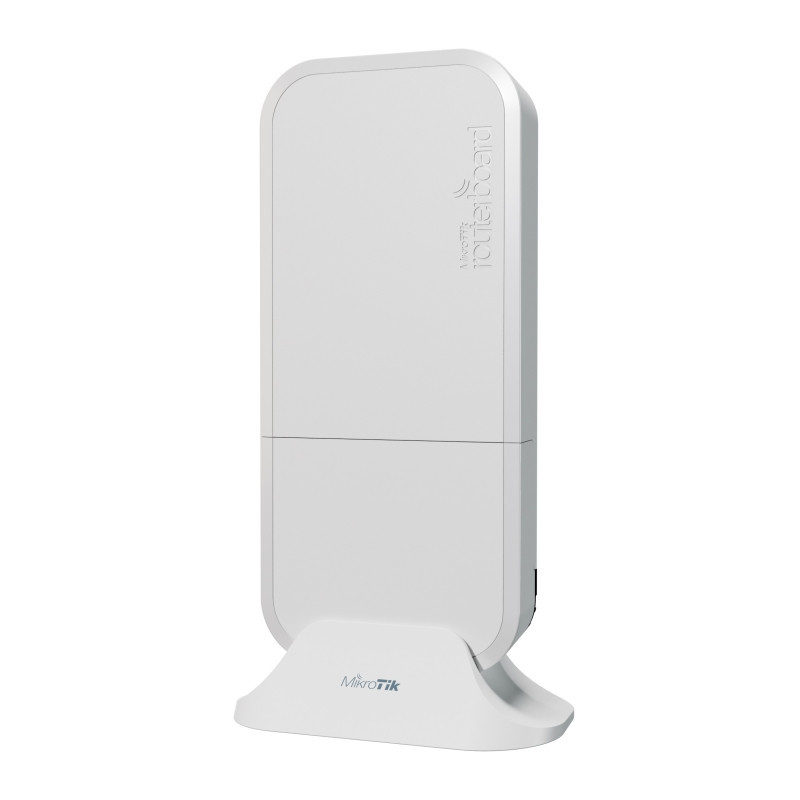

MIKROTIK wAP ax Weatherproof Access Point
MIKROTIK wAP ax Weatherproof Access Point
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
wAP ax: Fast and Reliable Wi-Fi 6 for Challenging Environments wAP ax brings fast and reliable Wi-Fi 6 connectivity to your rural homestead or other challenging environments - such as a rural gas station or bus stop. wAP's legendary weatherproof design has been tested over generations around the world and remains a favorite of MikroTik users for its simplicity and durability.
The powerful dual-band, dual-link (2x2 MIMO) radio ensures fast and reliable wireless connectivity both indoors and outdoors.
Wi-Fi 6: More than just speed Of course, Wi-Fi 6 is much faster in both the 2.4 GHz spectrum (up to 90% faster!) and the 5 GHz spectrum (up to 40% faster!), but it offers much more. Wi-Fi 6 significantly improves energy efficiency and security. OWE/WPA3-PSK/WPA3-EAP encryption and control frame protection help protect against various attacks, such as brute force attacks and deauthentication attacks.
Additionally, if you have multiple wAP ax devices in a larger area, you'll enjoy improved smooth, fast switching between signals - your devices will automatically connect to the strongest signal... without any interference!
Enhanced hardware for uninterrupted connectivity and easy management This compact access point has a modern dual-core ARM processor and runs on RouterOS v7, ensuring stable internet and excellent VPN performance throughout your area. wAP ax also supports the new CAPsMAN system, which allows you to easily manage multiple devices with just a few clicks.
The device has two Gigabit Ethernet ports, with PoE-in on one for a choice of power delivery options. You can also use a standard DC jack - because we believe you should have a choice.

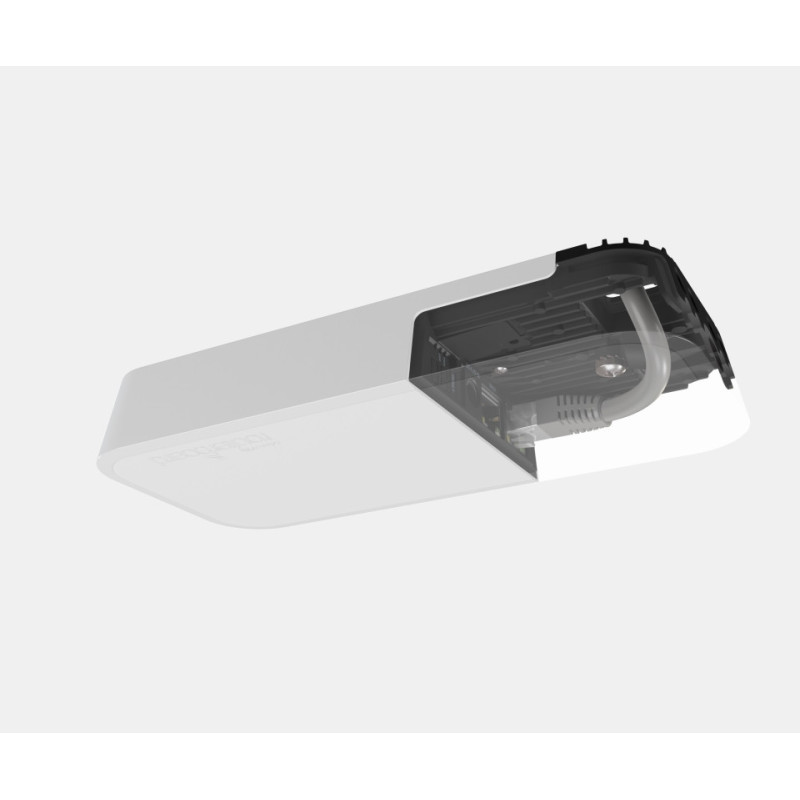

Stealth Design Structure - Weatherproof and Vandal Resistant wAP ax is designed to blend into any environment. Its simple, elegant design does not attract unnecessary attention, making it perfect for both public spaces and private properties. wAP can be securely mounted to any exterior wall or roof, using the opening at the back to allow the Ethernet cable to be routed directly through the wall, making the device even more stealthy and secure.
| Product code | wAPG-5HaxD2HaxD |
| Architecture | ARM |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| RAM size | 256MB |
| Storage size | 128MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 574 Mbps |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | IPQ-5010 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 2400 Mbps |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 7 |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX3000 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 2 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |

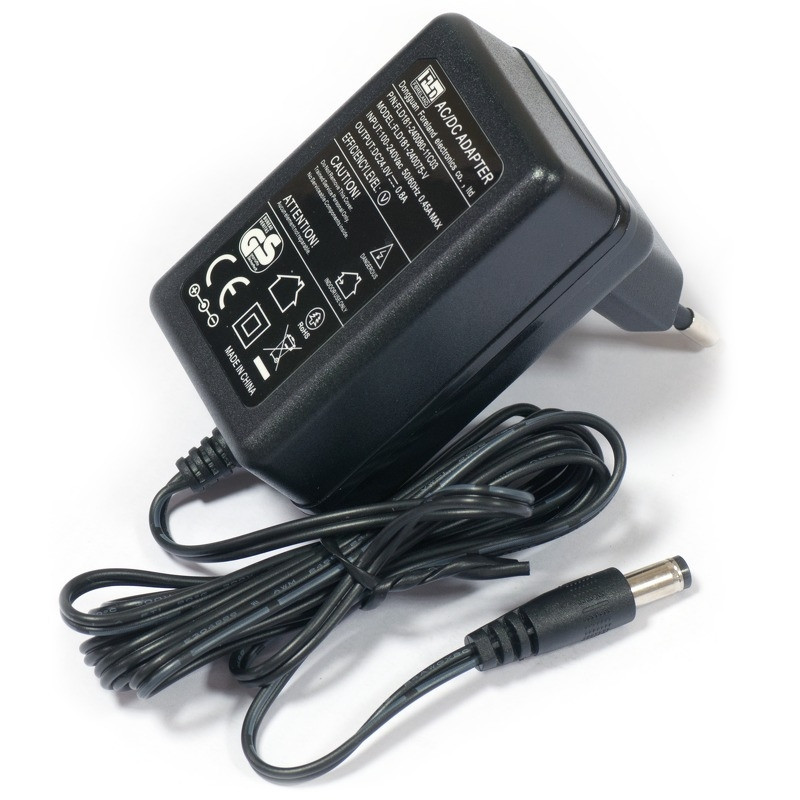

| DC jack input Voltage | 12-57V |
| Max power consumption | 9W |
| Max power consumption without attachments | 9W |
| Cooling type | Passive |

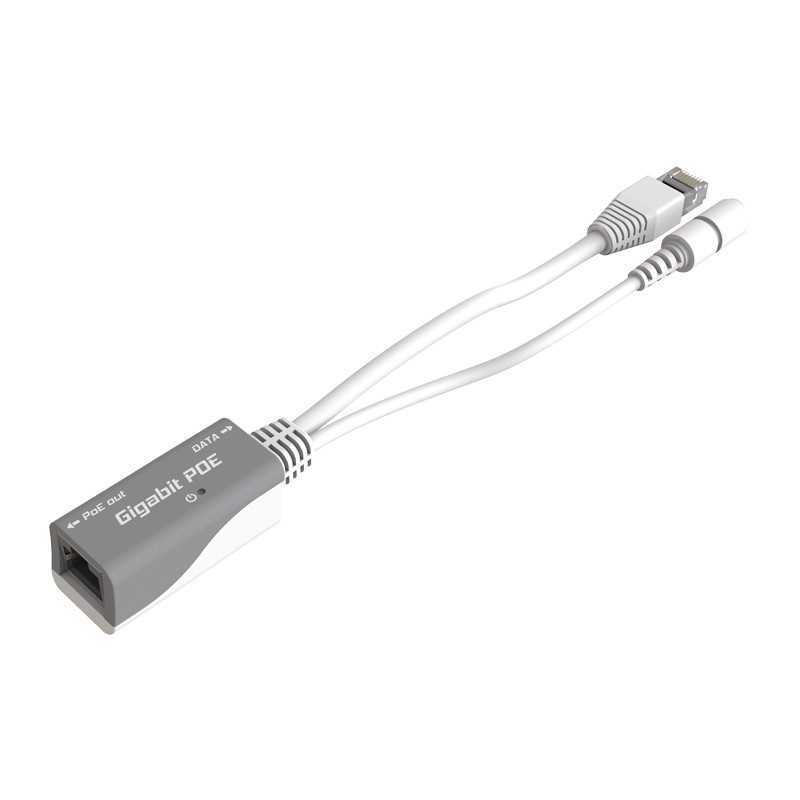

| PoE in | 802.3af/at |
| PoE input voltage | 18-57 V |
Certifications Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 54 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
