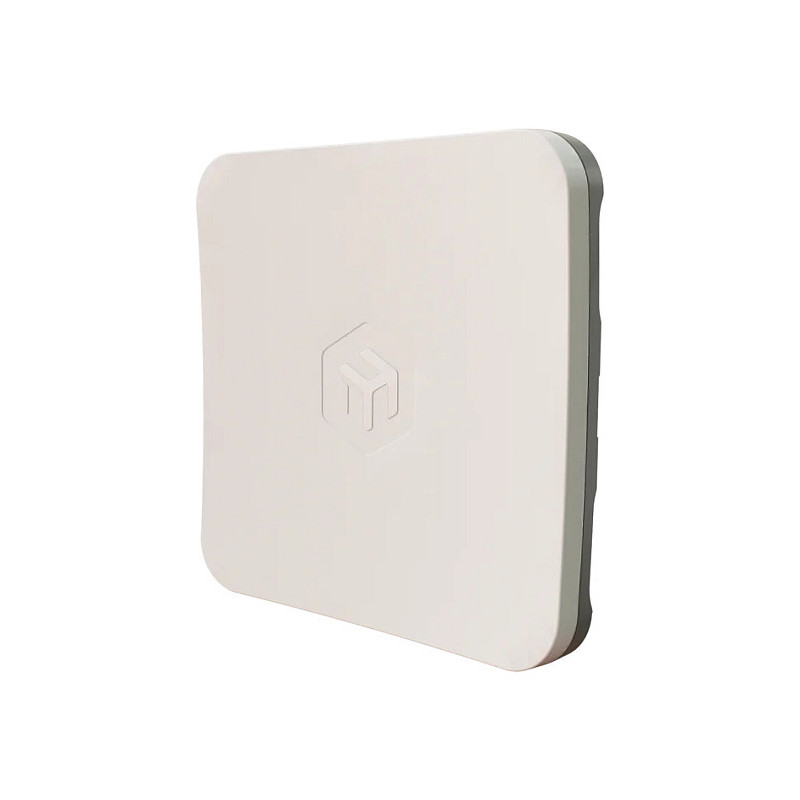

Mikrotik SXTSQ-5AXD wireless access point

Mikrotik SXTSQ-5AXD. 5 GHz, 6 GHz, Maximum data transfer rate: 1200 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 6 W

A compact outdoor Wi-Fi 6 CPE with a powerful 16 dBi antenna, AP mode, and multiple mounting options - perfect for masts, poles, or rooftop deployments.

ARM dual-core + Wi-Fi 6
Despite the upgrade to Wi-Fi 6 and a modern ARM-based dual-core CPU, this unit keeps the same price point as our previous Wi-Fi 5 model — making it one of the best-value weatherproof CPEs on the market.

Weatherproof

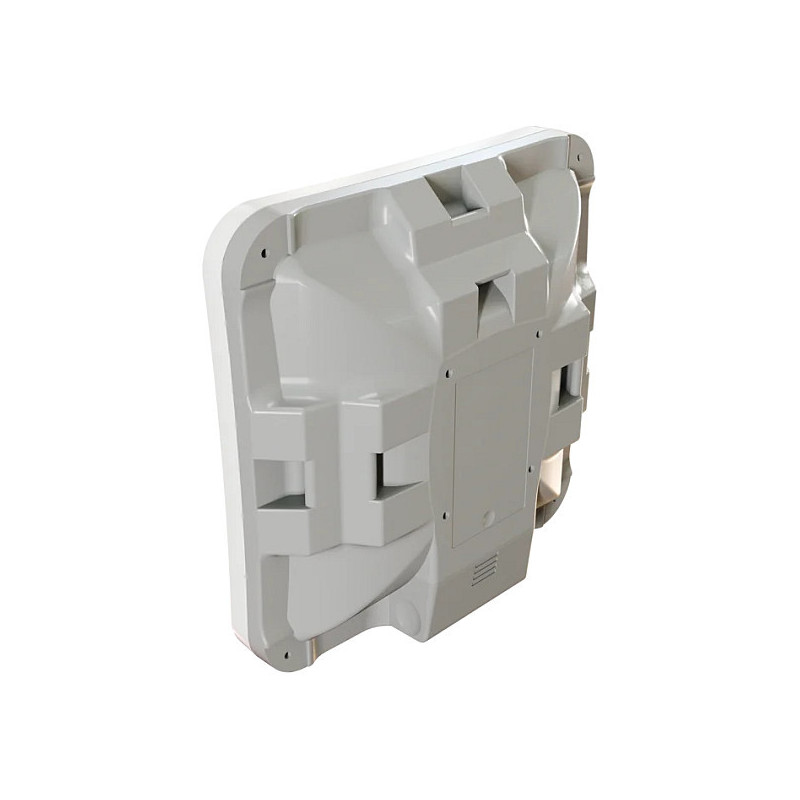

The enclosure can withstand all sorts of unpredictable weather hazards, and it features slots for directly attaching a hose clamp in three different mounting positions, including support for horizontal railings — ideal for masts and poles in rooftop or tower deployments.

3 to 10+ km
Field-tested up to 3 km in high-interference, urban scenarios. Designed with the same trusted long-range architecture as previous SXT models — capable of 10+ km links in line-of-sight deployments.

Pair a mANTBox ax 15s as your uplink with several SXTsq 5 ax units - and you've got everything you need to become the village ISP! No need to wait for large ISPs to reach you.

With RouterOS license level 4, the SXTsq 5 ax isn't just a client — it can also be configured as a powerful access point, giving you more flexibility in planning your wireless infrastructure. And thanks to its compact square shape, it fits neatly into even the most space-sensitive deployments.

Features

Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate: 1200 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Power

Feature: Power over Ethernet (PoE)
AC input voltage: 12 - 28 V
Power consumption (max): 6 W

Design

Product colour: White
International Protection (IP) code: IP55

Antenna

Antenna type: Internal
Antenna gain level (max): 16 dBi

Performance

Feature: Built-in processor
Processor frequency: 800 MHz
Flash memory: 128 MB
Internal memory: 256 MB
Operating system installed: RouterOS

Certificates

Certification: CE, FCC, IC, EAC, ROHS

Operational conditions

Operating relative humidity (H-H): -40 - 70%
