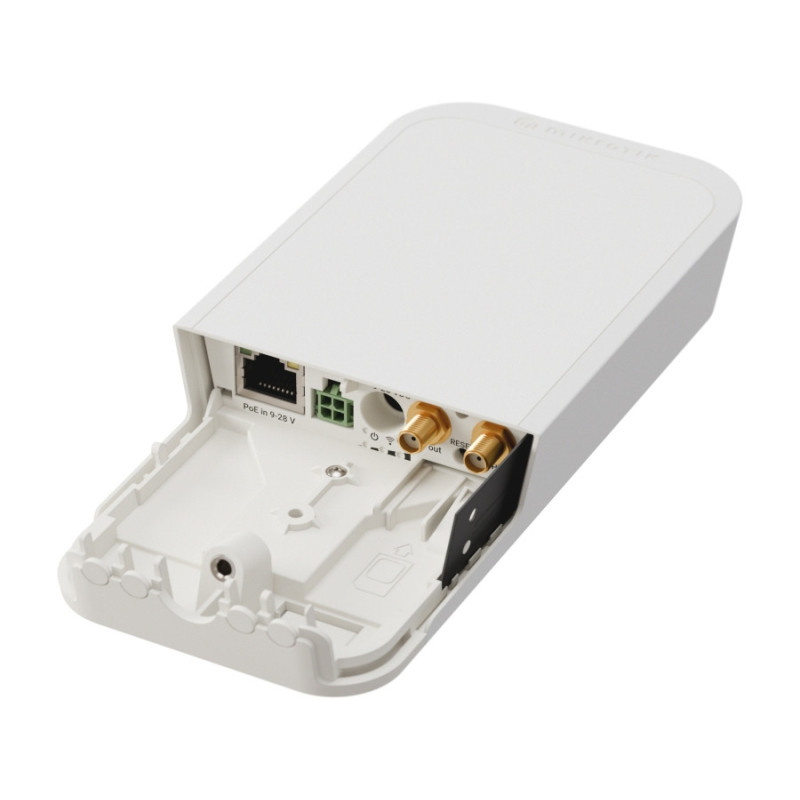

A compact, weatherproof outdoor gateway forLoRa® technology. The updated868MHz LoRa® moduledelivers enhanced Rx sensitivity, extending your range and improving reliability—even in rough conditions. This versatile device also includes:
- Built-in GPS
- A 2.4 GHz WiFi interface and Ethernet port for seamless integration
- Durable design, tested to perform in various weather conditions
The Things Network
Mikrotik products forLoRa®are ready to work with 'The Things Network' - the famous open source infrastructure that provides free LoRa® network coverage and has tons of apps for your needs. With the help of 'The Things Network' you can get started with the Internet-of-things within a day. And it is easily upgradable to enterprise-grade network'The Things Industries'.
The setup is so easy - anyone can learn it. No need to reinvent the wheel, join 'The Things Network' to save time and energy with smart solutions!
| Product code | RBwAPR-2nDR11e-LR8G |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 600MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| RAM size | 64MB |
| Storage size | 16MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |

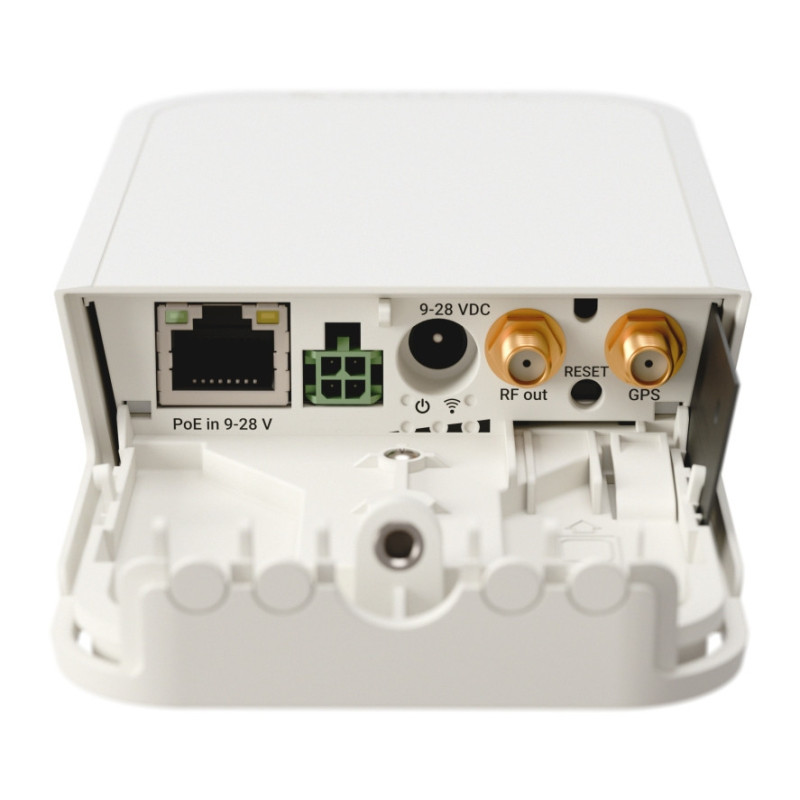

Powering
| Details | |
|---|---|
| Number of DC inputs | 3 (Automotive, DC jack, PoE-IN) |
| DC jack input Voltage | 9-30V |
| Automotive input Voltage | 12-30V |
| Max power consumption | 5W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE input voltage | 9-30V |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbps |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) !!! Modem not included) !!! |
| MiniPCI-e slots | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| GPS RF connector type | uUFL |
Certifications Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 54 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54Mbps | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
Included parts

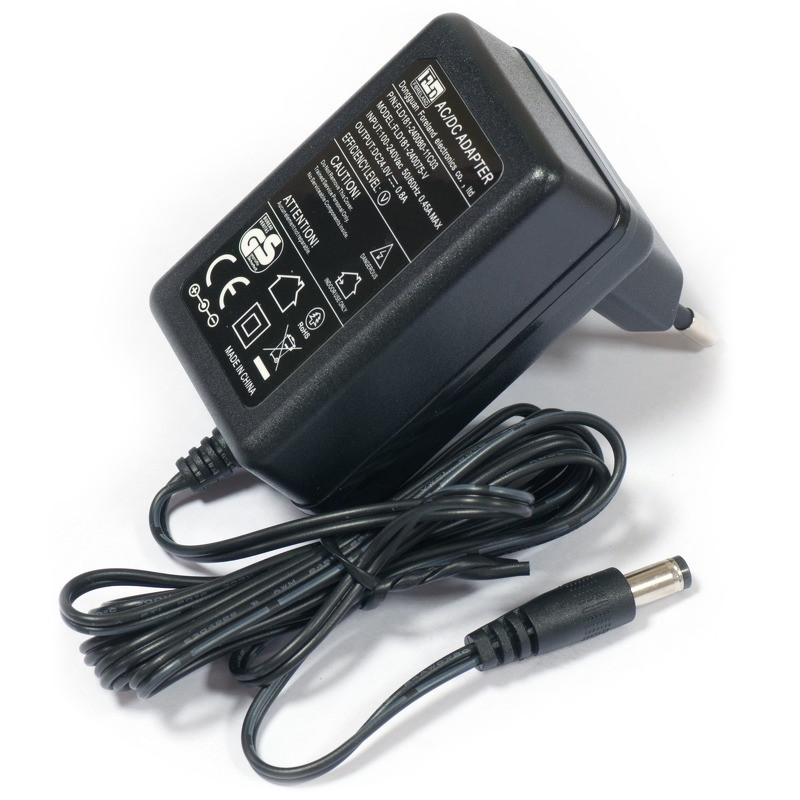

24V 0.8A power adapter

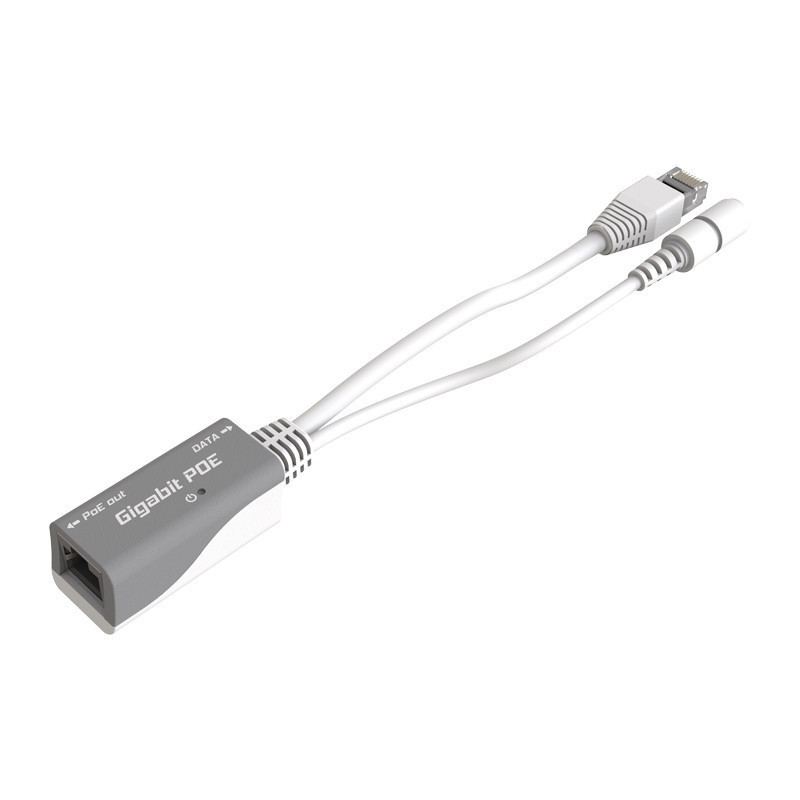

Gigabit PoE injector
k-52 fastening set
wAP desktop stand
wAP ceiling mount bracket
Metal ring (one)
