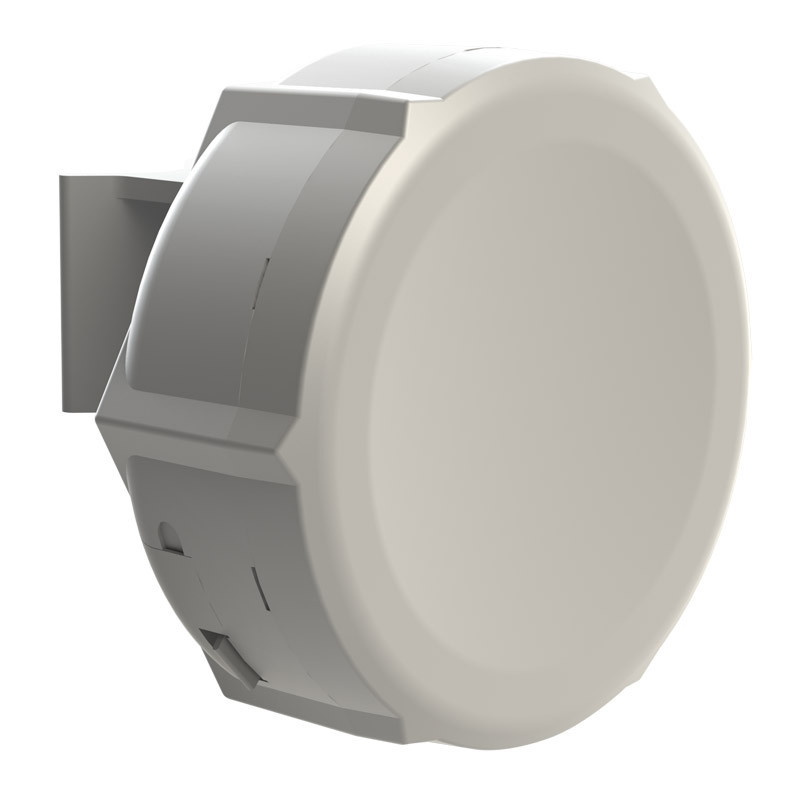

MIKROTIK RouterBOARD SXT SA5 ac

The new AC standard is here, with up to 866 Mbit over the air data rate, 256-QAM modulation, and 80 MHz channels. 802.11ac opens up new possibilities and speeds never possible before.

The SXT ac is a new member in our 802.11ac product lineup, currently two models are available — with a regular 28 degree antenna, and the SA model with a 90 wide beamwidth sector antenna. Also supports 802.11a/n mode and is compatible with all legacy RouterBOARD devices, including Nstream and NV2 protocols. Both devices come with Gigabit Ethernet.

• 1300mW RF output • extended temperature range -30C to +80C • up to 540Mbps throughput • low latency Point to Point

Product code RBSXTG-5HPacD-SA CPU nominal frequency 720 MHz CPU core count 1 Size of RAM 128 MB 10/100 Ethernet ports None 10/100/1000 Ethernet ports 1 MiniPCI slots 0 MiniPCI-e slots 0 Wireless chip model QCA9882-BR4A-R Wireless standards 802.11ac Number of USB ports 1 Power Jack 0 PoE in 802.3at Voltage Monitor Yes CPU temperature monitor No PCB temperature monitor Yes License level 4 Antenna gain DBI 13 Current Monitor No CPU QCA9557-AT4A-R Max Power consumption 12 W SFP ports None SFP+ ports None USB slot type USB type A Supported Voltage 15-60V Number of chains 2 Serial port None
