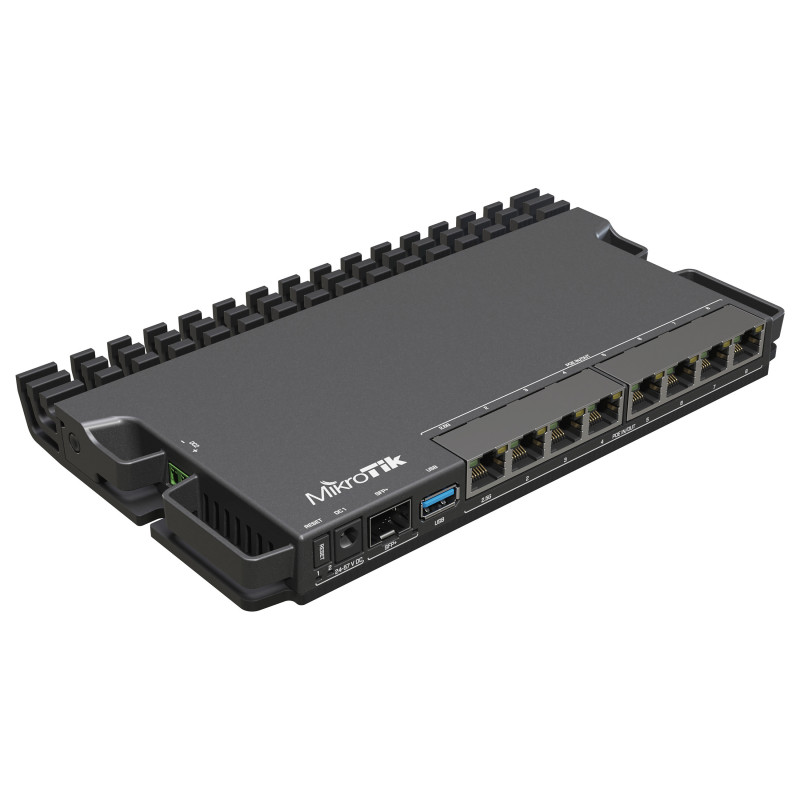

Mikrotik RB5009UG+S+IN wired router

Mikrotik RB5009UG+S+IN. Networking standards: IEEE 802.3af, IEEE 802.3at, Ethernet interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. USB version: 3.2 Gen 1 (3.1 Gen 1). Compliance certificates: RoHS. Mean time between failures (MTBF): 200000 h, Certification: CE, EAC, ROHS. Product colour: Black
Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

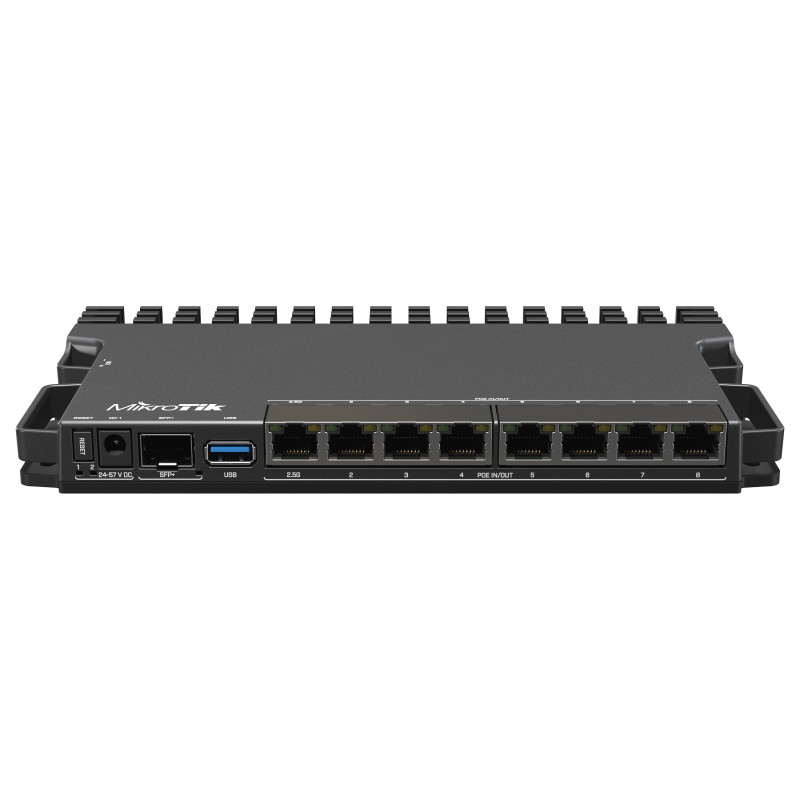

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board - so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.

WAN connection

Ethernet WAN: Yes

Network

Networking standards: IEEE 802.3af, IEEE 802.3at
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s

Mobile network

Mobile network generation: Not supported

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Gigabit Ethernet (copper) ports quantity: 7
Power over Ethernet (PoE) ports quantity: 1
Installed SFP+ modules quantity: 1
USB ports quantity: 1
USB version: 3.2 Gen 1 (3.1 Gen 1)
DC-in jack: Yes

Certificates

Compliance certificates: RoHS

Features

Mean time between failures (MTBF): 200000 h
Certification: CE, EAC, ROHS

Design

Product colour: Black

Power

Power consumption (typical): 20 W
Power source type: DC
Power over Ethernet (PoE): Yes

Operational conditions

Storage temperature (T-T): -40 - 60 °C

Logistics data

Harmonized System (HS) code: 85176990
