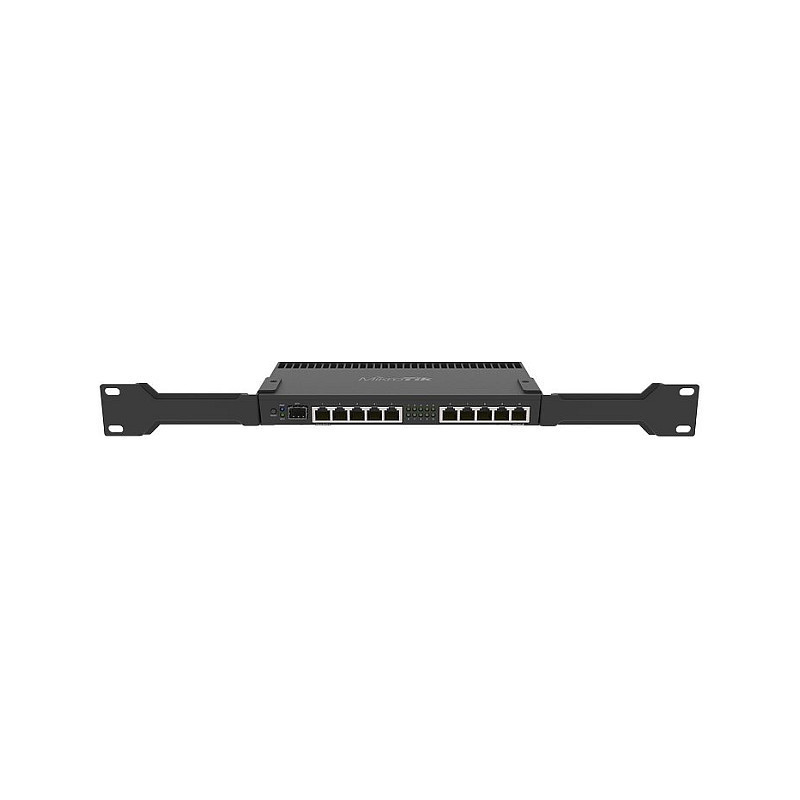

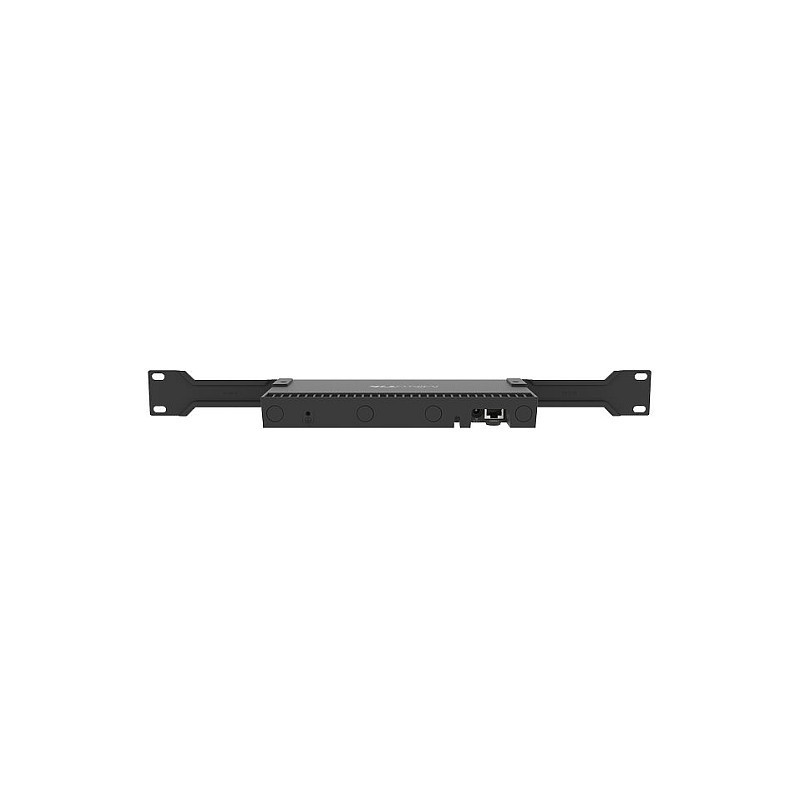

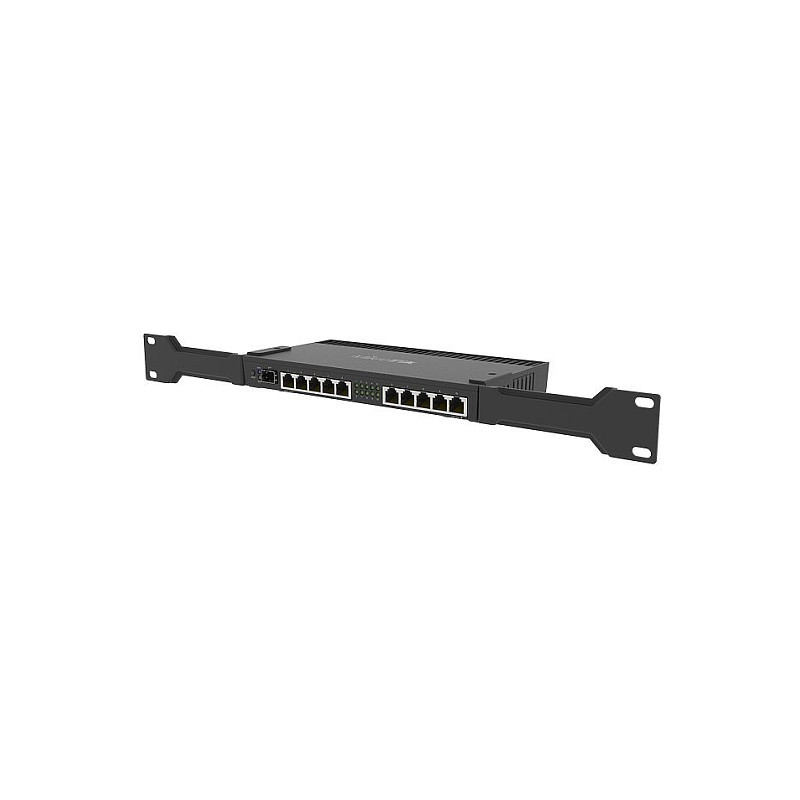

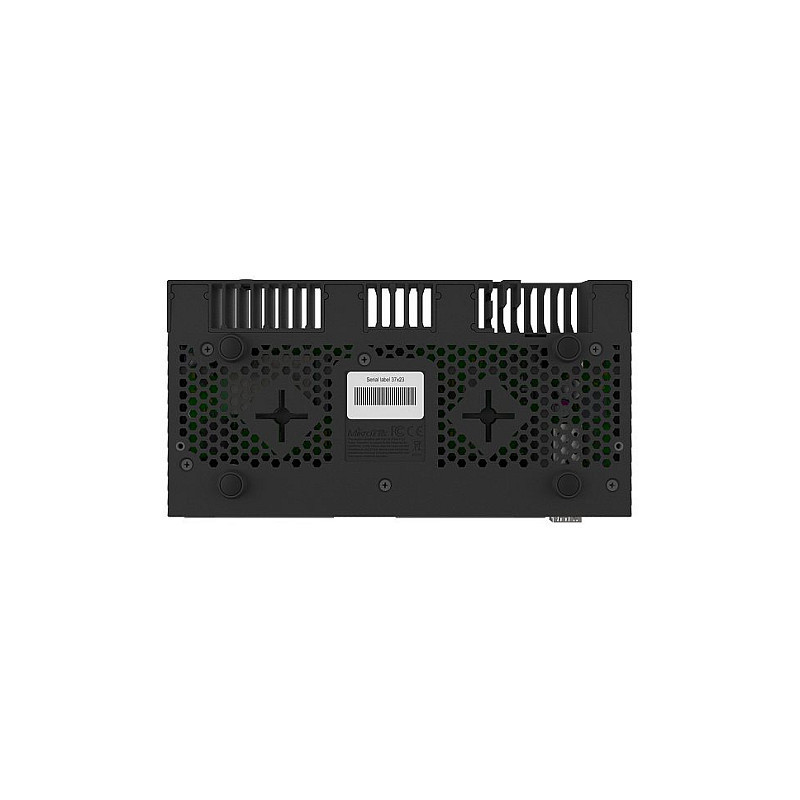

Mikrotik RB4011IGS+RM wired router

Mikrotik RB4011IGS+RM. Networking standards: IEEE 802.3at, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Security algorithms: 128-bit AES, 256-bit AES, SHA-1, SHA-256. Processor model: Annapurna Labs Alpine AL21400, Processor frequency: 1400 MHz, Storage media: Flash. Product colour: Black, Rack capacity: 1U. Power consumption (typical): 33 W, Power source type: DC, PoE, Output voltage: 57 V

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

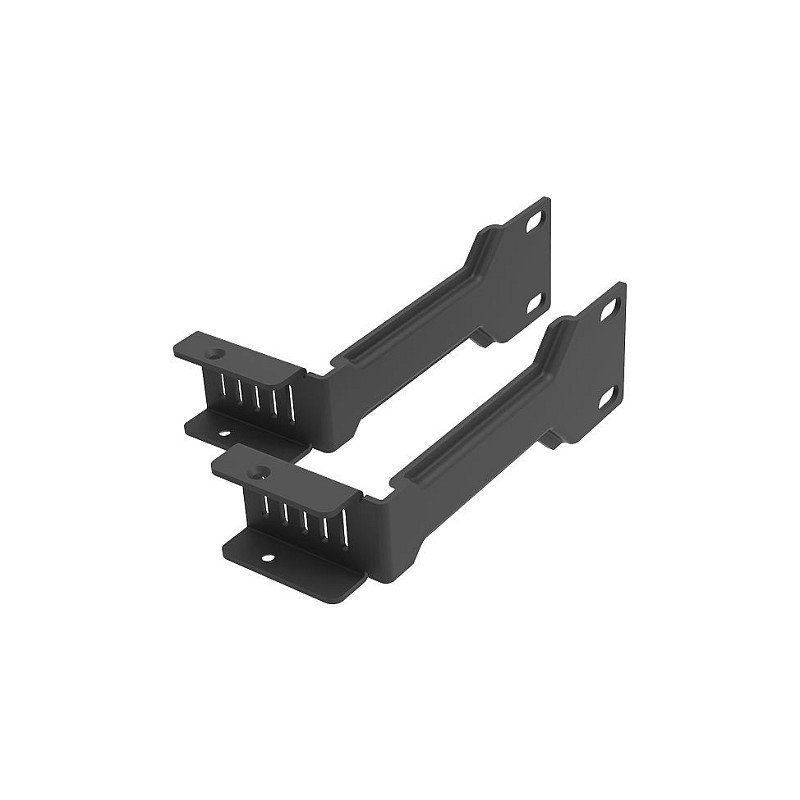

RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.

WAN connection

Feature: Ethernet WAN

Network

Networking standards: IEEE 802.3at
Ethernet interface type: Gigabit Ethernet
Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s

Management features

Feature: Reset button

Ports & interfaces

Ethernet LAN (RJ-45) ports: 10
Power over Ethernet (PoE) ports quantity: 2
Installed SFP+ modules quantity: 1
Serial ports quantity: 1
Feature: DC-in jack

Security

Security algorithms: 128-bit AES, 256-bit AES, SHA-1, SHA-256

Packaging content

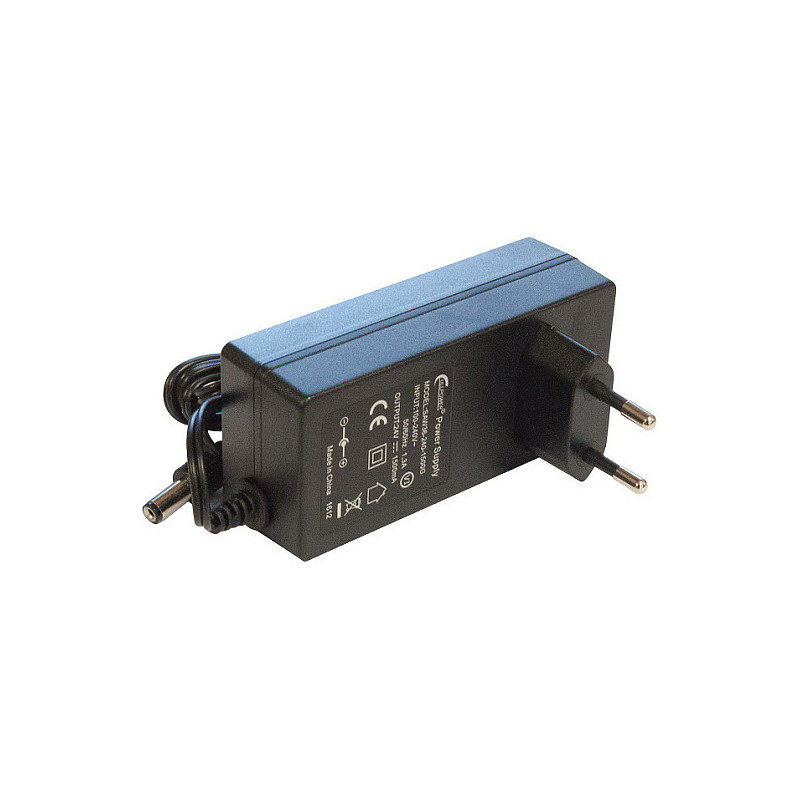

Feature: AC adapter included

Features

Feature: Built-in processor
Processor model: Annapurna Labs Alpine AL21400
Processor frequency: 1400 MHz
Processor cores: 4
Storage media: Flash
Internal storage capacity: 0.5 GB
Internal memory: 1024 MB
Feature: Voltage monitoring
Feature: Temperature monitoring
License level: 5
Operating system installed: RouterOS

Design

Product colour: Black
Feature: Rack mounting
Rack capacity: 1U
LED indicators: Yes

Power

Power consumption (typical): 33 W
Power source type: DC, PoE
Output voltage: 57 V
Output current: 0.6 A
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 228 mm
Depth: 120 mm
Height: 30 mm

Logistics data

Harmonized System (HS) code: 85176990

Other features

Input voltage: 12 - 57 V
