Mikrotik RB1100AHx4 wired router

Mikrotik RB1100AHx4. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Cables included: AC. Processor model: Annapurna Labs Alpine AL21400, Processor frequency: 1400 MHz, Storage media: Flash. Product colour: Stainless steel, Rack capacity: 1U, LED indicators: Activity, Fault. Power consumption (typical): 20 W, Power source type: AC, DC, PoE, AC input voltage: 100 - 240 V

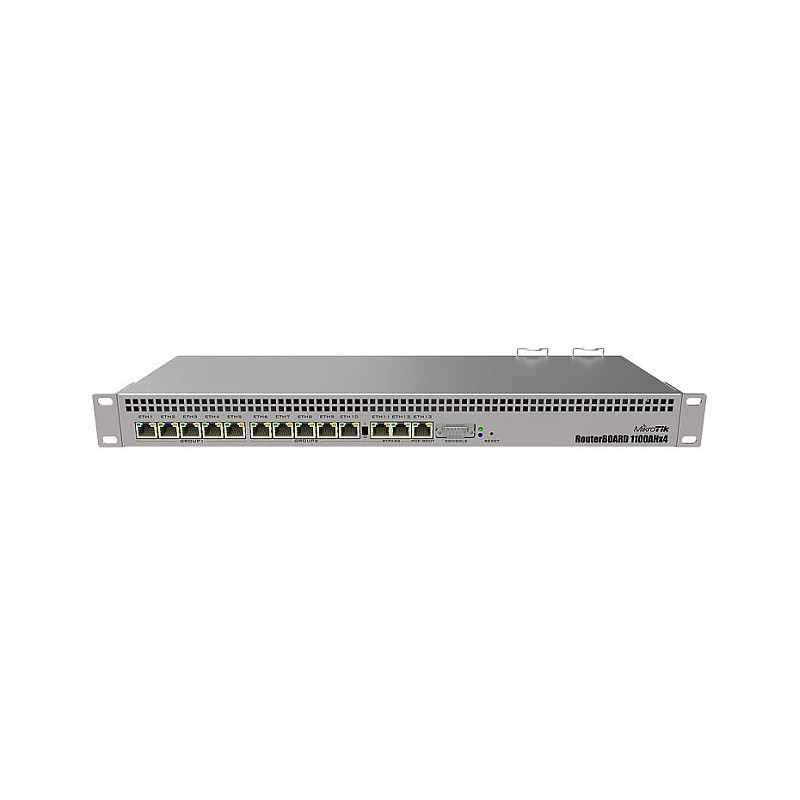

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

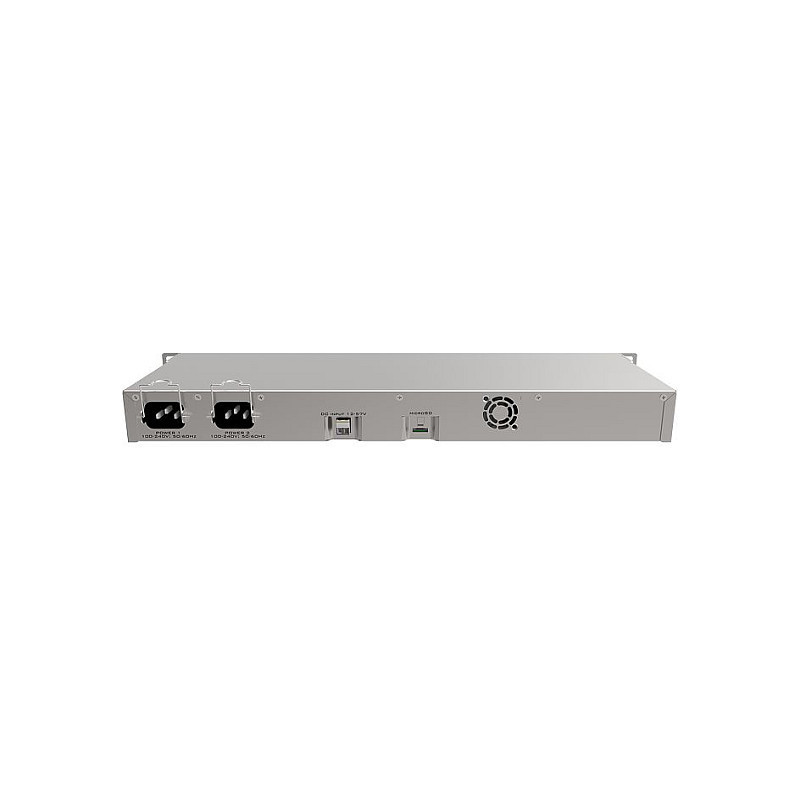

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

WAN connection

Feature: Ethernet WAN

Network

Ethernet interface type: Gigabit Ethernet
Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Throughput: 7.5 Gbit/s

Management features

Feature: Web-based management
Feature: Firmware upgradeable

Ports & interfaces

Ethernet LAN (RJ-45) ports: 13
RS-232 ports: 1
Feature: DC-in jack

Security

Feature: IP address filtering

Packaging content

Cables included: AC

Features

Feature: Built-in processor
Processor model: Annapurna Labs Alpine AL21400
Processor frequency: 1400 MHz
Processor cores: 4
Storage media: Flash
Flash memory: 128 MB
Internal memory: 1000 MB
Compatible memory cards: MicroSD (TransFlash)
Feature: Voltage monitoring
Feature: Temperature monitoring
Operating system installed: RouterOS

Design

Product colour: Stainless steel
Feature: Rack mounting
Rack capacity: 1U
LED indicators: Activity, Fault

Antenna

Antenna type: Not supported

Power

Power consumption (typical): 20 W
Power source type: AC, DC, PoE
AC input voltage: 100 - 240 V
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 444 mm
Depth: 148 mm
Height: 47 mm

Logistics data

Harmonized System (HS) code: 85176990
