MIKROTIK Powerful 60 GHz 802.11ay Sector Antenna CubeSA 60Pro ac
MIKROTIK Powerful 60 GHz 802.11ay Sector Antenna CubeSA 60Pro ac
Guarantee
12 month
Delivery from Lithuania in
2 - 3
business days
Forget wires - 60 GHz solutions provide speed and stability similar to fiber, and save time and money on installation and maintenance.
Our new Cube 60Pro product line takes the benefits of 60 GHz networking even further - using the 802.11ay standard to achieve greater distances, greater stability, speed and convenience.

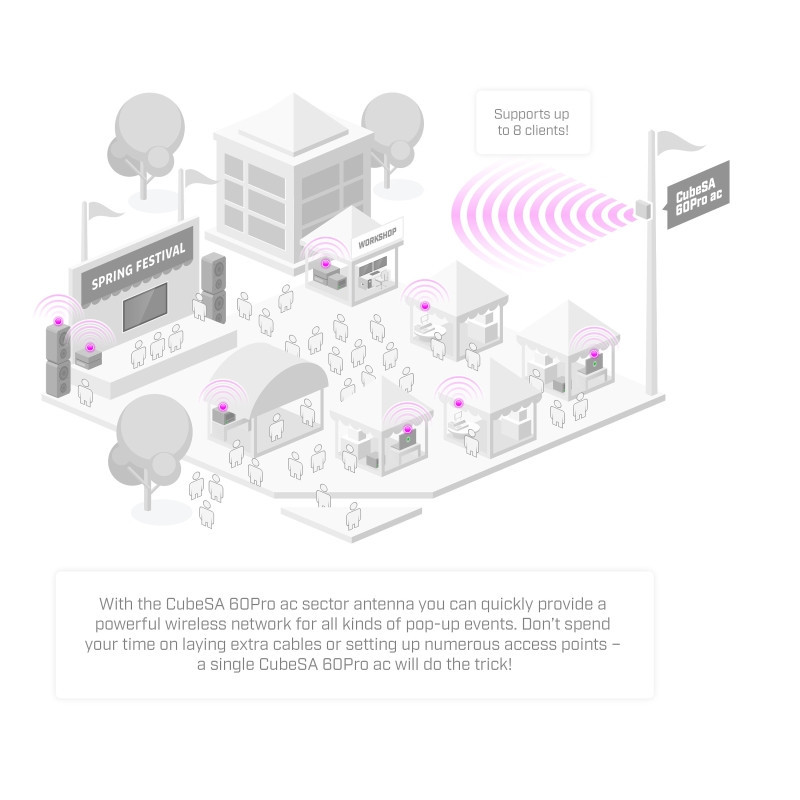

If you need to connect multiple devices, check outCubeSA 60Pro ac sector antenna. This device, operating in point-to-multipoint mode, reaches a distance of about 600 meters, making it very suitable for various event management solutions: from live broadcasts, festivals and seminars to construction sites, temporary vaccination clinics, etc. No more complicated wired installations at each location - the portable and compact CubeSA 60Pro ac will take care of everything! Depending on the configuration, the distance can be even greater. For example, with devices such as MikroTik nRAY you can reach up to 800 meters.
Forget downtime with automatic 5GHz fallback capabilities
The 60 GHz frequency is not affected by the crowded wireless spectrum and offers high speed and capacity. However, it can sometimes encounter problems in poor weather conditions. That's why both Cube 60Pro devices have an automatic 5 GHz fallback connection. We installed a powerful directional antenna so that the 5 GHz connection can reach the same speed as 60 GHz.
More resilience, less unnecessary attention
We've updated the body of the device to be made of stronger metal for better mounting and cooling capabilities. The cube-shaped design is purely practical: it's sturdy, unobtrusive, and compact.
| Product code | CubeG-5ac60ay-SA |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 716MHz |
| Dimensions | 115 x 211 x 90 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| RAM size | 256MB |
| Storage size | 64MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 13W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE input voltage | 18-48V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 433 Mbps |
| Wireless 5 GHz number of chains | 1 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 11.5 |
| Wireless 5 GHz chip model | IPQ4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| GNSS standards | GPS |
Certifications Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 5GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 22 | -93 |
| 54Mbps | 18 | -74 |
| MCS0 | 22 | -93 |
| MCS7 | 17 | -71 |
| MCS9 | 15 | -68 |
