MIKROTIK Point-to-point 60 GHz 802.11ay CPE Cube 60Pro ac
MIKROTIK Point-to-point 60 GHz 802.11ay CPE Cube 60Pro ac





MIKROTIK Point-to-point 60 GHz 802.11ay CPE Cube 60Pro ac
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
Forget the days of relying on wires for speed and stability. 60 GHz technologies offer the speed and stability of fiber, saving time and money on installation and maintenance. Our new Cube 60Pro product line takes 60 GHz networking even further with the 802.11ay standard, achieving greater distances, greater stability, speed and convenience.

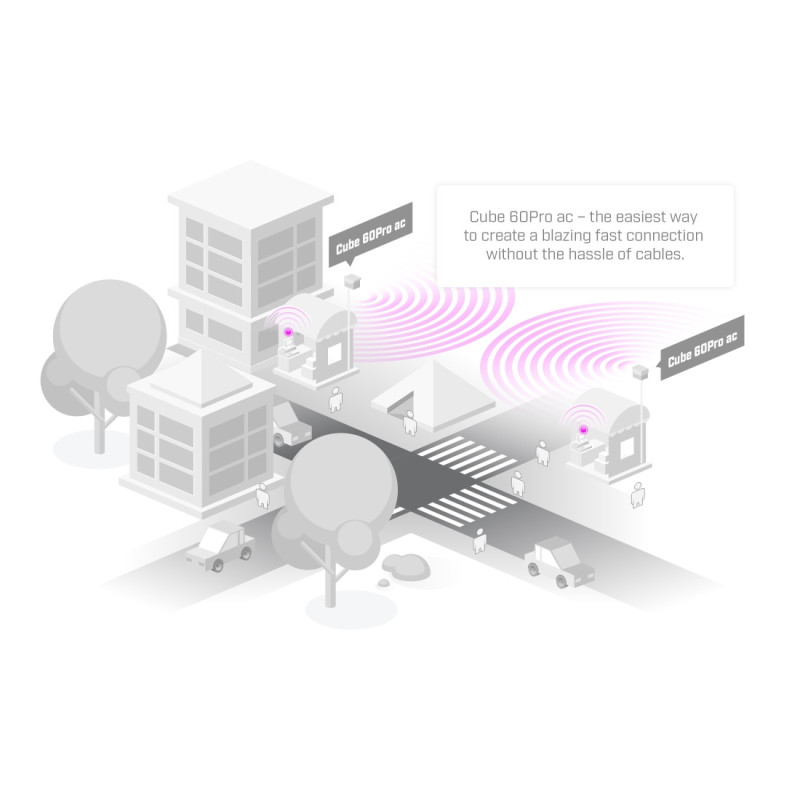

The Cube 60Pro ac CPE allows you to create ultra-fast point-to-point connections up to 1 km away. And that's not all - we've added Channel 5* support, so you can reach even greater distances if needed. In our tests, the Cube 60Pro ac easily maintained a reliable connection over 2.4 km. Networking between two locations has never been easier!
You can purchase a pre-configured set of two Cube 60Pro ac devices - Wireless Wire Cube Pro. Simply point the Cube devices at each other and turn them on! They will create a fast, encrypted wireless connection. It's a true 'plug-and-play' solution!
Forget downtime with automatic 5GHz fallback capabilities
The 60 GHz frequency is not affected by the crowded wireless spectrum and offers high speed and capacity. However, it can sometimes encounter problems in poor weather conditions. That's why both Cube 60Pro devices have an automatic 5 GHz fallback connection. We installed a powerful directional antenna so that the 5 GHz connection can reach the same speed as 60 GHz.
More resilience, less unnecessary attention
Mikrotik has updated the device's body to be made of stronger metal for better mounting and cooling capabilities. The cube-shaped design is purely practical: it is sturdy, unobtrusive and compact.
| Product code | CubeG-5ac60ay |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | auto (448 - 896) MHz |
| Dimensions | 115 x 95 x 82 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| RAM size | 256MB |
| Storage size | 64MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 10W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE input voltage | 18-48V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 433 Mbps |
| Wireless 5 GHz number of chains | 1 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 11.5 |
| Wireless 5 GHz chip model | IPQ4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| GNSS standards | GPS |
Certifications Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 5GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 22 | -93 |
| 54Mbps | 18 | -74 |
| MCS0 | 22 | -93 |
| MCS7 | 17 | -71 |
| MCS9 | 15 | -68 |
