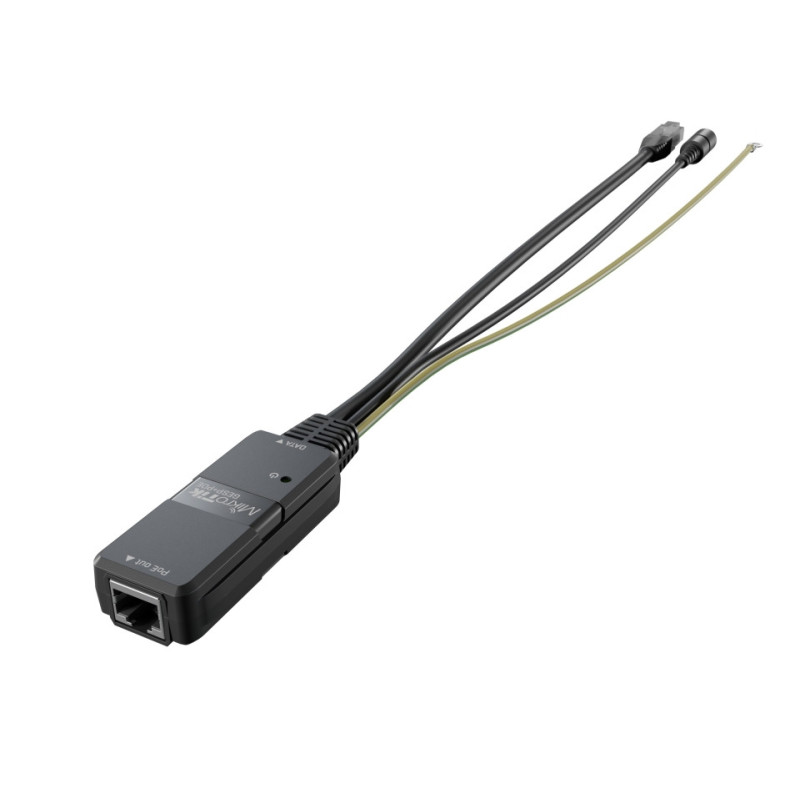

MIKROTIK Passive PoE injector with surge protection
MIKROTIK Passive PoE injector with surge protection


MIKROTIK Passive PoE injector with surge protection
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
You can't buy security, but you can buy MikroTik devices to keep your equipment safe. Take a look at the GESP product line, which includes an updated version of the classic MikroTik GESP surge protector and a brand new device - GESP+POE-IN, a passive PoE injector with surge protection. Together, these two devices provide maximum security and peace of mind.
Here is what a typical use case looks like. You have a mast with antennas and switches on the ground. Install a GESP surge protector on the mast - it is sealed in a new and improved IP67 weatherproof box. Your antennas will now be protected even during a thunderstorm. Install a GESP+POE-IN injector under the mast - it will protect the switches and provide power to the antennas.
Don't forget the ground wire! Connect it to a pole, mast, or any other structure connected to ground. For maximum protection, we recommend using surge protectors at both ends of longer cables.
These small devices can be extremely significant when it comes to protection against lightning strikes or static electricity buildup.

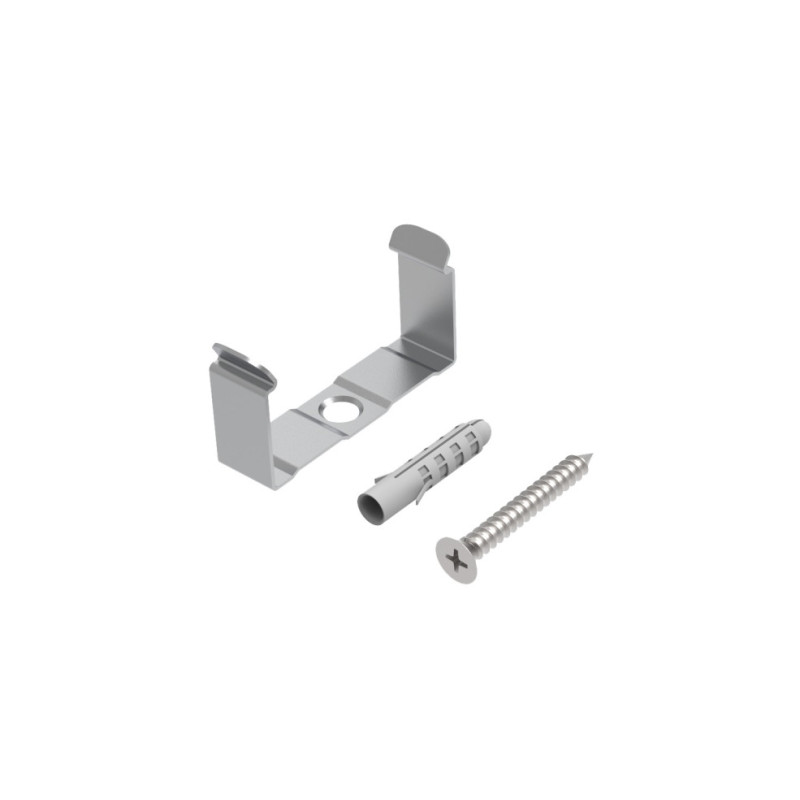

GESP devices usually withstand several shocks, but be sure to check their condition after each surge. We recommend securing GESP devices using PVC fastening straps, but do not tighten them too tightly. As the saying goes - hope for the best, prepare for the worst. This small investment can save a lot of time and money, so why take risks? Get GESP and GESP+POE-IN and feel at peace!
Product code | GESP+POE-IN |
Interface connections | RJ45 Male/Female Connector |
ESD/EMP protection | Absorbing transient current with response to surge voltage of 100 V/s 1 kV/μs ESD, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61643-21, ±8 kV contact, ±15 kV air |
DC spark-over voltage | 75V @ 100V/s |
Maximum impulse spark-over voltage | 700 V @ 1 kV/μs |
Discharge current | 3kA (8/20μs) |
Minimum insulation resistance | 1 G ohm @ 50V |
Maximum capacitance | 4pF @ 1MHz |
Data line protection | RJ45 10/100/1000 Ethernet |
PoE support | Passive PoE |
IP rating | - |
Operating temperature | -40 to 70°C |
