MIKROTIK outdoor wireless device with an integrated antennaSXTsq 5 ac

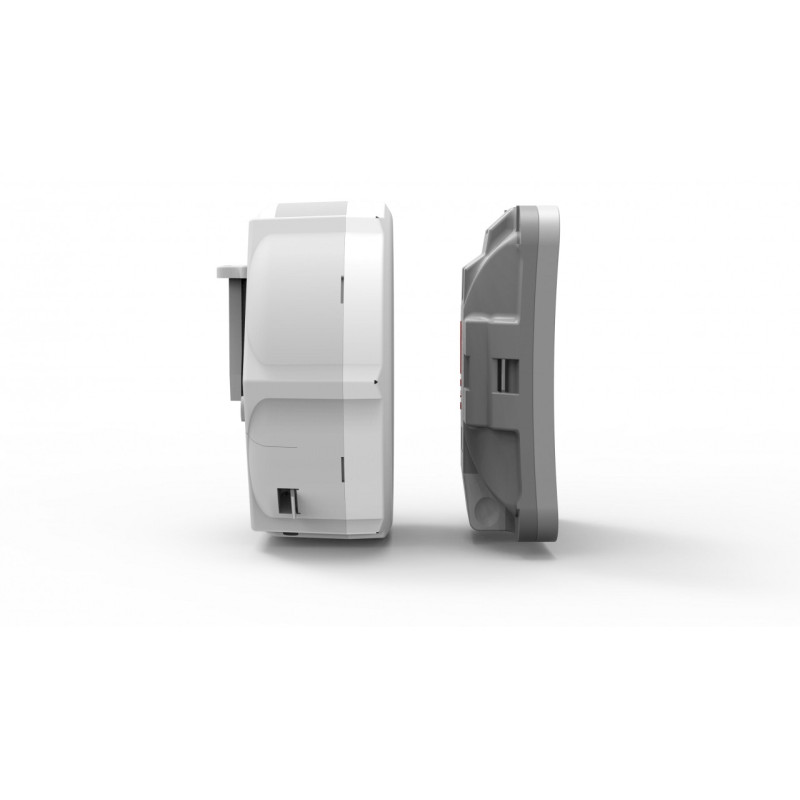

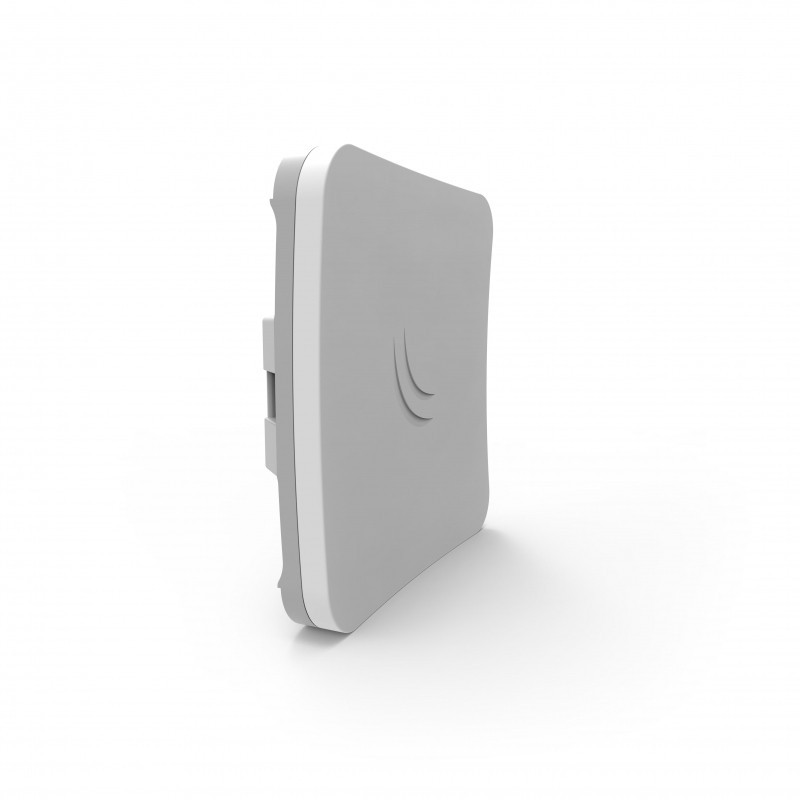

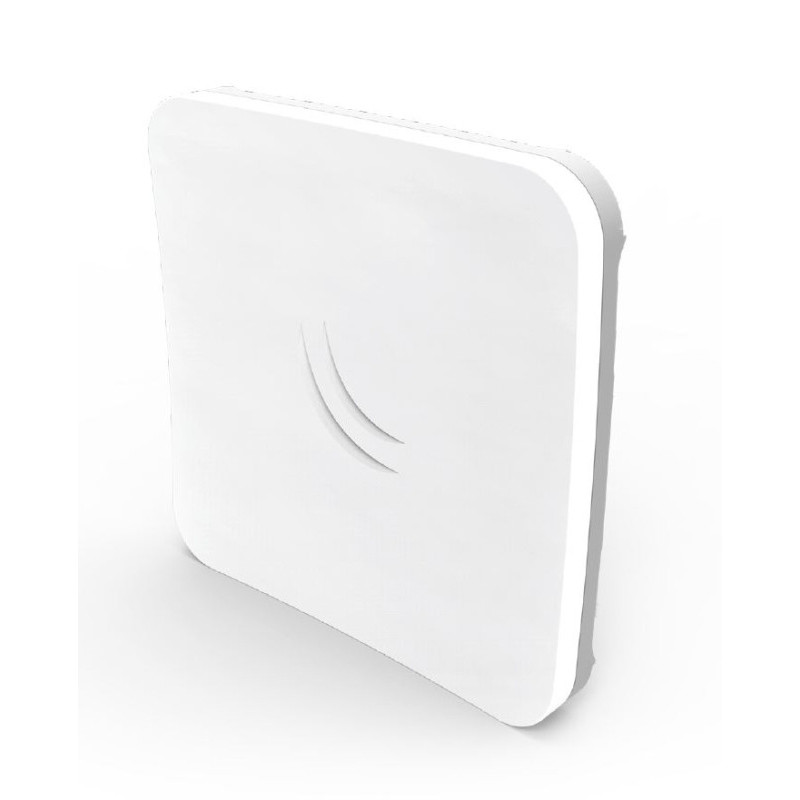

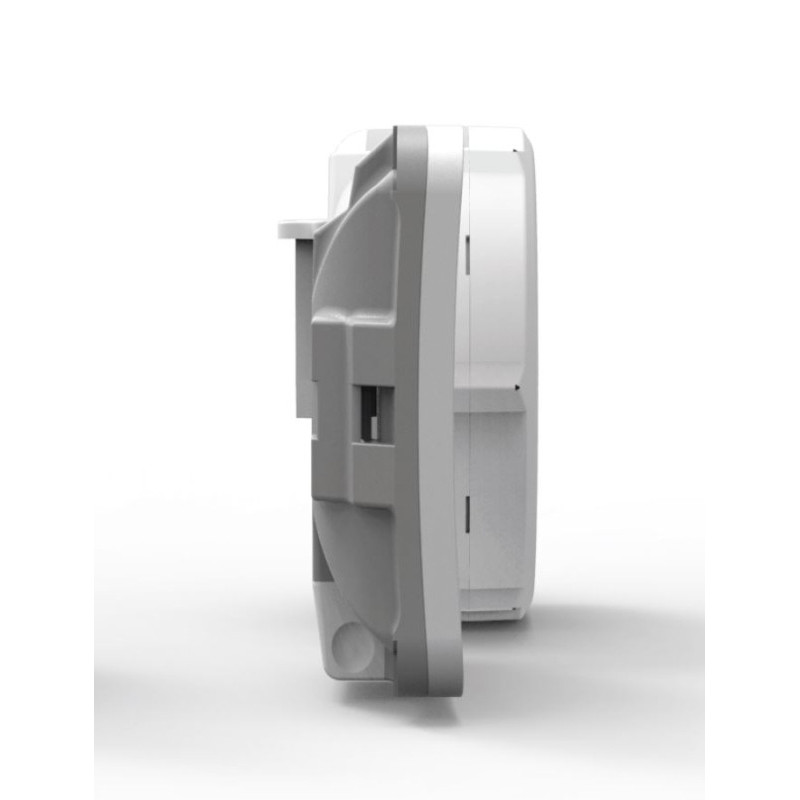

The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize the speeds that the 802.11ac protocol provides.

The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

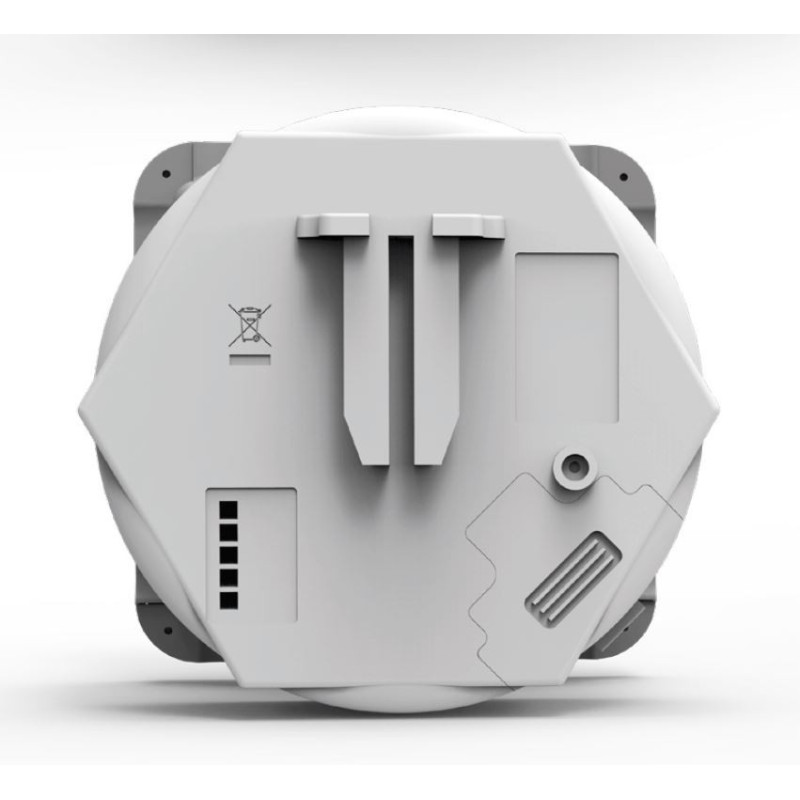

The weatherproof enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with the ability to be mounted on horizontal railings. There is also an easily accessible grounding connection to protect it against lightning.

Product code: RBSXTsqG-5acD CPU: IPQ-4018, 4 cores, nominal frequency 716 MHz Size of RAM: 256 MB Storage: 16 MB Flash 10/100/1000 Ethernet ports: 1 Wireless bands: 5 GHz radio Wireless regulations: Specific frequency range may be limited by country regulations Operating frequency: 5150 - 5875 MHz Protocols: 802.11a/n/ac Chains: 2 Antenna gain: 16 dBi Antenna beam width: 23° Wireless chip model: IPQ-4018 PoE in: Yes Supported input voltage: 10 V - 30 V, passive PoE Ingress protection: IP55 Dimensions: 129 x 129 x 34 mm; package: 255 x 180 x 45 mm Weight Unit: 295 g; package: 492 g Operating temperature: -40 to 70° C Operating System: RouterOS (License level 3) Max Power consumption: 7 W
