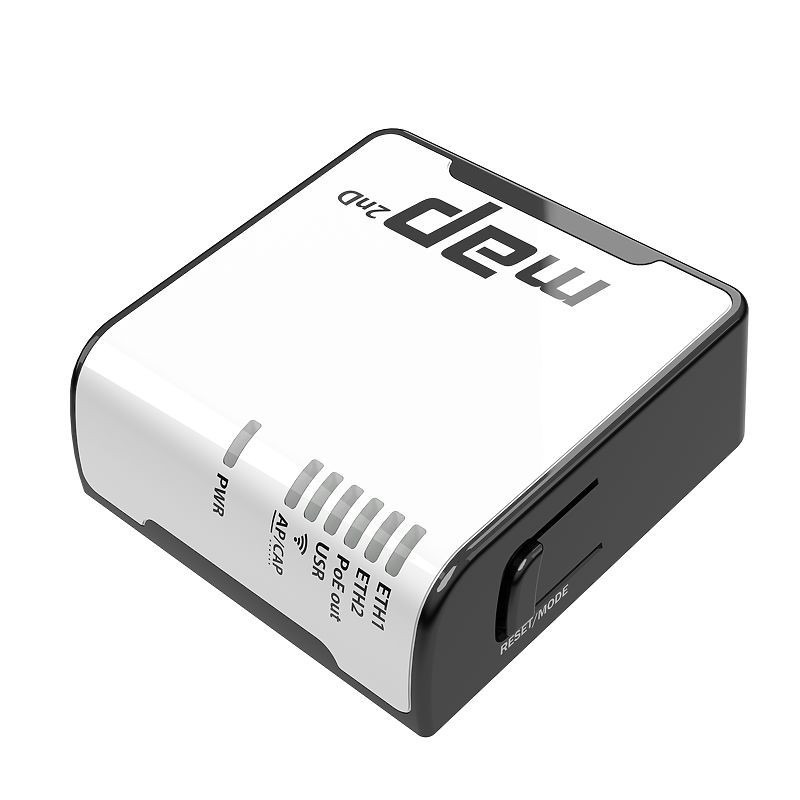

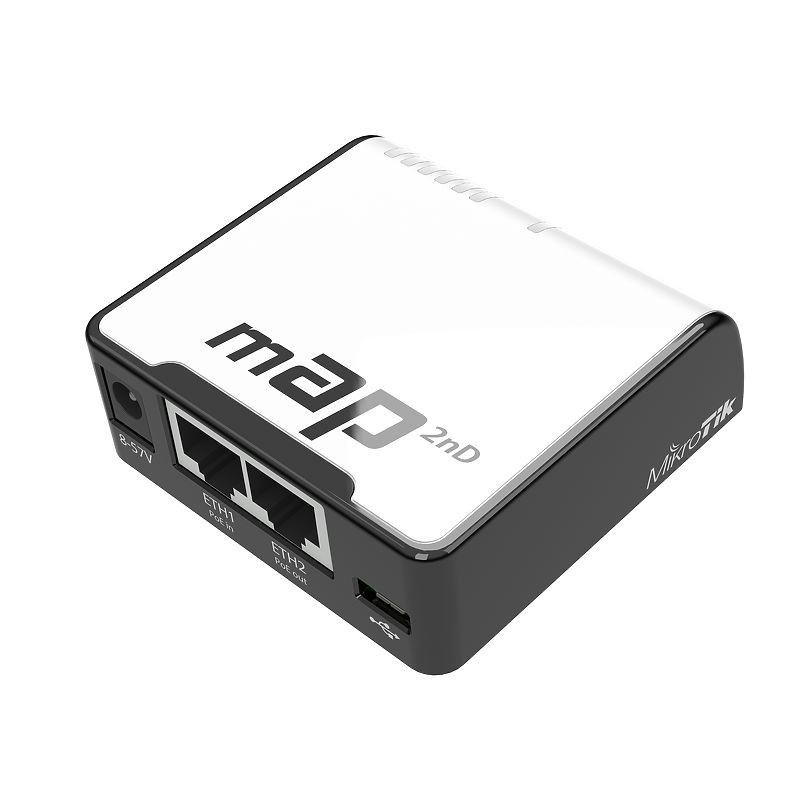

MIKROTIK micro Access Point mAP

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect an SXT CPE device to it.

• PoE in 10-57V • Built in 2.4GHz AP • microUSB for a 3G/4G modem, or for power input • Station or AP mode wireless • Passive PoE output (same as input voltage)

Product code: RBmAP2nD Architecture: MIPSBE CPU: QCA9531 CPU core count: 1 CPU nominal frequency: 650 MHz Dimensions: 68x68x19mm Operating System: RouterOS (License level 4) Size of RAM: 64 MB Storage size: 16 MB Storage type: FLASH Tested ambient temperature: -10C to +70C tested

Powering

Max Power consumption: 5W MicroUSB input Voltage: 5V PoE in: 802.3af/at PoE out: Passive PoE PoE in input Voltage: 12-57 V Number of DC inputs: 3 (DC jack, PoE-IN, MicroUSB) DC jack input Voltage: 8-57 V

Wireless

Wireless 2.4 GHz number of chains: 2 Wireless 2.4 GHz standards: 802.11b/g/n Antenna gain dBi for 2.4 GHz: 1.2 Wireless 2.4 GHz chip model: QCA9531

Ethernet

10/100 Ethernet ports: 2

Peripherals

Number of USB ports: 1 USB Power Reset: Yes USB slot type: microUSB type AB

Other

PCB temperature monitor: Yes Voltage monitor: Yes
