MIKROTIK LHG XL HP5 series extra large high power outdoor wireless CPE, 4 pack

Product reference: 18-RBLHG-5HPnD-XL4pack

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

33647 €

339,87 €

Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 3
business days

Ask about product

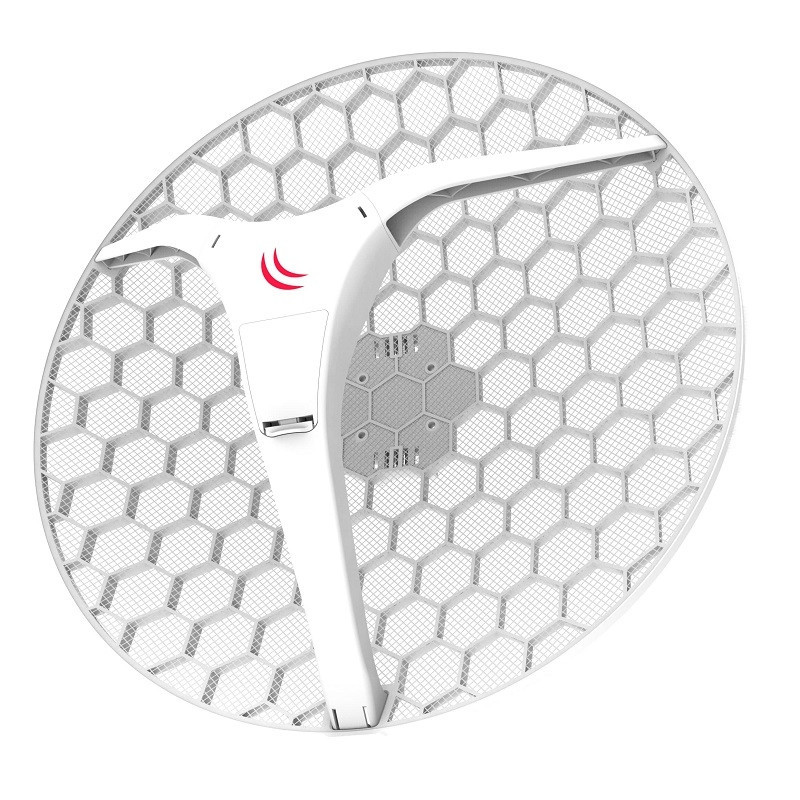

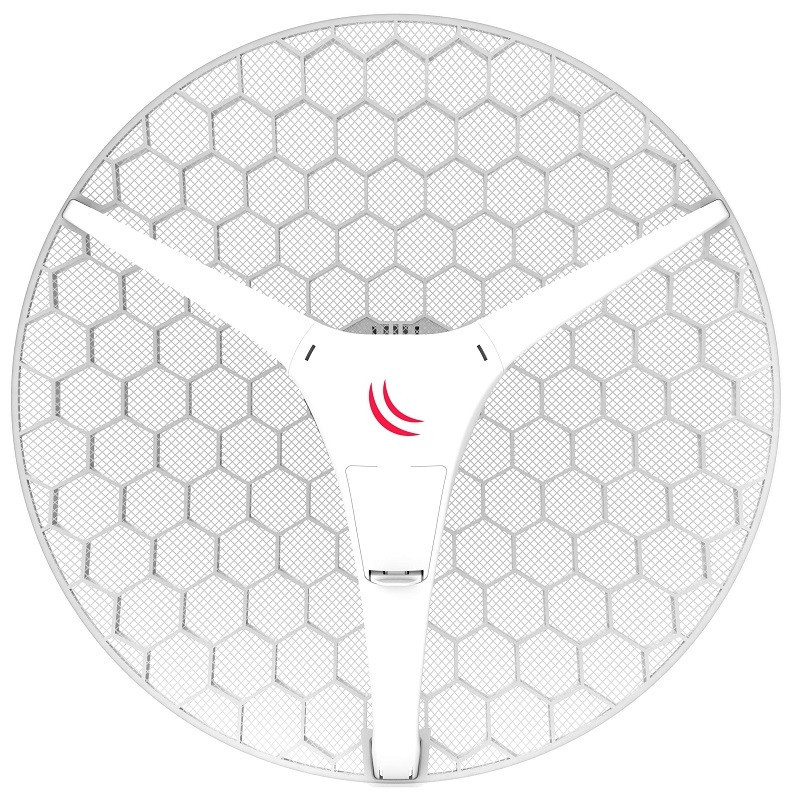

The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power, designed to reach up to 40km in point-to-point setups at full speed.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

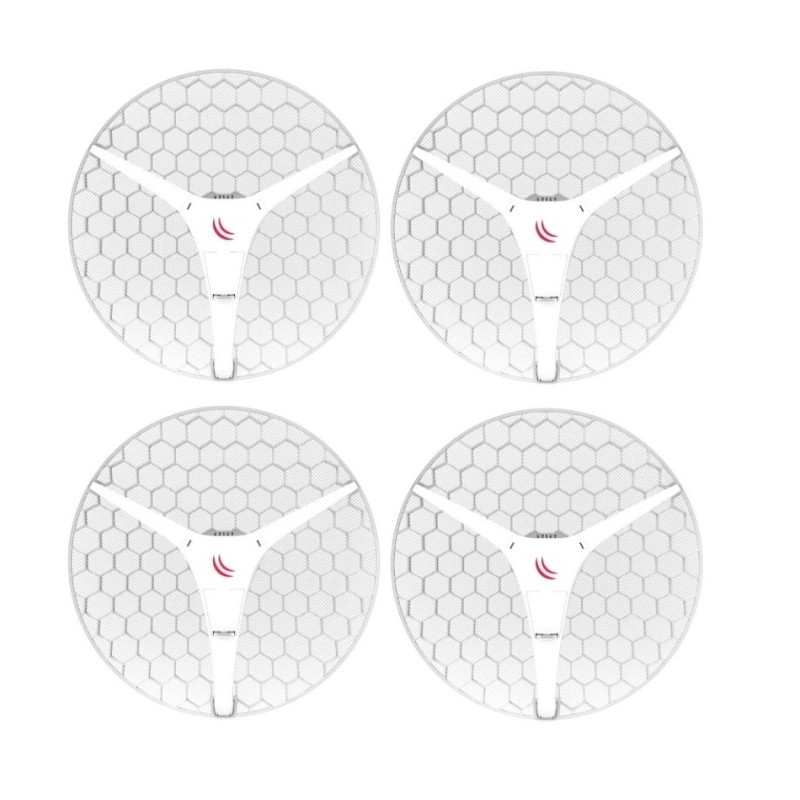

Shipped as a kit of 4 units (RBLHG-5HPnD-XL4pack) - 4 antennas in a single box

Single unit

Product code	RBLHG-5HPnD-XL
Architecture	MIPSBE
CPU	AR9344
CPU core count	1
CPU nominal frequency	600MHz
Dimensions	Ø 550 x 245 mm;
RouterOS license	3
Operating System	RouterOS
RAM size	64MB
Storage size	16MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	7W
Cooling type	Passive
PoE in	Passive PoE
PoE input voltage	10-28V

Wireless specifications

Details
Wireless 5 GHz Max data rate	300 Mbps
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n
Antenna gain dBi for 5 GHz	27
Wireless 5 GHz chip model	AR9344
Wireless 5 GHz generation	Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports	1

Certifications Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	IP54

Wireless specifications

5GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	28	-96
54Mbps	25	-80
MCS0	28	-96
MCS7	24	-75
