MIKROTIK LHG series 5 GHz CPE / Point-to-Point Integrated Antenna, 4 pck (LHG XL 5 ac)

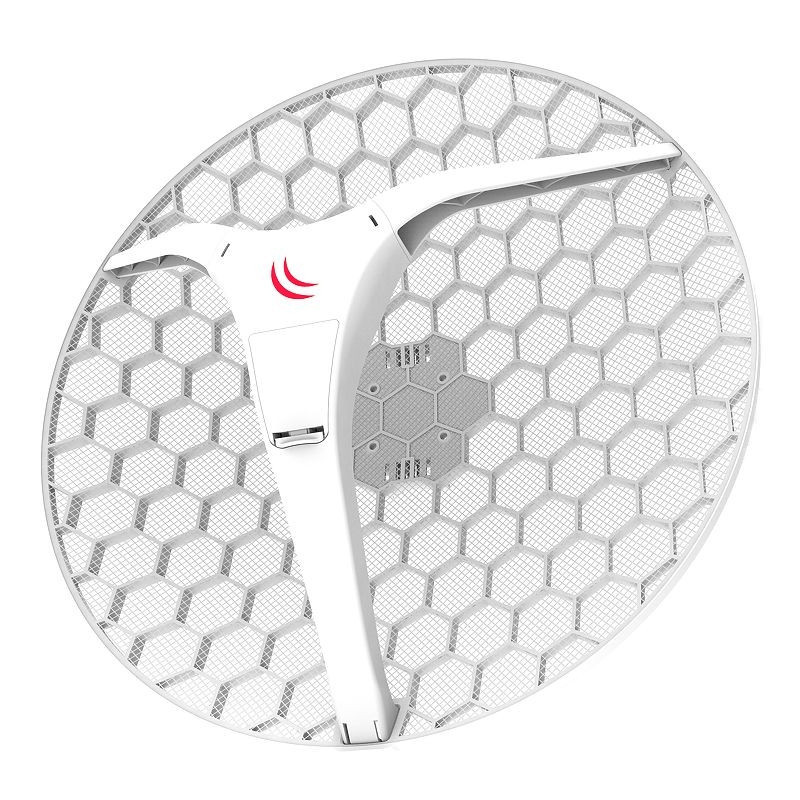

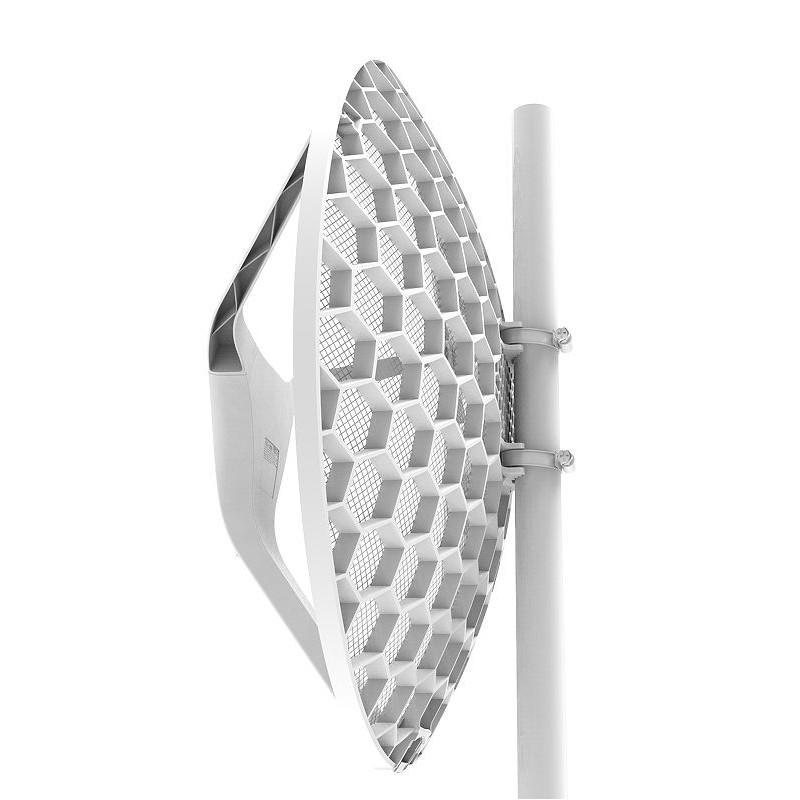

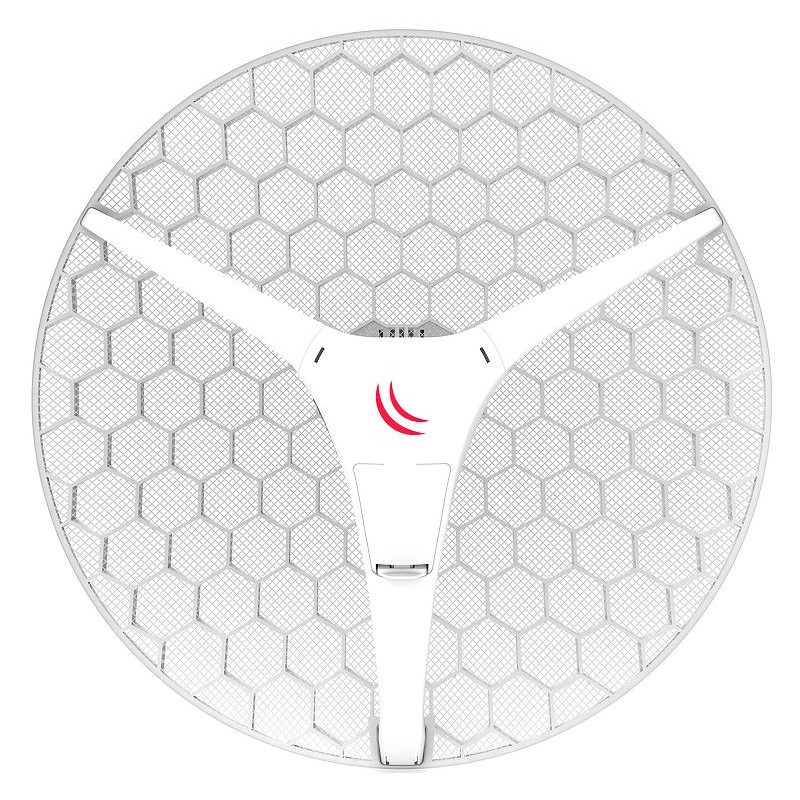

LHG XL 5 ac - compact and powerful wireless device

Lightweight and efficient designThe Light Head Grid (LHG) is a lightweight and compact wireless device with an integrated dual-polarization grid antenna. It is designed for point-to-point communication solutions or as a client premises equipment (CPE) for longer distances.

The unique mesh design provides excellent wind protection, while the integration of the antenna element into the wireless unit eliminates cable loss. The unit is delivered disassembled for convenient transportation, but is very easy to assemble. It also has a simple grounding point for safety.

LHG XL 5 ac - long range solutionThe LHG XL 5 ac is a 5 GHz 802.11ac wireless device with an integrated dual-polarized 27 dBi mesh antenna. It is ideal for point-to-point solutions or as a CPE over longer distances. This model supportsNv2 TDMA protocol, ensuring more efficient data transmission.

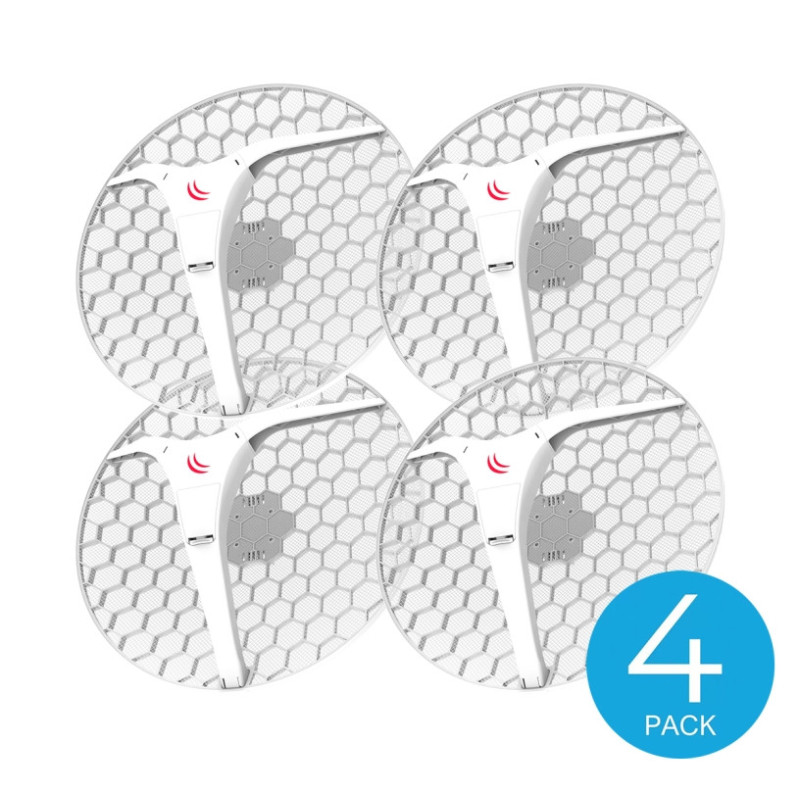

LHG XL 5 ac offeredRBLHGG-5acD-XL4packin a package consisting of 4 devices. This is a great choice for larger projects where a multi-point solution is required.

Architecture: ARM 32bit CPU: IPQ-4018 CPU core count: 4 CPU nominal frequency: 716 MHz Dimensions: Ø 550 x 245 mm; package 585 x 595 x 138 mm Operating System: RouterOS (License level 3) Weight: unit - 945 g; package - 2.99 kg Size of RAM: 256 MB Storage size: 16 MB Storage type: FLASH Tested ambient temperature: -40°C .. +70°C Wind loading: 186N @ 205 km/h

Powering

Max Power consumption: 8W PoE in: Passive PoE PoE in input Voltage: 10-30 V Number of DC inputs: 1 (PoE-IN)

Wireless

Wireless 5 GHz number of chains: 2 Wireless 5 GHz standards: 802.11ac Antenna gain dBi for 5 GHz: 27 +/- 0.5 Antenna beam width: 7° Wireless 5 GHz chip model: IPQ-4018

Ethernet

10/100/1000 Ethernet ports: 1
