MIKROTIK IoT Gateway KNOT LR9G kit

Concurrent GPS and LTE CAT-M
Track assets in motion with precise GPS while maintaining a live LTE CAT-M1 connection. Ideal for mobile units like service vehicles, containers, or roaming field equipment.

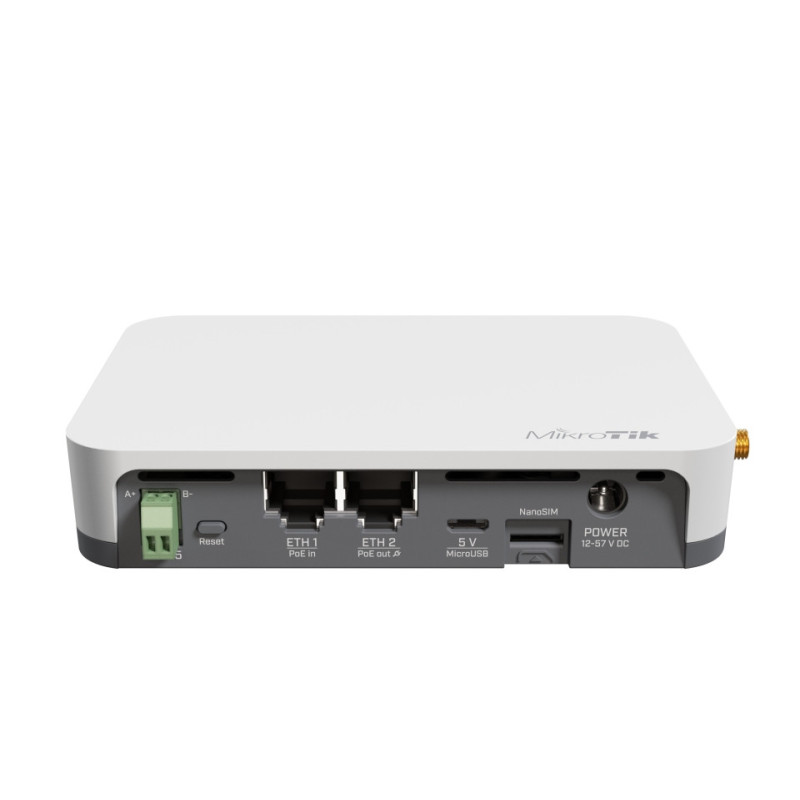

Versatile Powering
Choose from PoE-in, DC jack, or MicroUSB - including PoE-out on Ether2 for powering other devices.

SMA Female Connectors for All Main Interfaces
Easy antenna setup for LTE, GPS, and LoRa®.

Improved 868 MHz LoRa® Reception
Enhanced sensitivity for stronger signal and longer range, even in interference-heavy environments.

Lower Price, Same Reliability
Cost-effective for large-scale deployments without sacrificing performance.

Powered by RouterOS v7
For full control, custom scripting, and advanced routing features.

Product code: RB924iR-2nD-BT5&BG770A&R11e-LR9G
Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Switch chip model: QCA9531
RouterOS license: 4
Operating System: RouterOS v7
Size of RAM: 64 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C

Powering

MicroUSB input Voltage: 5 V
Number of DC inputs: 3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage: 12-57 V
Max power consumption: 23 W
Max power consumption without attachments: 6 W
PoE in: 802.3af/at
Cooling type: Passive
PoE in input Voltage: 18-57 V

PoE-out

PoE-out ports: Ether2
PoE out: 802.3af
Low voltage PoE-Out current limit: 650 mA
High voltage PoE-Out current limit: 450 mA

Wireless specifications

Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz Number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 1.5
Wireless 2.4 GHz chip model: QCA9531
Wireless 2.4 GHz generation: Wi-Fi 4

Ethernet

10/100 Ethernet ports 2

Peripherals

Number of SIM slots: 1 Smart card (Nano SIM)
MiniPCI-e slots: 1
Serial console port: RS485
Number of USB ports: 1
USB slot type: microUSB type AB
Max USB current (A): 1

Other

PCB temperature monitor: Yes
Voltage Monitor: Yes
Bluetooth version: 5.2
Bluetooth RF connector type: uUFL

Certification Approvals

Certification FCC, IC, EAC
IP 20
