MIKROTIK IoT Gateway KNOT LR8G kit

Simultaneous GPS and LTE CAT-M Track moving objects using accurate GPS while maintaining an active LTE CAT-M1 connection. Perfect for mobile systems such as service vehicles, containers, or moving field equipment.

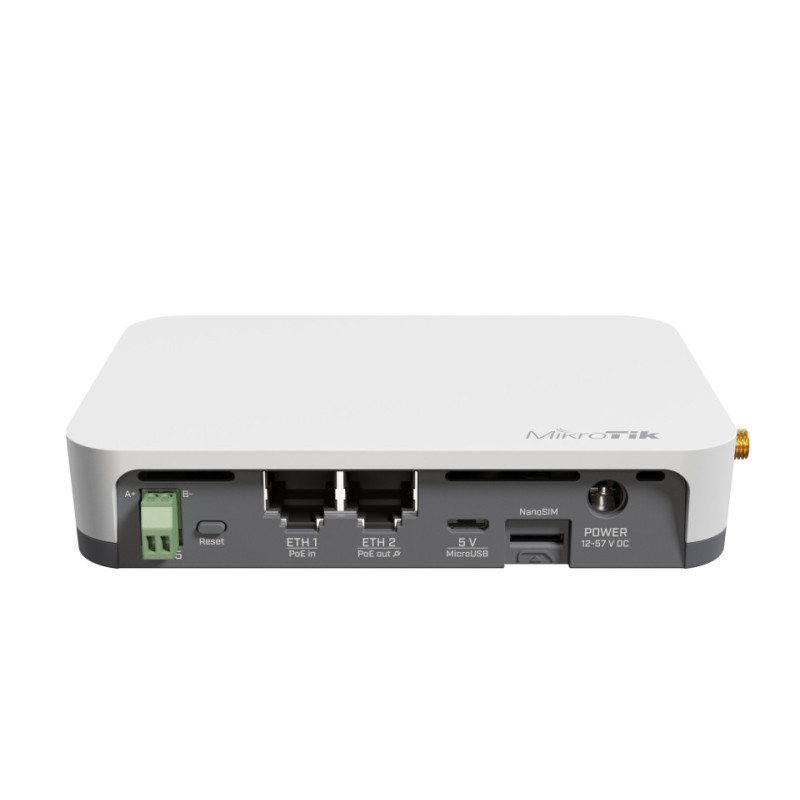

Universal power supply Ability to power via PoE input, DC connector or MicroUSB - as well as PoE output via Ether2 for powering other devices.

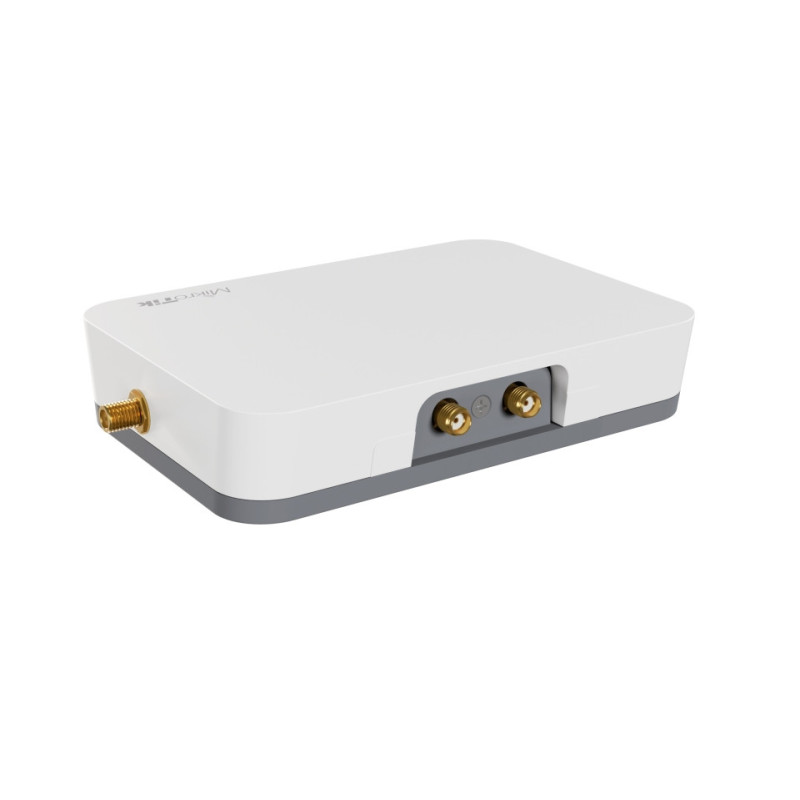

SMA female connectors for all major interfaces Easy antenna connection for LTE, GPS and LoRa® communications.

Improved 868 MHz LoRa® reception Increased sensitivity for stronger signal and longer range even in noisy environments.

Lower price, same quality of reliability An economical solution for large-scale deployments without sacrificing performance.

Powered by RouterOS v7 Full control, custom scripts and advanced routing features.

Product code RB924iR-2nD-BT5BG770AR11e-LR8G Architecture: MIPSBE CPU: QCA9531 CPU core count: 1 CPU nominal frequency: 650 MHz Switch chip model: QCA9531 RouterOS license 4 Operating System: RouterOS v7 Size of RAM: 64 MB Storage size: 128 MB Storage type: NAND MTBF: Approximately 200'000 hours at 25C Tested ambient temperature: -40°C to 70°C

Powering

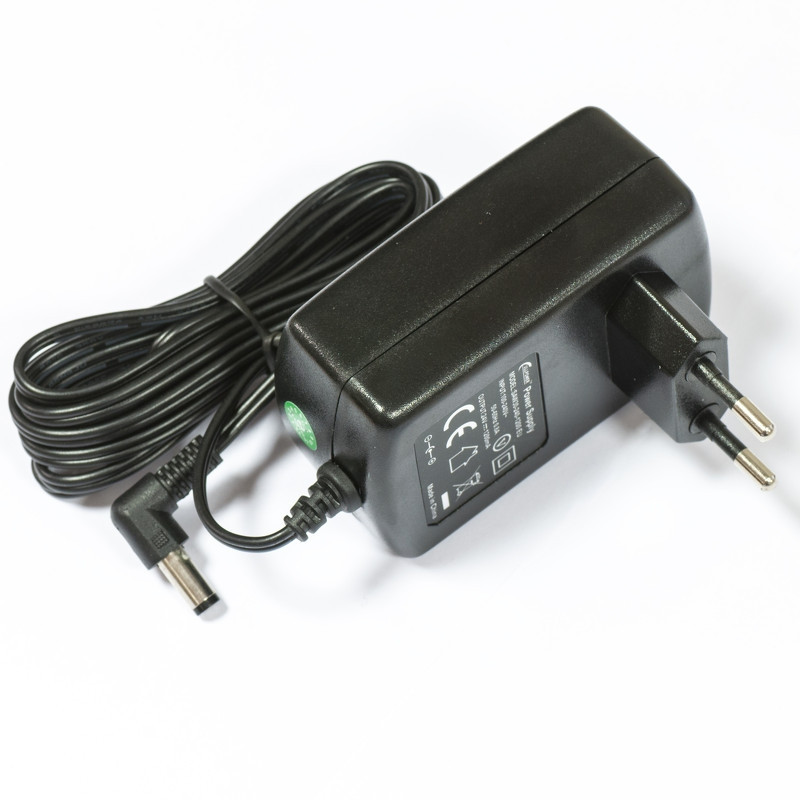

MicroUSB input Voltage: 5 V Number of DC inputs: 3 (DC jack, PoE-IN, MicroUSB) DC jack input Voltage: 12-57 V Max power consumption: 23 W Max power consumption without attachments: 6 W PoE in: 802.3af/at Cooling type: Passive PoE in input Voltage: 18-57 V

PoE-out

PoE-out ports: Ether2 PoE out Passive PoE Low voltage PoE-Out current limit: 650 mA High voltage PoE-Out current limit: 450 mA Total output power: 12

Wireless specifications

Wireless 2.4 GHz Max data rate: 300 Mbit/s Wireless 2.4 GHz Number of chains: 2 Wireless 2.4 GHz standards: 802.11b/g/n Antenna gain dBi for 2.4 GHz: 1.5 Wireless 2.4 GHz chip model: QCA9531 Wireless 2.4 GHz generation: Wi-Fi 4

Ethernet

10/100 Ethernet ports: 2

Peripherals

Number of SIM slots: 1 Smart card (Nano SIM) MiniPCI-e slots: 1 Serial console port: RS485 Number of USB ports: 1 USB slot type: microUSB type AB Max USB current (A): 1

Other

PCB temperature monitor: Yes Voltage Monitor: Yes Bluetooth version: 5.2 Bluetooth RF connector type: uUFL GPS RF connector type: SMA

Certifications Approvals

Certification: CE, EAC, ROHS IP: 20
