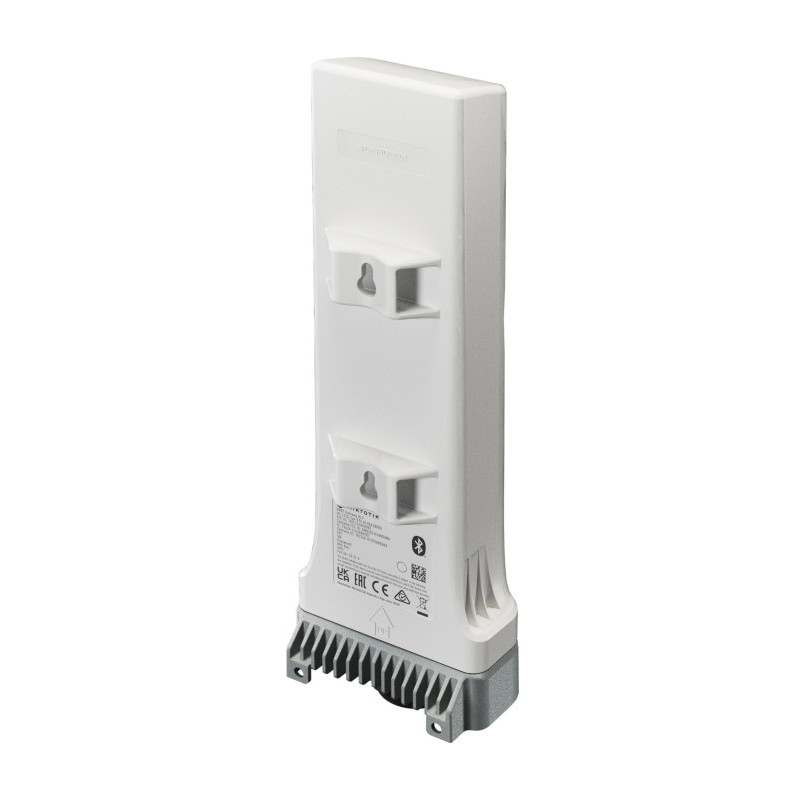

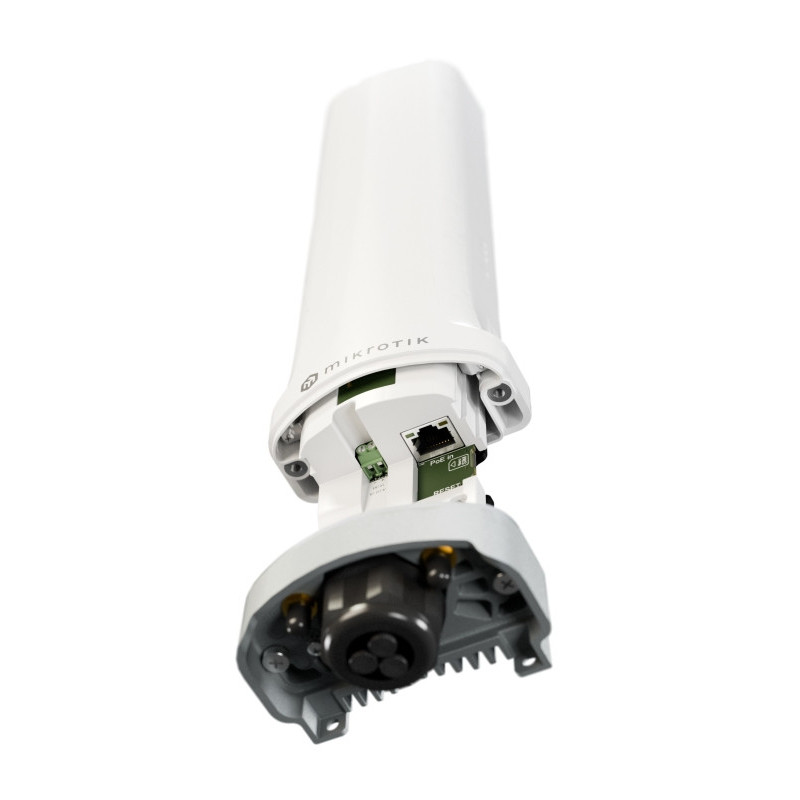

MIKROTIK IoT Gateway KNOT LR8 (L14G-2ax-BT5-LR8&EG800K)

With the new KNOT Gateway, you can follow tagged equipment, pallets, containers, tools, and other assets as they pass through warehouses and terminals. But there's more: you can tie various generations of tech together! The KNOT Gateway brings remote meters, sensors, and other IoT devices into your network with BLE and long-range sub-GHz connectivity.

BLE 5.1

Turn Bluetooth broadcasts into useful, actionable data: track tagged assets, monitor telemetry, filter advertisements, and use RouterOS scripting to decide what happens next.

Long-range IoT

Go beyond Bluetooth with 868 MHz LoRa® on KNOT Gateway LR8 or 915 MHz Wi-Fi HaLow on KNOT Gateway HL9 - two sub-GHz options for IoT deployments that need to reach even further.

Three ways back to your servers

Use Gigabit Ethernet, 2.4 GHz Wi-Fi, or LTE Cat 1 bis for backhaul. Put the gateway where your devices are, without depending on Ethernet being available there.

RouterOS does the rest

Filter data locally, build your own logic with scripts, publish information using MQTT or HTTP, and integrate it into your preferred IoT platform with custom dashboards, notifications, and reports.

Product code: L14G-2ax-BT5-LR8&EG800K

Architecture: ARM 64bit

CPU: IPQ-5010

CPU core count: 2

CPU nominal frequency: 800 MHz

CPU Threads count: 2

RouterOS license: 4

Operating System: RouterOS v7

Size of RAM: 256 MB

Storage size: 128 MB

Storage type: NAND

MTBF: Approximately 200'000 hours at 25C

Tested ambient temperature: -40°C to 50°C

Powering

Number of DC inputs: 2 (PoE-IN, 2-pin terminal)

2-pin terminal input Voltage: 12-57 V

Max power consumption: 9 W

PoE in: 802.3af/at

Cooling type: Passive

PoE in input Voltage: 18-57 V

Mobile

LTE Category: CAT 1 bis (DL: 10Mbps; UL: 5Mbps)

MIMO DL: 1x1

MIMO UL: 1x1

LTE FDD bands:

1 (2100MHz)

3 (1800MHz)

5 (850MHz)

7 (2600MHz)

8 (900 MHz)

20 (800MHz)

28 (700MHz)

TAC: 86684606

Wireless specifications

Wireless 2.4 GHz Max data rate: 287 Mbit/s

Wireless 2.4 GHz Number of chains: 1

Wireless 2.4 GHz standards: 802.11b/g/n/ax

Antenna gain dBi for 2.4 GHz: 3.9

Wireless 2.4 GHz chip model: IPQ-5010

Wireless 2.4 GHz generation: Wi-Fi 6

Ethernet

10/100/1000 Ethernet ports: 1

Peripherals

Number of SIM slots: 1 Modem (Nano SIM)

Other

CPU temperature monitor: Yes

Bluetooth version: 5.1

Bluetooth RF connector type: uUFL

eSIM: Yes

Certification & Approvals

Certification: CE, EAC, ROHS

IP: 66
