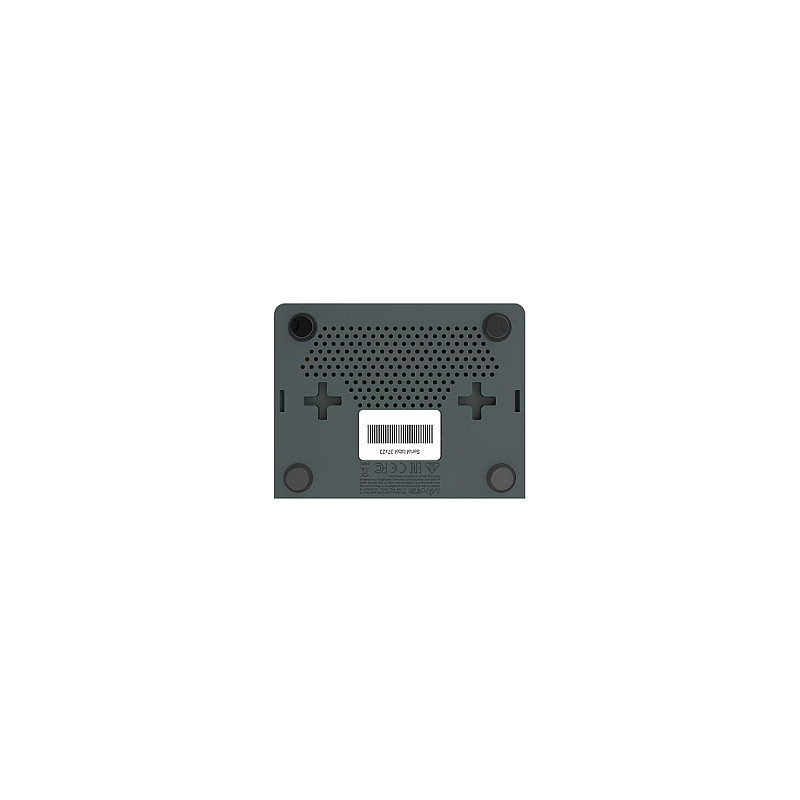

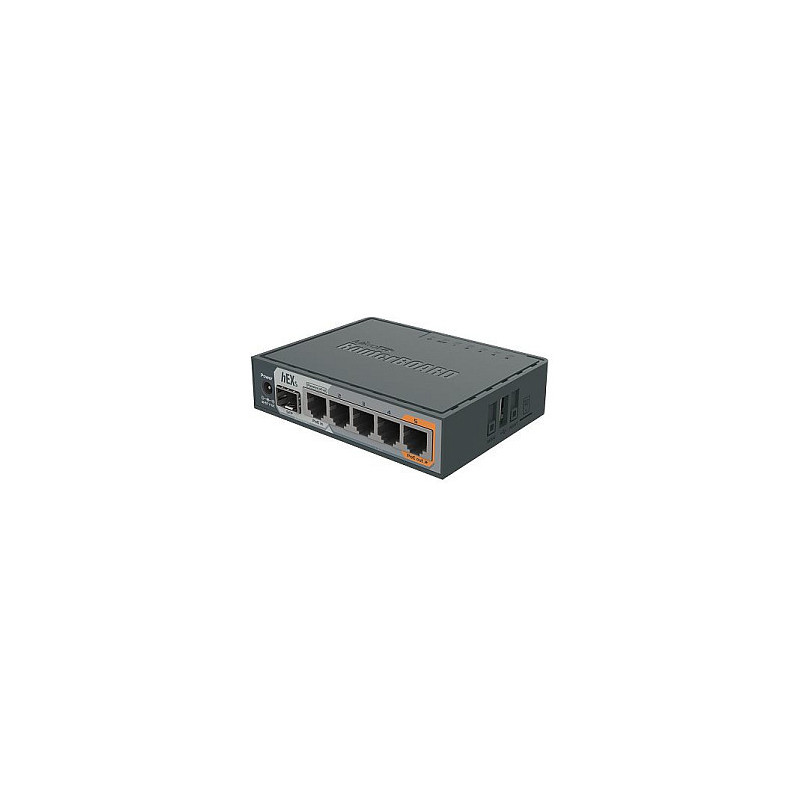

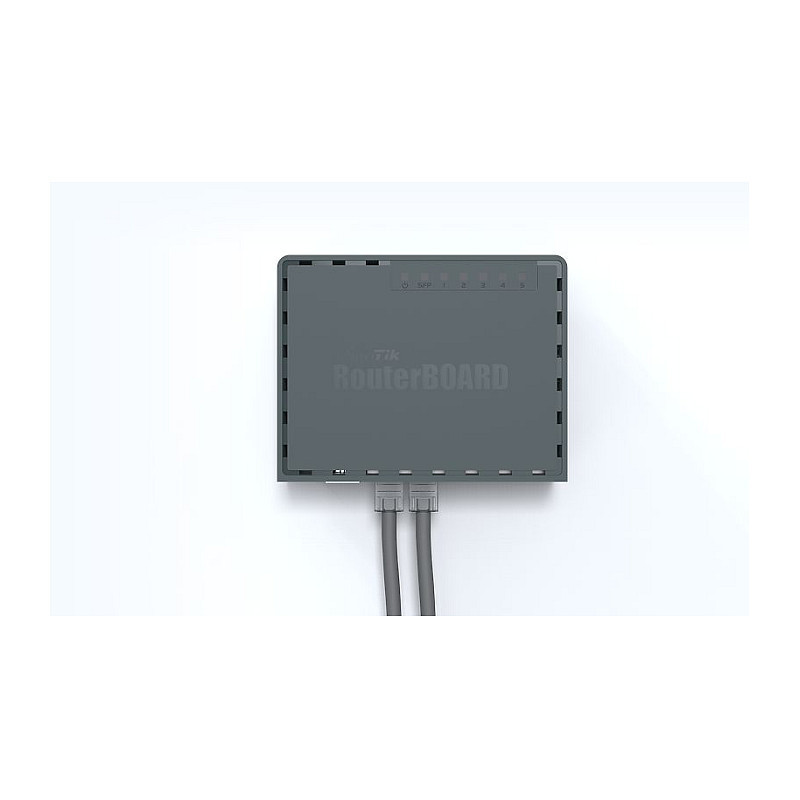

Mikrotik hEX S wired router

Mikrotik hEX S. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Internal memory: 256 MB. Product colour: Black. Power consumption (typical): 11 W, Power source type: DC. Width: 113 mm, Depth: 89 mm, Height: 28 mm

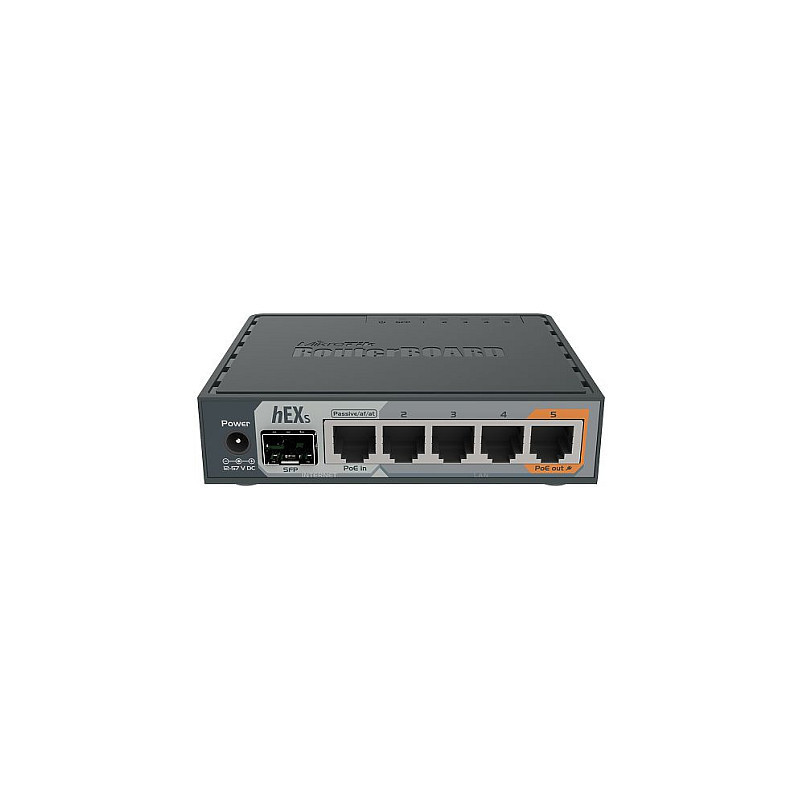

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

WAN connection

Feature: Ethernet WAN

Network

Ethernet interface type: Gigabit Ethernet
Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s

Ports & interfaces

Ethernet LAN (RJ-45) ports: 5
Power over Ethernet (PoE) ports quantity: 1
Installed SFP modules quantity: 1
USB ports quantity: 1
Feature: DC-in jack

Features

Internal memory: 256 MB

Design

Product colour: Black

Antenna

Antenna type: Not supported

Power

Power consumption (typical): 11 W
Power source type: DC

Weight & dimensions

Width: 113 mm
Depth: 89 mm
Height: 28 mm

Logistics data

Harmonized System (HS) code: 85176990
