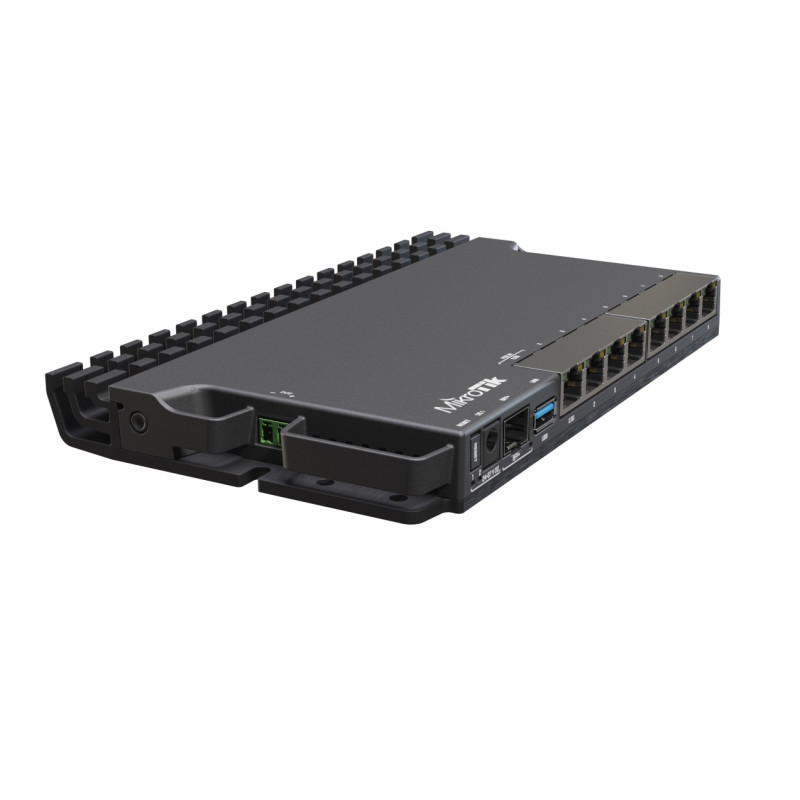

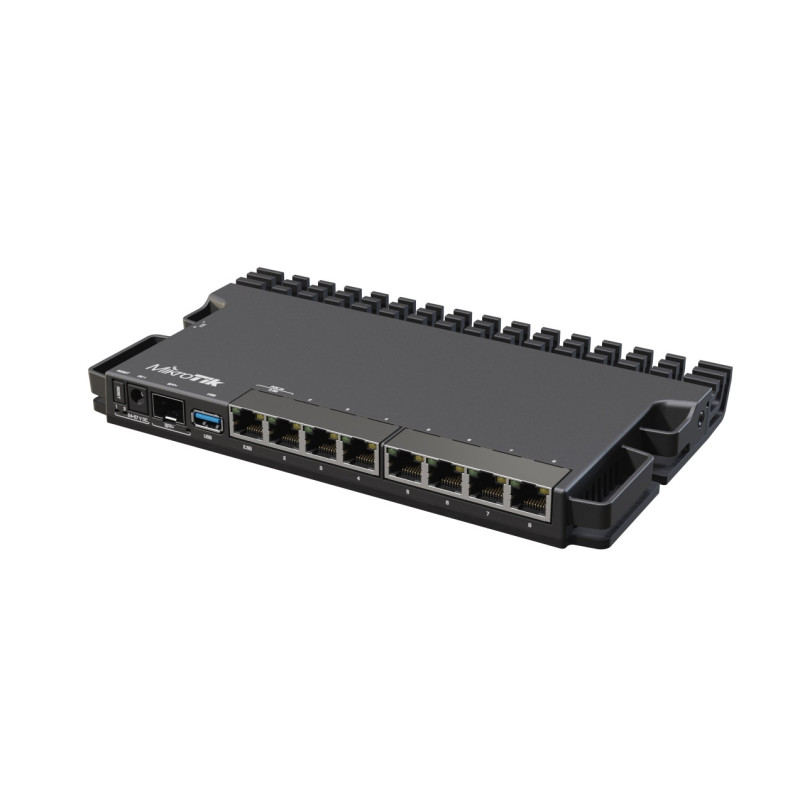

MIKROTIK heavy-duty home lab router RB5009UG+S+IN

Compact and powerful- this router has everything you need for a home lab. The improved version, based on feedback from MikroTik user meetings, provides twice the performance, takes up less space, and has various power options and efficient cooling.

Main features:

• 9 wired ports and full-size USB 3.0.


• 7 ports with 1G Ethernet speed, 1 port with 2.5G Ethernet and 1 port with 10G SFP+ slot.


• PowerfulMarvell Amethyst series connection chipwith a 10 Gbps full-duplex communication line, connected toMarvell Armada Quad-core ARMv8 1.4 GHz processor.


• The processor and the connection chip are built into the bottom of the board, so the case acts as a large heat dissipation element.

Small form factor performance- Due to this unique configuration, this router is able to achieve almost twice the performance of other devices of similar form factor under heavier CPU loads.

Power options:

• PoE-inthrough the first Ethernet port.

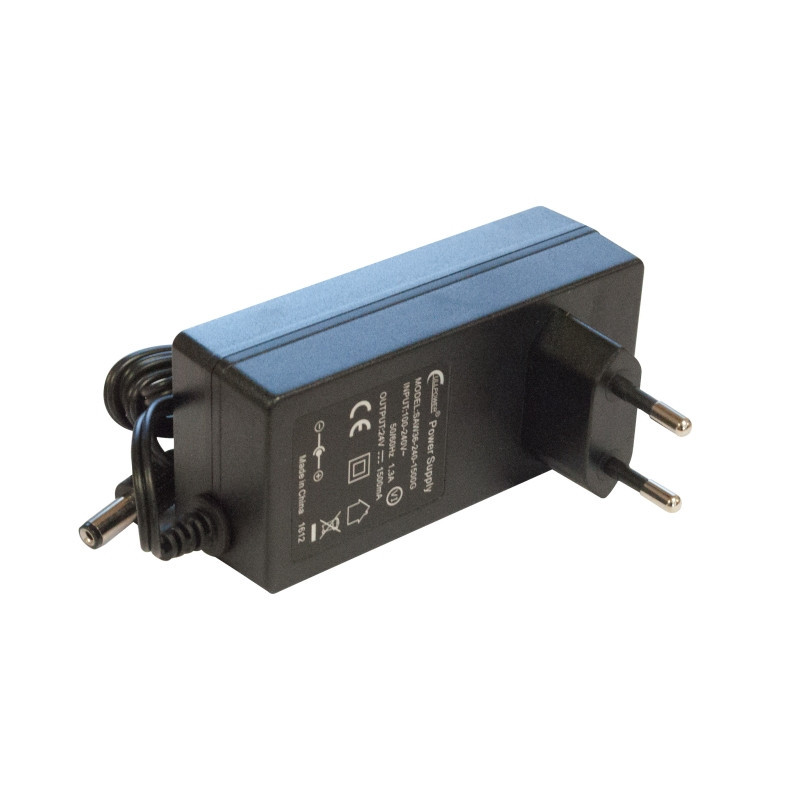

• DC Jack.


• 2-pin terminalon the side.

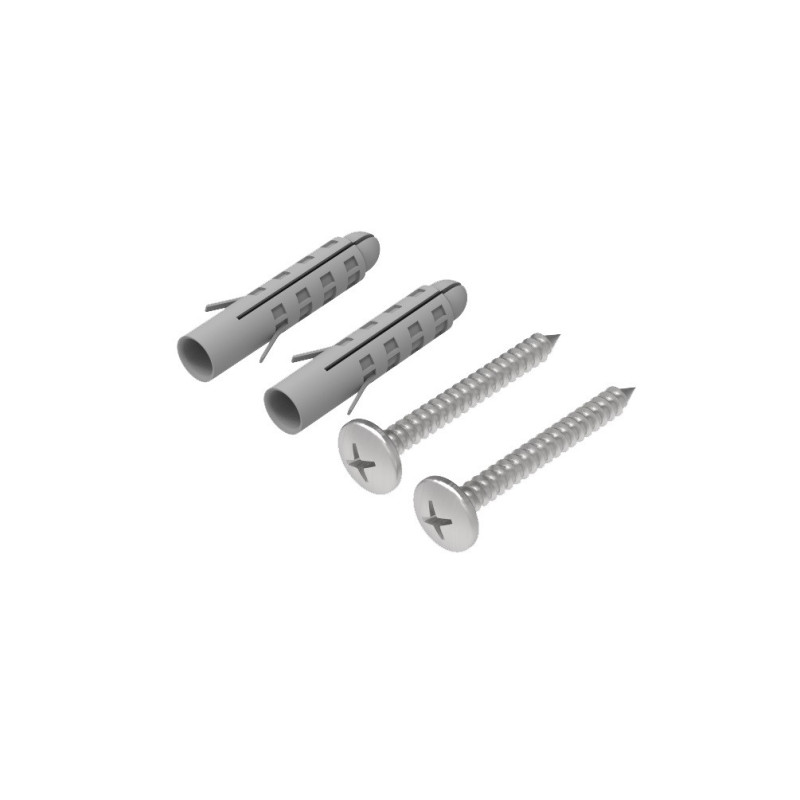

Mounting in 1U rack space:These routers can be installed up to four times in a single 1U rackmount stand, ensuring the highest productivity with minimal space requirements.

Specifications:

• 1GB DDR4 RAM.


• 1GB NAND memory.

The RB5009 is an ideal choice if you are looking for a powerful and compact router for your home lab or other technical environment where both performance and space saving are important.

Powering

Ethernet

Fiber

Peripherals

Other

Certifications Approvals
