MIKROTIK dual-band router with 5 Gigabit Ethernet ports and external high gain antennas for more coverage, hAP ac3
Product reference:
18-RBD53iG-5HacD2HnD
MIKROTIK dual-band router with 5 Gigabit Ethernet ports and external high gain antennas for more coverage, hAP ac3
MIKROTIK dual-band router with 5 Gigabit Ethernet ports and external high gain antennas for more coverage, hAP ac3
Product reference:
18-RBD53iG-5HacD2HnD
MIKROTIK dual-band router with 5 Gigabit Ethernet ports and external high gain antennas for more coverage, hAP ac3
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Manufacturer:
Mikrotik

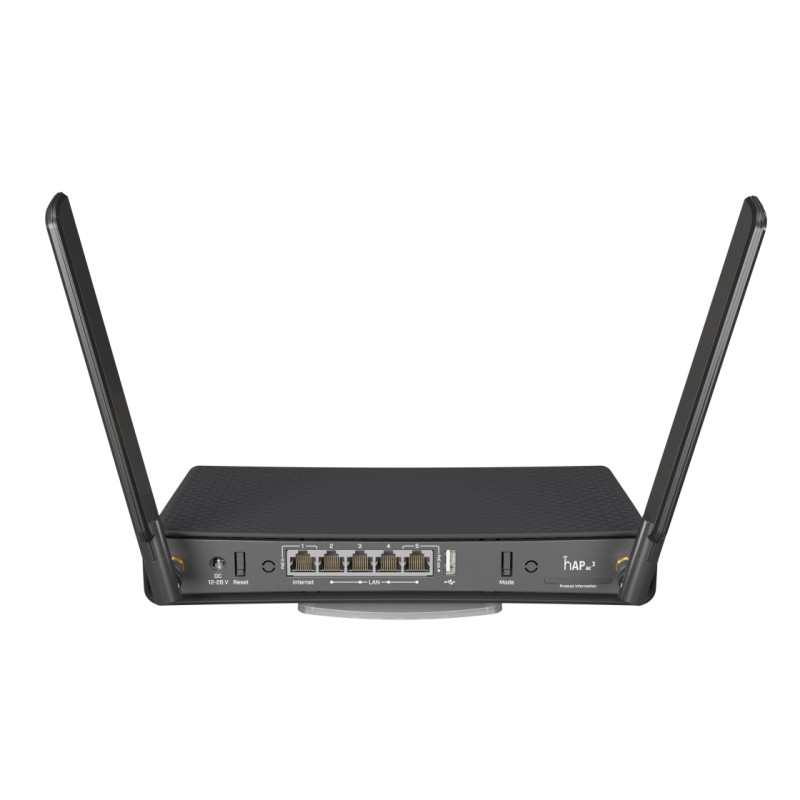

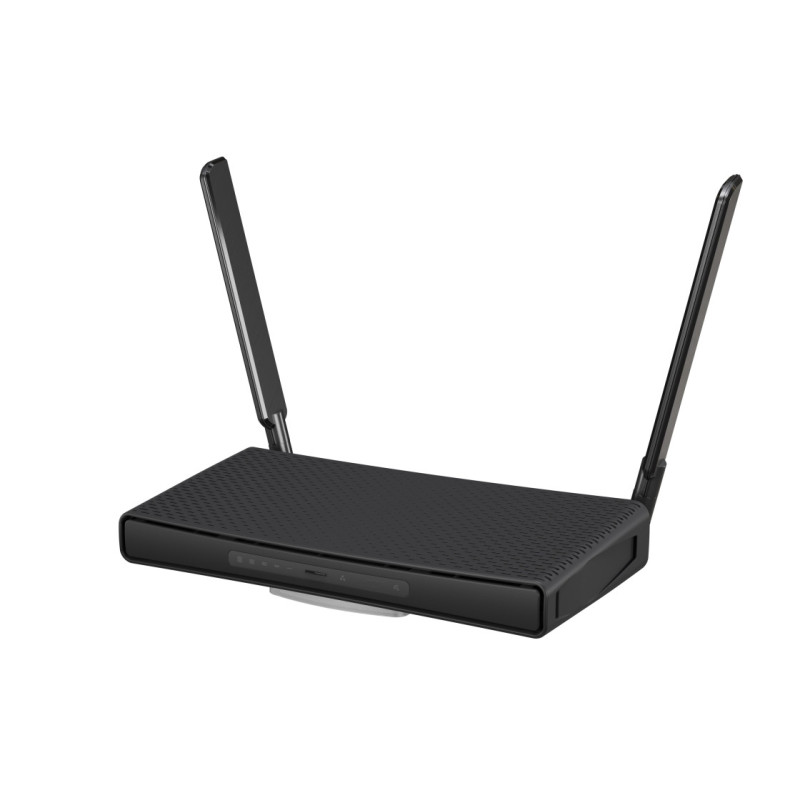

Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! MikroTik have created a single affordable home access point that has all the features you might need for years to come.
Is your old router struggling to reach every corner of your home? Well, forget about that! They have included external high gain wireless antennas with outstanding coverage. Only strong and stable wireless connection in every room from now on!

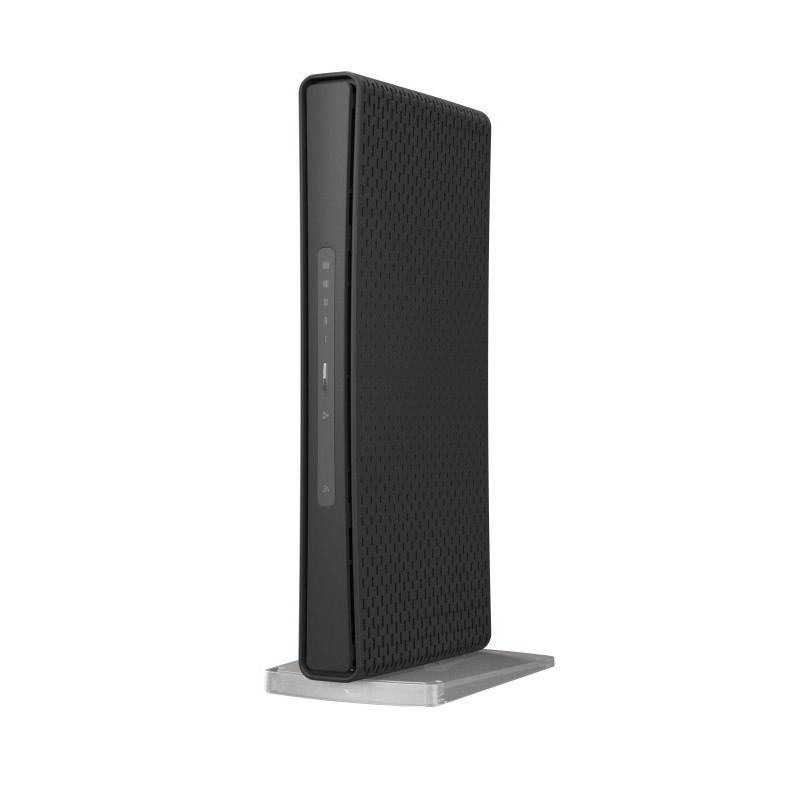

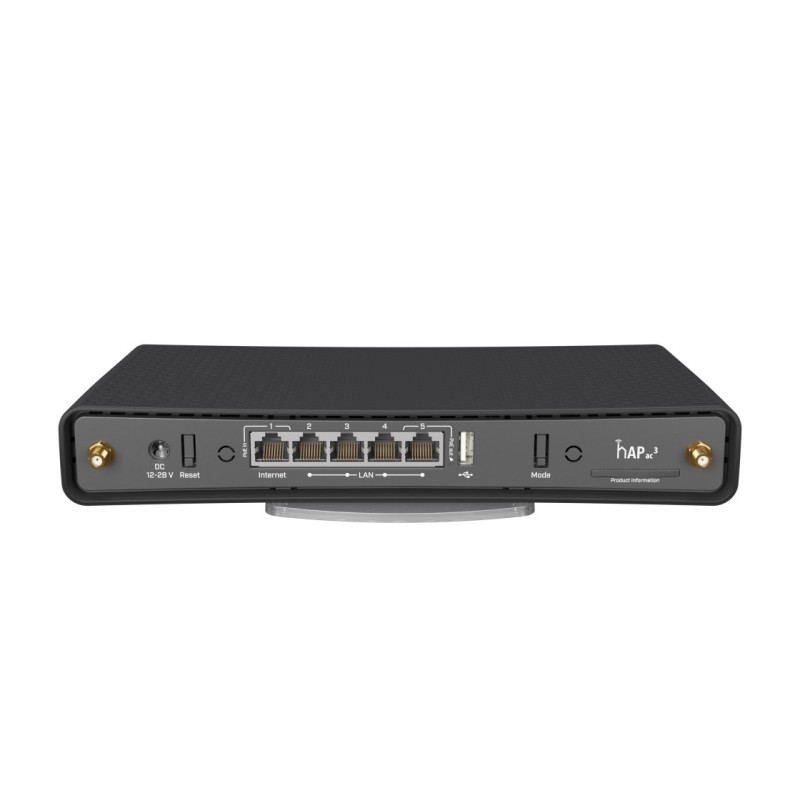

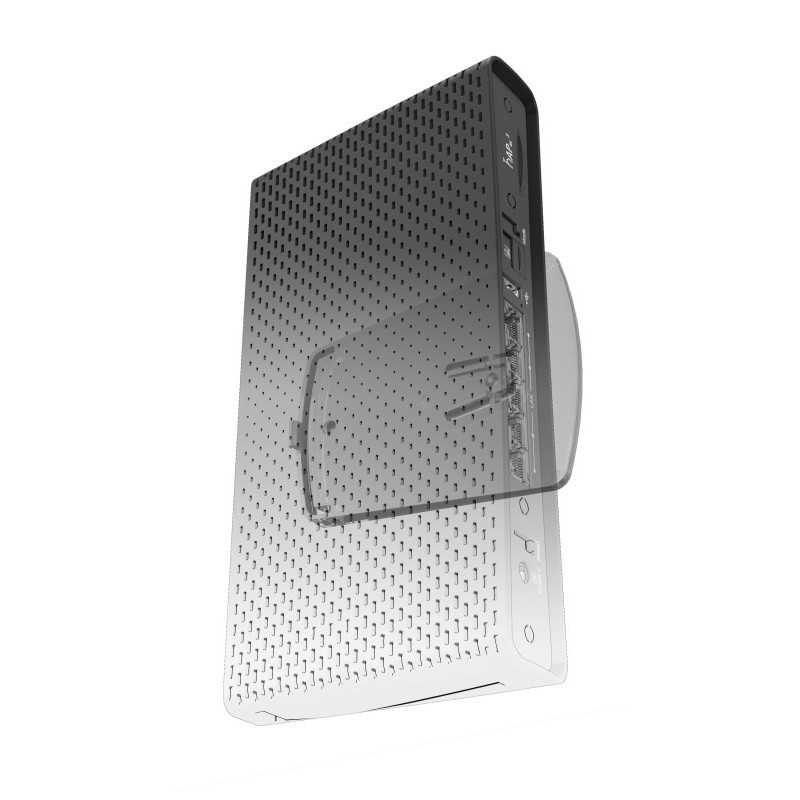

With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.
| Product code | RBD53iG-5HacD2HnD |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 716MHz |
| Dimensions | 251 x 129 x 39 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| RAM size | 256MB |
| Storage size | 128MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbps |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbps |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| AC speed | AC1200 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE input voltage | 18-28V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28V |
| Max power consumption | 30W |
| Max power consumption without attachments | 12W |
| FAN count | Passive |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input < 30 V) | 0.5A |
| Max total out (A) | 0.5A |
Certifications Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
Other
| Details | |
|---|---|
| Mode button | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 25 | -100 |
| 11MBit/s | 25 | -94 |
| 6MBit/s | 26 | -96 |
| 54Mbps | 23 | -78 |
| MCS0 | 26 | -96 |
| MCS7 | 22 | -73 |
| 5GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 26 | -96 |
| 54Mbps | 22 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 21 | -75 |
| MCS9 | 19 | -70 |
