MIKROTIK Cost-effective Cat.4 LTE Outdoor Router SXTsq Embedded LTE4 Global

Not every connection needs maximum speeds - sometimes you just need a reliable and cost-effective way to connect to the internet wherever life takes you.

"SXTsq Embedded LTE4" is designed for practical connectivity for rural homes, farmsteads, construction sites and remote areas where traditional broadband internet may not be available.

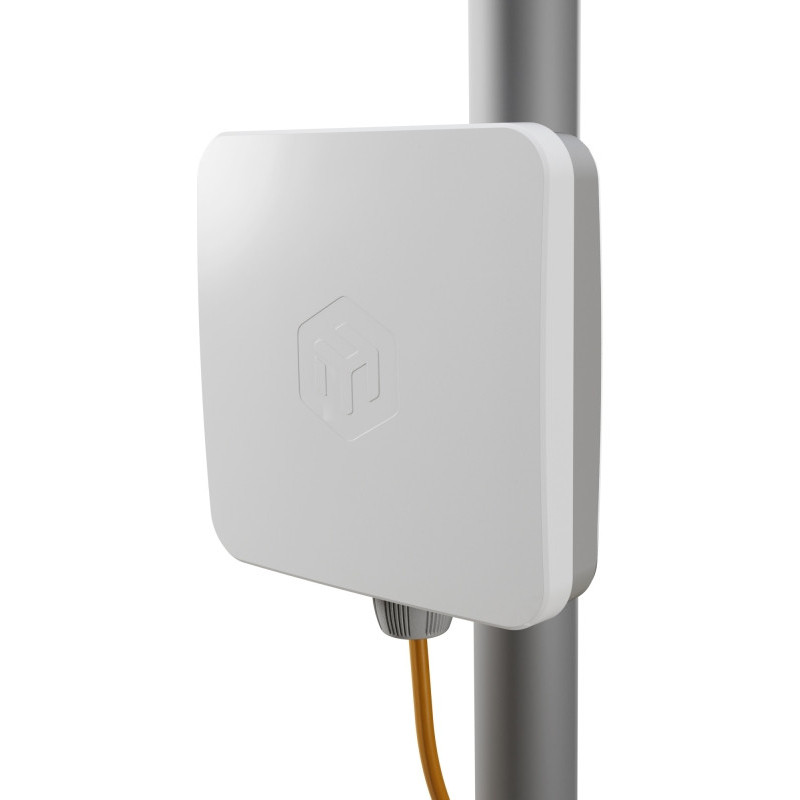

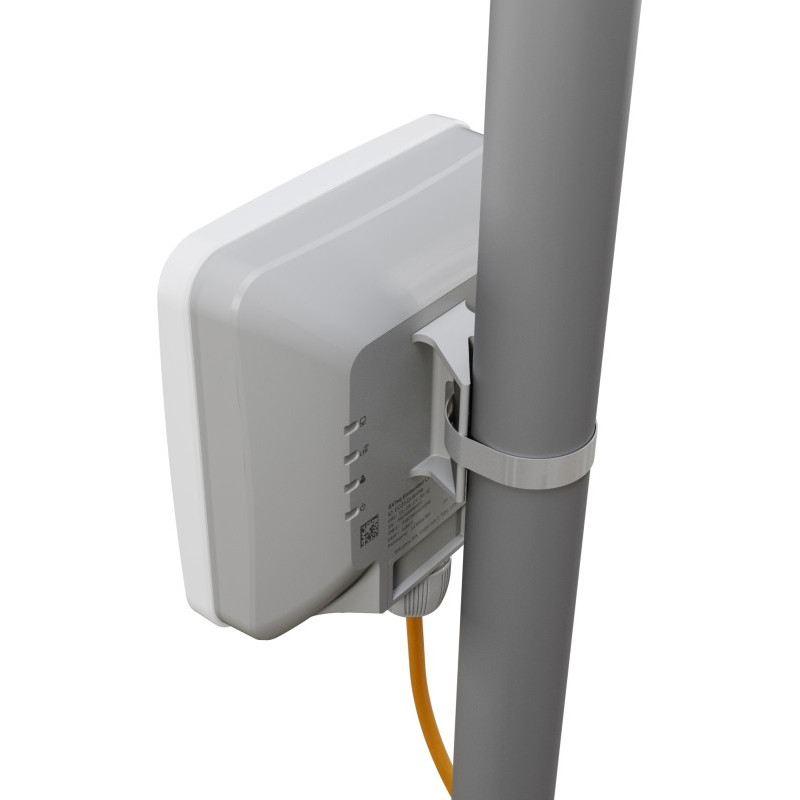

The device can be installed outdoors, pointed at the nearest base station and receive a stable LTE connection even where regular Internet is unavailable. The integrated directional antenna improves signal quality and stability - especially in rural conditions.

Running on RouterOS v7, the device provides full MikroTik network functionality:

advanced routing firewall and VPN support remote management traffic control and monitoring automation and scripting

From simple internet access to complex network solutions, the device adapts to your needs. Designed for reliable and cost-effective outdoor connectivity, the SXTsq Embedded LTE4 features a Cat.4 LTE modem, integrated 2×2 MIMO directional antenna, fast ARM processor, 256 MB RAM, PoE input (12-28 V) and a rugged IP67 housing - all running RouterOS v7 and consuming up to 5 W of power.

eSIM + NanoSIM - easier connection

SXTsq Embedded LTE4 introduces eSIM support to this popular outdoor platform.

Activate your data plan remotely and connect devices to the network without a physical SIM card. This is especially useful for remote deployments, backup connections, and distributed systems.

For added flexibility, the device also has a Nano SIM slot, allowing you to use regular mobile carriers.

Fast deployment, flexible connectivity - exactly what modern networks demand.

There are two versions of modems tailored to different deployment needs.

SXTsq Embedded LTE4 Global (EG25-G) Expanded LTE band support for North America and global deployments makes the device suitable for international projects and multi-region installations.

Your network, your rules: eSIM or NanoSIM

The SXTsq Embedded LTE4 has a true integrated eSIM compatible with:

MikroTik Connectivity (pre-activated data plans) Third-party eSIM profiles (mobile operator eSIM) Multiple eSIM profiles (easily added, switched or stored)

Product code: EG25-GSXTsq Architecture: ARM 32bit CPU: Cortex A7 CPU core count: 1 CPU nominal frequency: 800 MHz RouterOS license: 3 Operating System: RouterOS v7 Size of RAM: 256 MB Storage size: 512 MB Storage type: NAND MTBF: Approximately 100'000 hours at 25C Tested ambient temperature: -40°C to 70°C

Powering

Number of DC inputs: 1 (PoE-IN) Max power consumption: 5 W PoE in: 802.3af/at Cooling type: Passive PoE in input Voltage: 12-28 V

2G Category: Class33 2G bands: 2 (1900MHz)
3 (1800MHz) 5 (850MHz) 8 (900MHz) 3G Category R8: (42.2Mbps Downlink, 5.76Mbps Uplink) 3G bands: 1 (2100MHz)
2 (1900MHz) 4 (1700MHz) 5 (850MHz) 6 (850MHz) 8 (900MHz) 19 (800MHz)
LTE Category: 4 (150Mbps Downlink, 50Mbps Uplink)
MIMO DL: 2x2
MIMO UL: 1x1
LTE FDD bands:
1 (2100MHz) 2 (1900MHz) 3 (1800MHz) 4 (1700MHz) 5 (850MHz) 7 (2600MHz) 8 (900MHz) 12 (700MHz) 13 (700MHz) 18 (800MHz) 19 (800MHz) 20 (800MHz) 25 (1900MHz) 26 (850MHz) 28 (700MHz)
LTE TDD bands:
38 (2600MHz) 39 (1900MHz) 40 (2300MHz) 41 (2500MHz) TAC: 01678800

Ethernet

10/100/1000 Ethernet ports: 1

Peripherals

Number of SIM slots: 2 Modem (Nano SIM)

Other

CPU temperature monitor: Yes eSIM: Yes

Certifications Approvals

Certification: CE, EAC, ROHS IP: 67
