MIKROTIK Cloud Smart Switch GPERx6
Product reference:
18-CSS606-1G-2Gi-3S+OUT
MIKROTIK Cloud Smart Switch GPERx6
MIKROTIK Cloud Smart Switch GPERx6
Product reference:
18-CSS606-1G-2Gi-3S+OUT
MIKROTIK Cloud Smart Switch GPERx6
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days

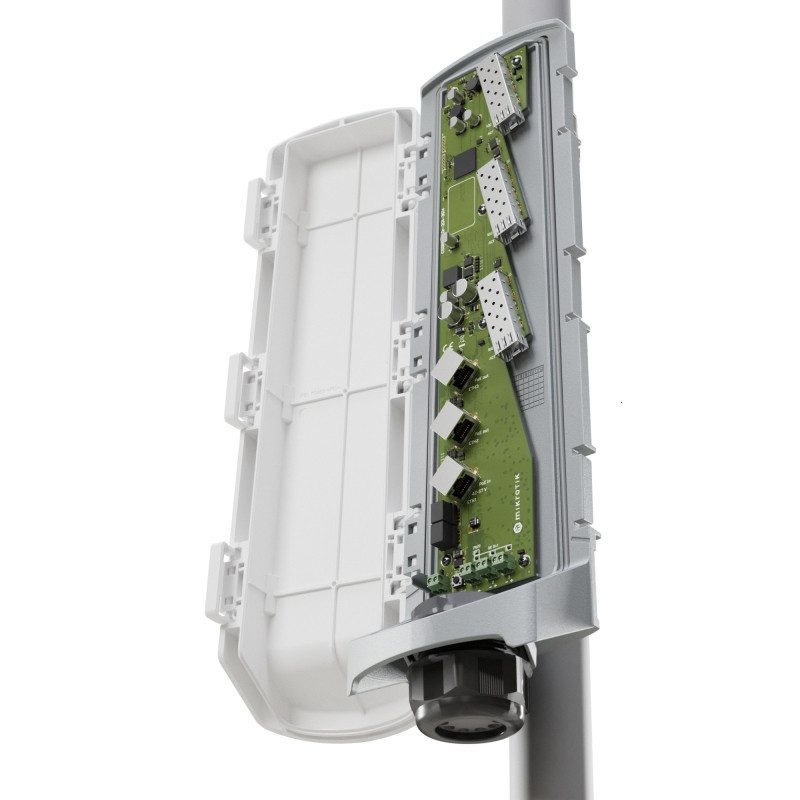

Outdoor conditions can be unforgiving: scorching heat, freezing cold, wind, rain. Nature is constantly attacking your equipment. Cable management is a nightmare.GPERx6 solves both problems- is a rugged, field-ready switch that reduces wiring clutter and simplifies installation.
At first glance, everything is simple:
3 Gigabit Ethernet portswith PoE-in (#1) and PoE-out (#2 and #3)
3× 10G SFP+ slotsfor long-distance fiber optic
3 DC-outfor devices that do not use PoE (e.g. IoT solutions)

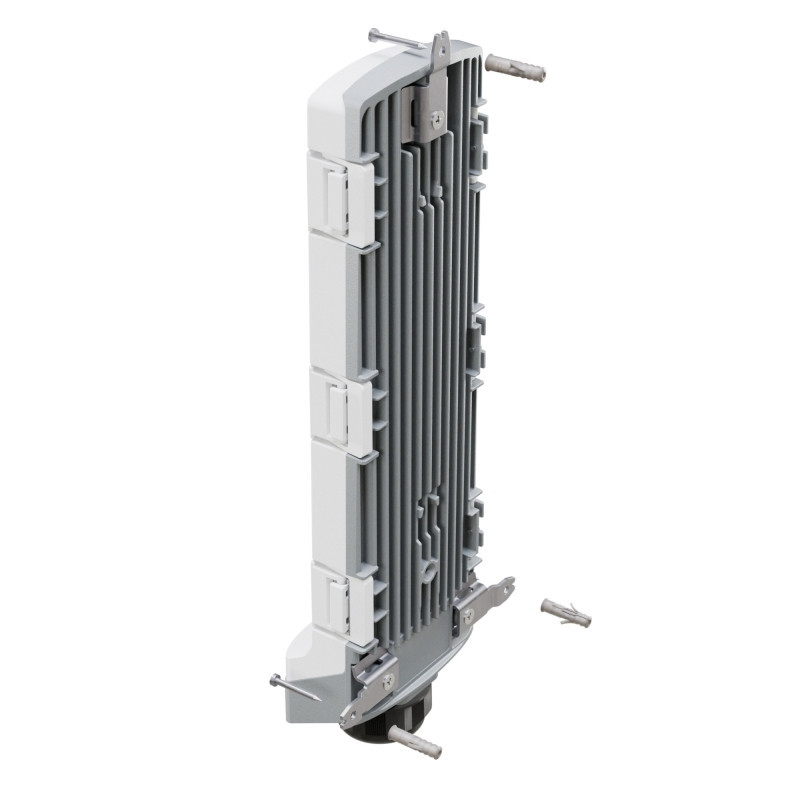

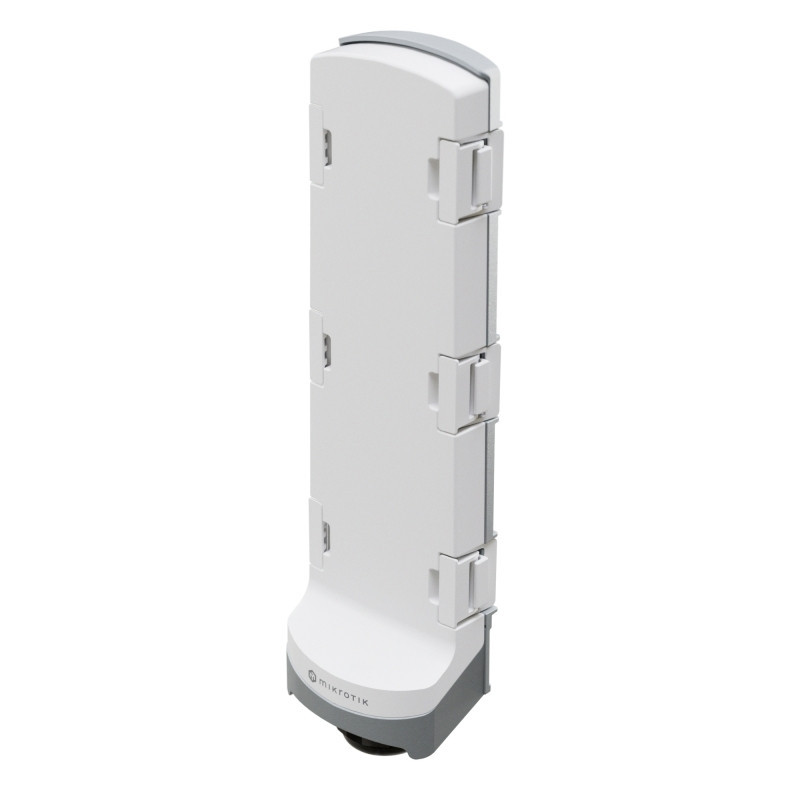

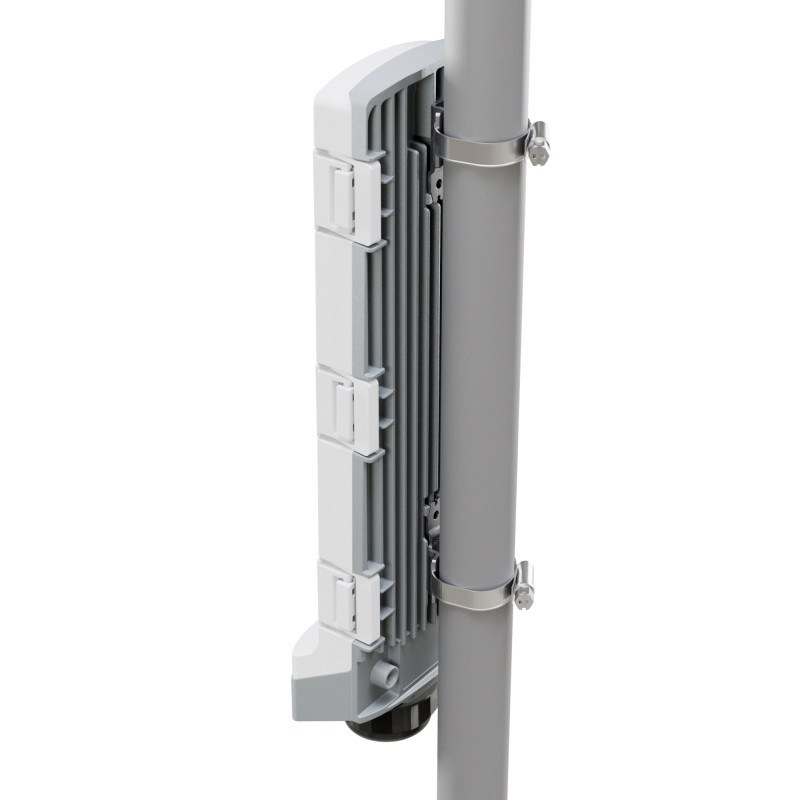

Rugged IP66 boxwith convenient mounting elements
Dedicated 10G switching chip(tested on ISP-favorite equipment such asnetPower Lite 7R)
But the real value is how easily GPERx6 allows you to manage power and data transmission over long distances (1-2 km), even in the most challenging situations!
Advantage of hybrid cable
Using hybridfiber optic + coppercables, GPERx6 becomes real
power and data artery:
Fiber optic cables transmit high-speed uplink.
Copper wires carry direct current.
On the far side of the cable, GPERx6 neatly distributes everything:
°SFP+ uplinks for data
°PoE-outto other switches or access points
°DC-outFor IoT devices or special equipment
| Product code | CSS606-1G-2Gi-3S+OUT |
| Switch chip model | 88E6193X |
| Operating System | SwOS |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57V |
| Max power consumption | 160W |
| Max power consumption without attachments | 6W |
| PoE in | 802.3 bt |
| Cooling type | Passive |
| PoE input voltage | 42-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2-Ether3 |
| PoE out | Passive PoE up to 57V |
| Low voltage PoE-Out current limit | 1.2 A |
| High voltage PoE-Out current limit | 0.625 A |
| Max total out (A) | 2.4 A |
| Total output power | 150 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 3 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 1 |
| Number of 1G Ethernet ports with PoE-out | 2 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 3 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
Certifications Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 66 |
