Ultra-fast enterprise switch with extra processing power thanks to the CCR series processor, and the best 100 gigabit port price on the market!


Welcome to networking innovation: the advanced CRS520-4XS-16XQ-RM with extra processing power, 4GB DDR4 RAM, and the best 100 Gigabit port price we've seen to date.

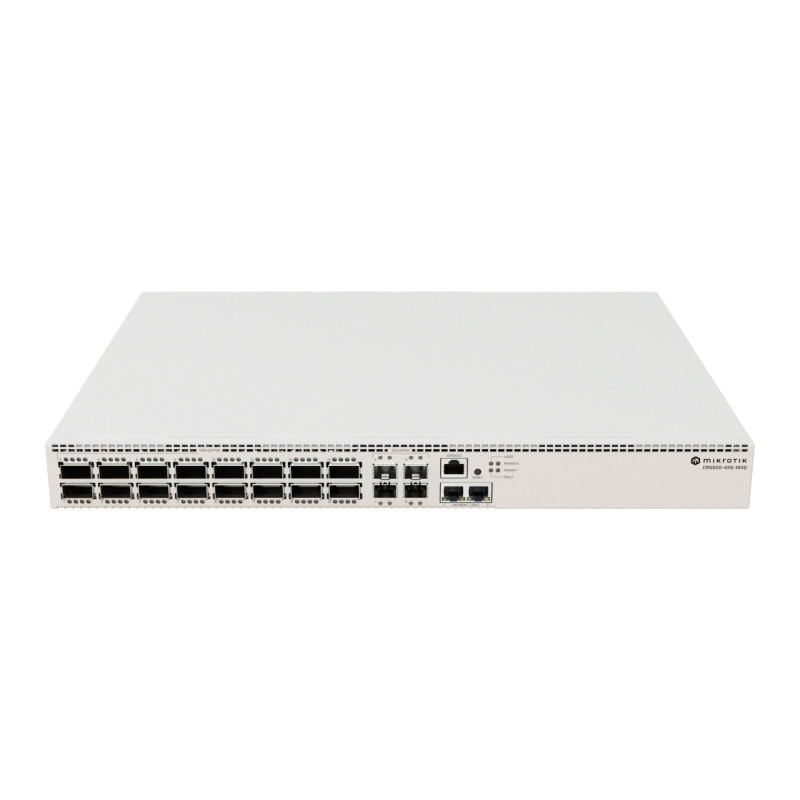

This switch features 16x 100 Gigabit QSFP28 ports, 4x 25 Gigabit SFP28 ports, and an additional pair of 10 Gigabit Ethernet ports. It provides great value for complex enterprise networks, data centers, multimedia studios, and other systems that would normally require multiple devices. Now, one CRS520 can replace them all!


Users of CCR devices will immediately recognize the powerful quad-core ARM processor running at 2 GHz and ask - why so much power for a switch? Here are two reasons:




  1. The CRS520 is more than a switch.You can use OSPF/BGP, out-of-band/management VPN, ACL, Jumbo frames and even L3HW Offloaded routing in it;




  2. Securing the future:As our partners at Marvell continue to improve their impressive switch chips, our software team is hard at work adding even more Hardware Offloaded features. You can expect software updates that will take the CRS520 to the next level! And all this - without any subscriptions or additional fees.

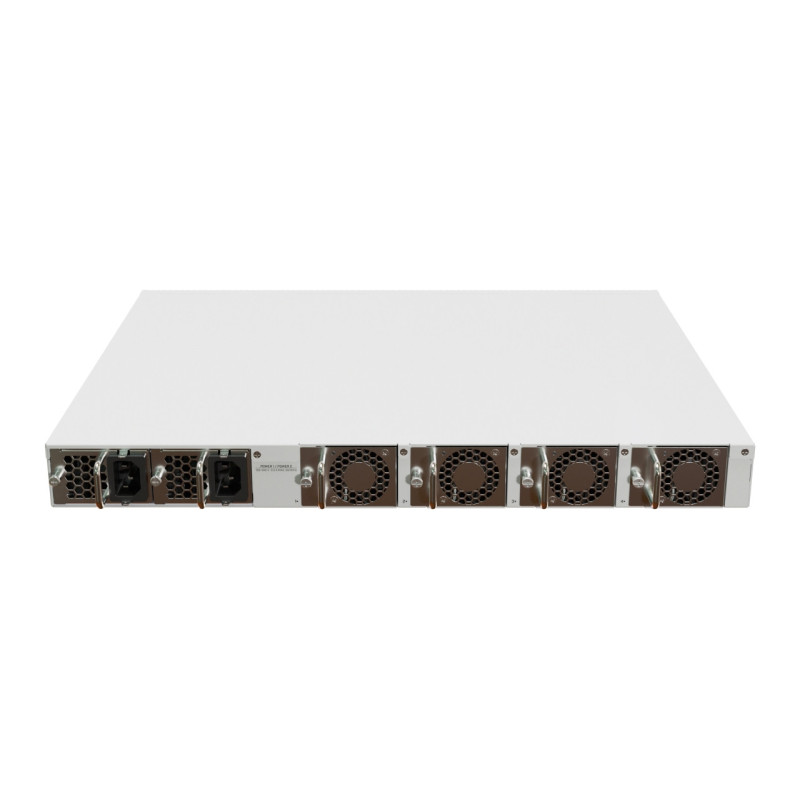

The switch has two hot swappable power supplies and four hot swappable fans for cooling. This device can also be powered using the PW48V-12V150W Hot Swap -48V DC power supply, which is available separately.


Product code CRS520-4XS-16XQ-RM
Architecture ARM 64bit
CPU AL52400
CPU core count 4
CPU nominal frequency 2GHz
Switch chip model 98CX8410
RouterOS license 5
Operating System RouterOS v7
RAM size 4GB
Storage size 128MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 50°C

Powering


Details
Number of AC inputs 2
AC input range 100-240
Frequency (Hz) 47-63
Max power consumption 183 W
Max power consumption without attachments 123W
Cooling type 4 fans

Ethernet


Details
Number of 1G/2.5G/5G/10G Ethernet ports 2

Fiber


Details
Number of 25G SFP28 ports 4
Number of 100G QSFP28 ports 16

Peripherals


Details
Serial console port RJ45

Other


Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certifications Approvals


Details
Certification CE, EAC, ROHS
IP 20
