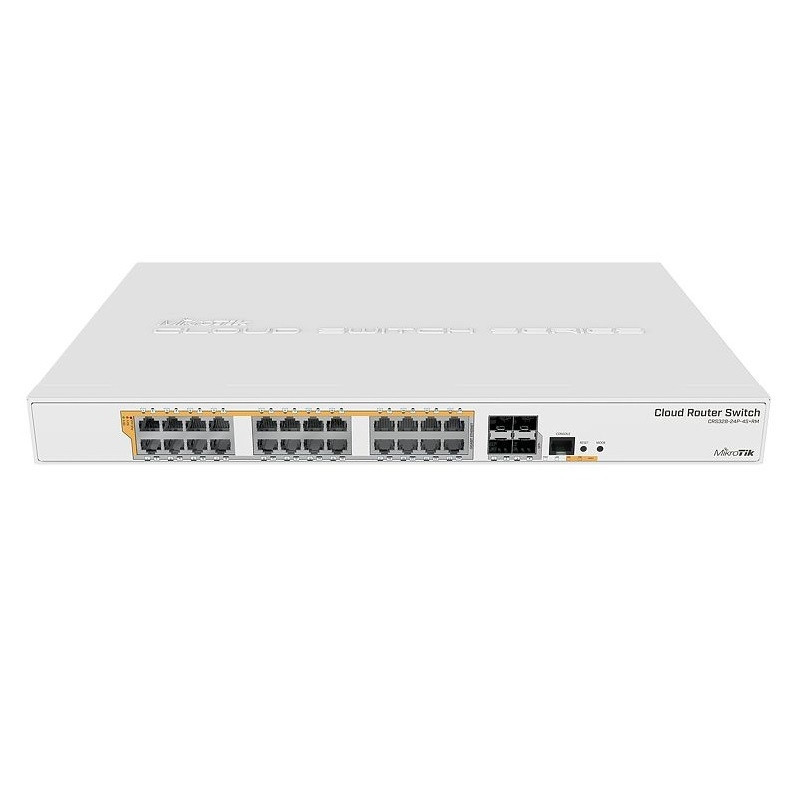

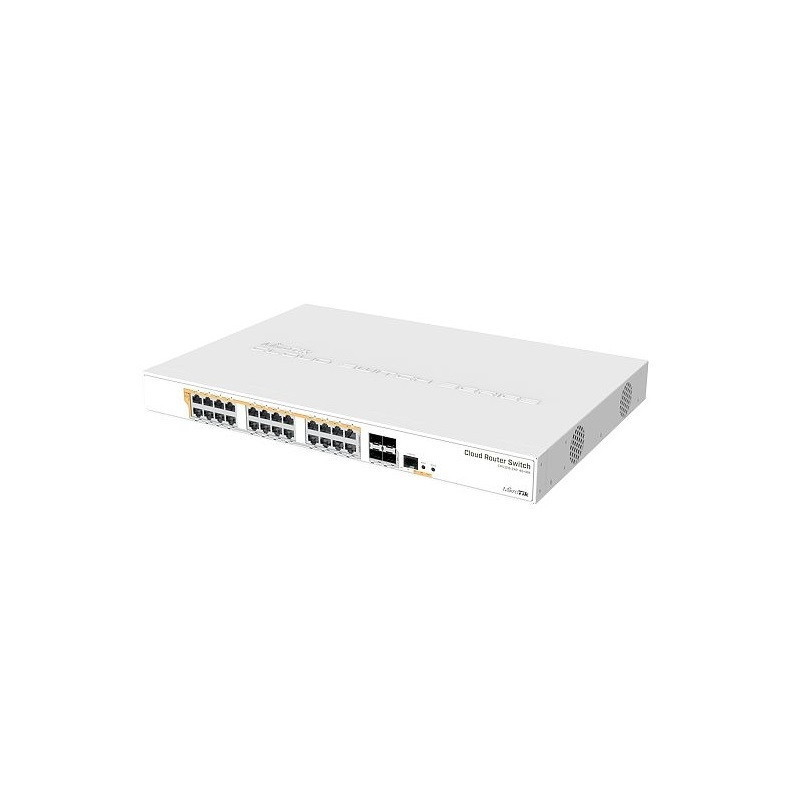

MIKROTIK Cloud Router Switch CRS328-24P-4S+RM

CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 'PoE' / Type 2 'PoE+') with auto-sensing. The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).

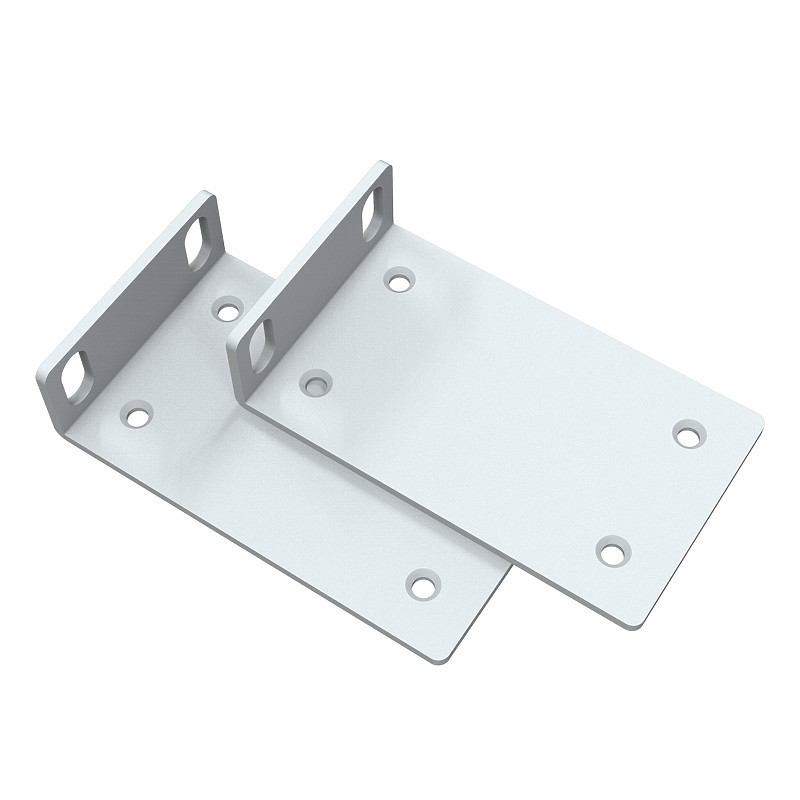

CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.

The device has a 'Dual boot' feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with a disruptive price, providing the best price/performance on the market.

Switching features

• Non-blocking Layer 2 switching capacity • 16K host table • IEEE 802.1Q VLAN • Supports up to 4K simultaneous VLANs • Port isolation • Port security • Broadcast storm control • Port mirroring of ingress/egress traffic • STP / RSTP / MSTP • Access Control List • MikroTik neighbor discovery • SNMP • 10218-byte jumbo frames support • IGMP snooping • IEEE 802.3ad and static link aggregation

Quick specifications

• 24 Gigabit Ethernet ports • 4 SFP+ ports • RJ45 serial console port • Non-Blocking throughput: 64 Gbps • Switching capacity: 128 Gbps • Forwarding rate: 95.2 Mpps • Maximum power consumption: 44 W (without PoE devices connected) • Supports PoE+ IEEE 802.3at/af and 26 V Passive PoE) • Temperature based fan control • 1U rackmount • Selectable power output per port (26 / 53 V)

Product code: CRS328-24P-4S+RM CPU: ARM v7 800 MHz RAM: 512 MB Storage type: Flash Storage size: 16 MB Switch chip model: 98DX3236A1 10/100/1000 Ethernet ports: 24 SFP+ cages: 4 Operating system: SwOS / RouterOS (Dual boot) Supported input voltage: 100 - 240 V Dimensions: 443 x 305 x 44 mm Operating temperature: -20°C .. +60°C tested Max power consumption: 44 W Serial port: RJ45 License level: 5
