MIKROTIK Cloud Router Switch CRS317-1G-16S+RM

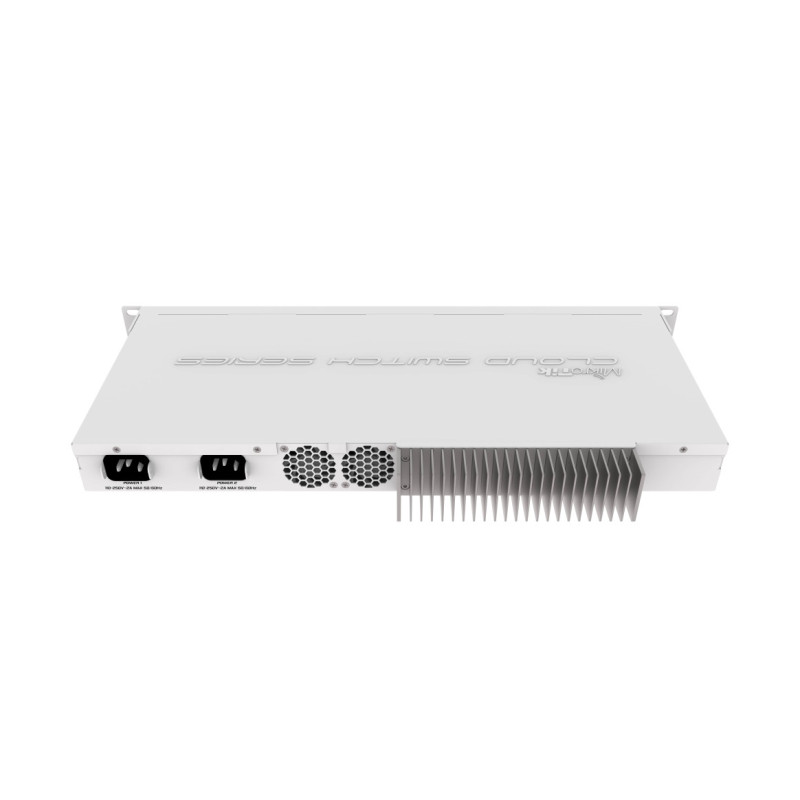

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management. CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network. The unit has dual redundant power supplies and passive cooling case, so it's completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.

• Boot option for SwOS or RouterOS • Non-blocking Layer 2 switching capacity • 16K host table • IEEE 802.1Q VLAN • Supports up to 4K simultaneous VLANs • Port isolation and Port security • MSTP • HW MPLS forwarding coming in future software update • SFP 1.25 and SFP+ 10Gbit module support • 800 MHz dual core CPU • Dual power supplies • Broadcast storm control • Port mirroring of ingress/egress traffic • Rapid Spanning Tree Protocol (RSTP) • Link Aggregation (LACP) • Access Control List • MikroTik neighbor discovery • SNMP v2/v3 • Rackmount and tabletop • Supports -20 to +60 C ambient temperatures • Passive cooling with automatic fan for high temperatures

'Dual boot' feature allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cages support both 1.25 Gb SFP and 10 Gb SFP+ modules.

Product code: CRS317-1G-16S+RM CPU: 98DX8216B0-BRR4C000 CPU Threads count: 2 CPU core count: 2 CPU nominal frequency: 800 MHz CPU temperature monitor: Yes Dimensions: 443 x 224 x 44 mm Max Power consumption: 42W AC input range: 110 - 240 V Redundant supply: Yes Active case cooling: Yes Operating System: RouterOS or SwitchOS (License level 6) SFP+ ports: 16 (supports both 1.25 Gb SFP and 10 Gb SFP+ modules; modules are not included), DDMI support Serial port: RJ45 Size of RAM: 1 GB Storage size: 16 MB Storage type: FLASH LEDs: 38 Serial port: RJ45 Operating temperature: -20 to 70° C
