MIKROTIK Cloud Router Switch
Product reference: 18-CRS418-8P-8G-2S+5axQ2axQ-RM

MIKROTIK Cloud Router Switch

MIKROTIK Cloud Router Switch

Product reference: 18-CRS418-8P-8G-2S+5axQ2axQ-RM

MIKROTIK Cloud Router Switch

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
411,64
420,04 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*

Why settle for a simple switch when you can have PoE output, high-speed fiber uplinks, USB for storage expansion, advanced network management and monitoring, and enough processing power for even some routing or L3 hardware task acceleration, all in a single 1U device and at the best price on the market?

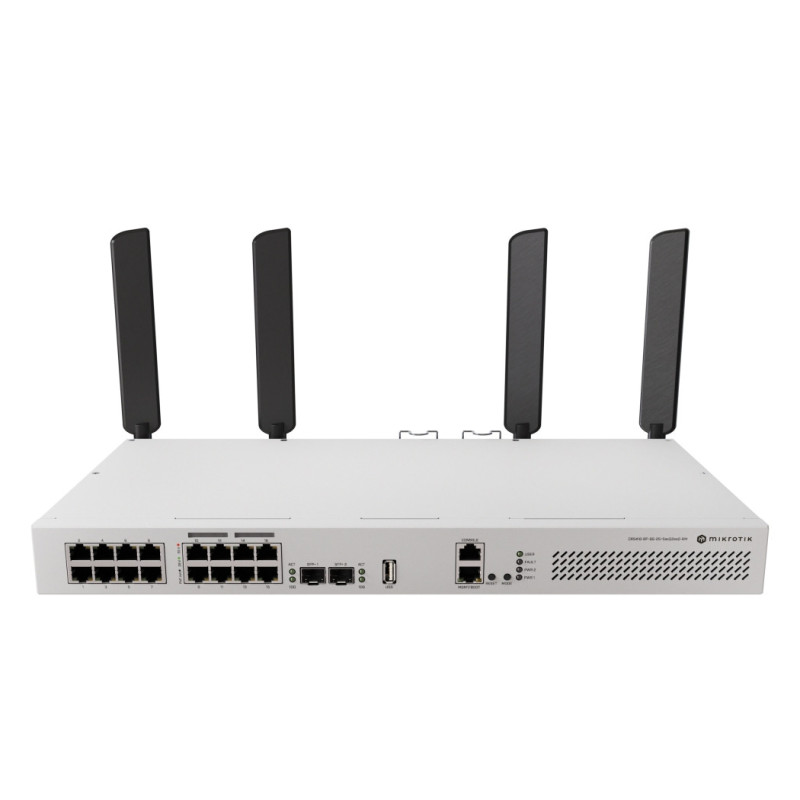

CRS418-8P-8G-2S+RMcombines 16 Gigabit Ethernet ports (eight of which with PoE output!), two 10G SFP+ slots, a USB 3 connection, and a powerful quad-core 2.2 GHz processor in a sturdy, neat rack-mountable chassis. There is also a separate Gigabit management port with a direct connection to the processor.


This is a serious upgrade for anyone looking to replace the 'jungle' of various devices with one smart multi-purpose solution - designed for real-world routing tasks, high-speed uplinks, and tidy cable management. Whether you're powering access points and CCTV cameras, managing a fast NAS with several modern work computers, or managing routing in a mid-sized office -CRS418handles everything easily and economically!




Wi-Fi where you need it most


CRS418-8P-8G-2S+5axQ2axQ-RM- is an all-in-one switch and router that also offers4×4 MIMO dual-band Wi-Fi 6connection - for fast and reliable connectivity wherever you need it. A great solution to simplify your server room or mid-sized office network equipment on a limited budget - now you no longer need a separate access point!

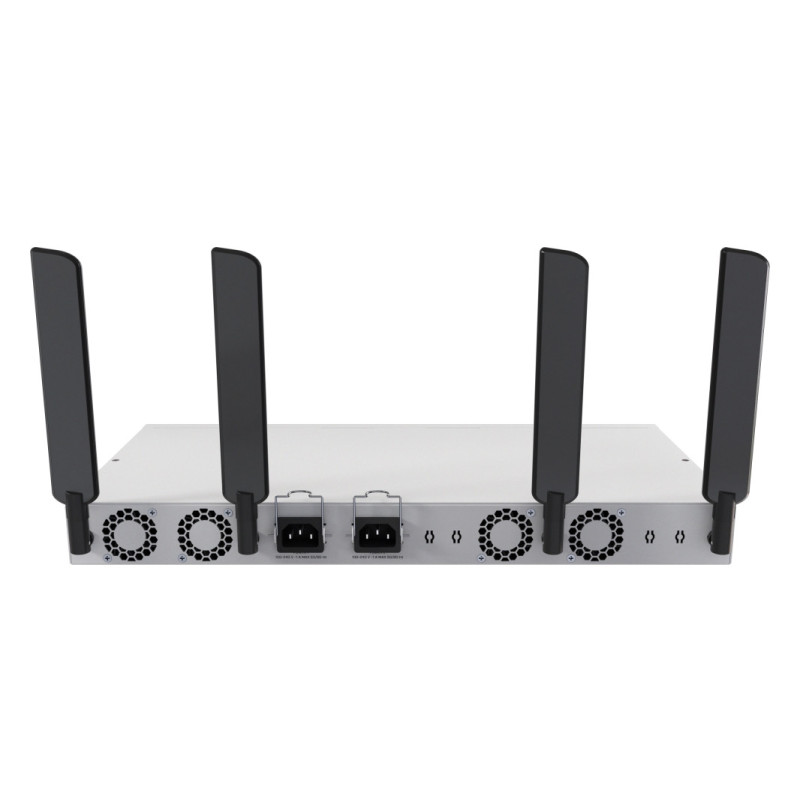

We understand that rack-mount devices are not known for their excellent wireless coverage. ThereforeCRS418 in Wi-Fi versionThere are special holes at the back for pigtail connections - so you can bring the antennas outside if necessary.





























































Product codeCRS418-8P-8G-2S+5axQ2axQ-RM
ArchitectureARM 64bit
CPUIPQ-8072A
CPU core count4
CPU nominal frequency2208 MHz
Switch chip model98DX226S
RouterOS license5
Operating System RouterOS v7
RAM size1GB
Storage size128MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-20°C to 70°C
IPsec hardware accelerationYes

Powering






































Details
Number of AC inputs2
AC input range100-240
Number of PSU slots2
Frequency (Hz)50-60
Max power consumption227 W
Max power consumption without attachments43 W
Cooling type4 fans

PoE-out






























Details
PoE-out portsEther9-Ether16
PoE out802.3af/at
Low voltage PoE-Out current limit1.1 A
High voltage PoE-Out current limit0.56 A
Total output power150

Wireless specifications


























































Details
Wireless 2.4 GHz Max data rate1148 Mbps
Wireless 2.4 GHz number of chains4
Wireless 2.4 GHz standards802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz5
Wireless 2.4 GHz chip modelQCN-5024
Wireless 2.4 GHz generationWi-Fi 6
Wireless 5 GHz Max data rate2400 Mbps
Wireless 5 GHz number of chains4
Wireless 5 GHz standards802.11a/n/ac/ax
Antenna gain dBi for 5 GHz6
Wireless 5 GHz chip modelQCN-5054
Wireless 5 GHz generationWi-Fi 6

Ethernet


















Details
10/100/1000 Ethernet ports17
Number of 1G Ethernet ports with PoE-out8

Fiber














Details
SFP+ ports2

Peripherals






























Details
Serial console portRJ45
Number of USB ports1
USB Power ResetYes
USB slot typeUSB 3.0 type A
Max USB current (A)1

Other






























Details
CPU temperature monitorYes
Current MonitorYes
PCB temperature monitorYes
Voltage MonitorYes
Mode buttonYes

Certifications Approvals


















Details
CertificationCE, FCC, IC, EAC, ROHS
IP20
