Manufacturer:
Mikrotik

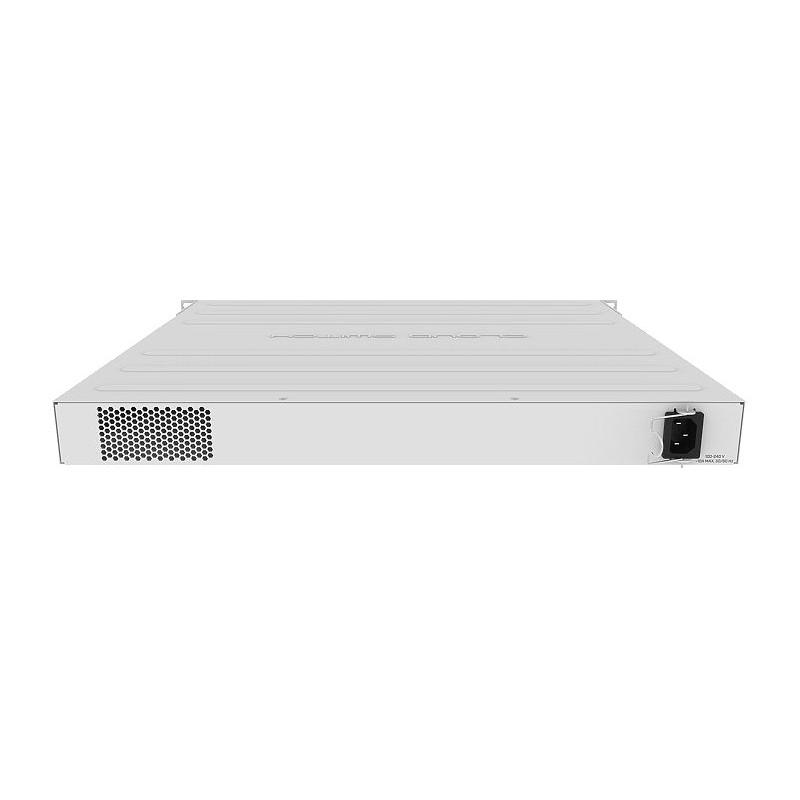

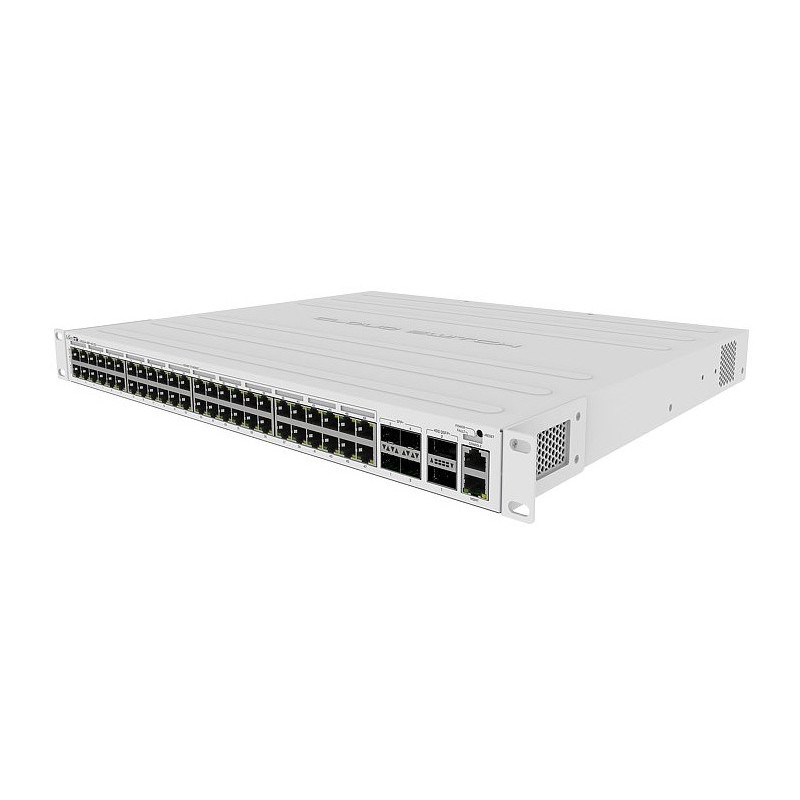

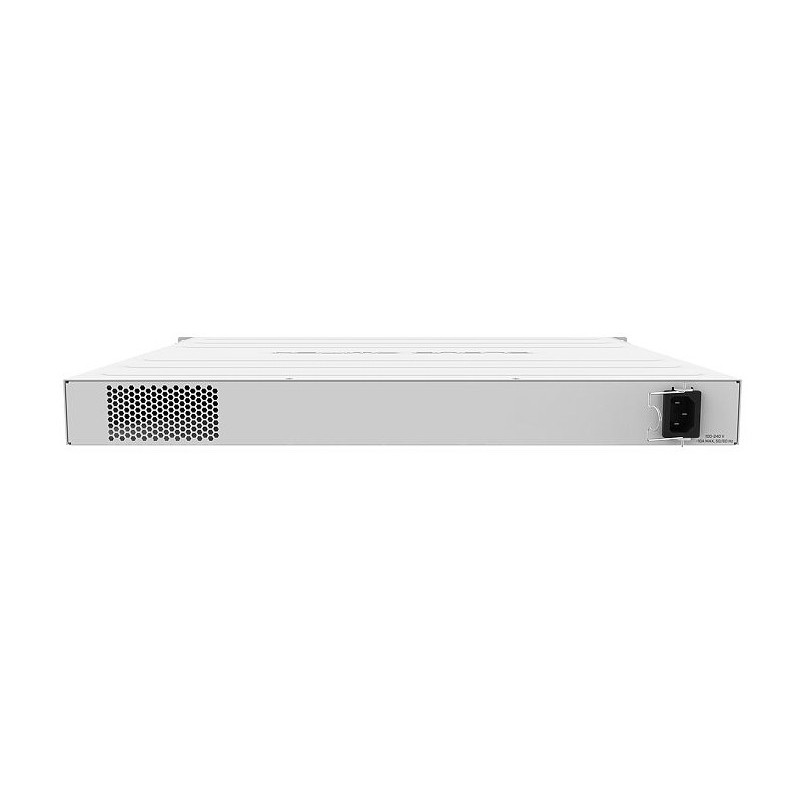

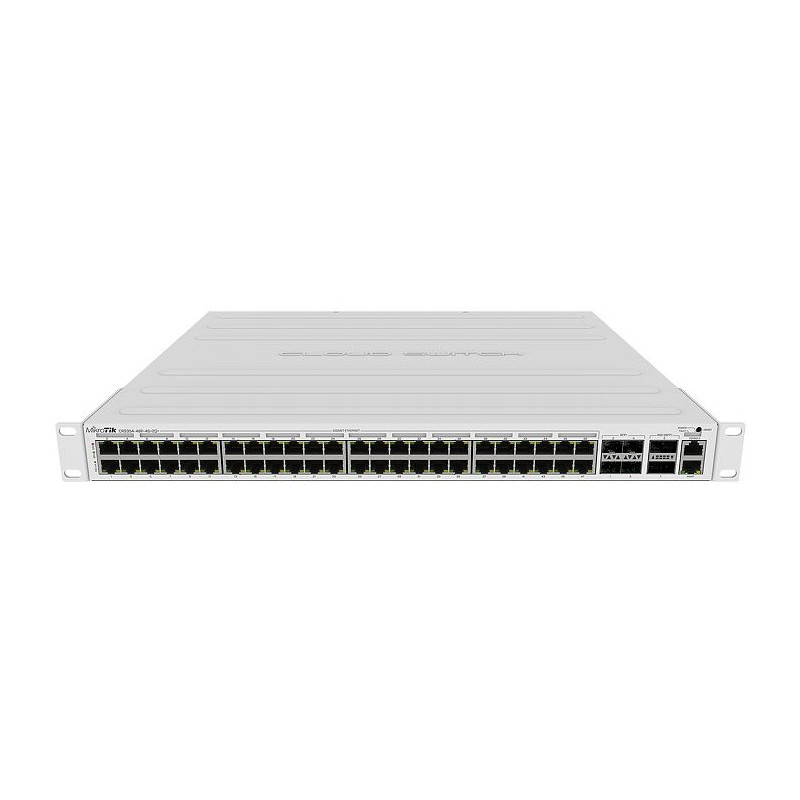

If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices - look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.

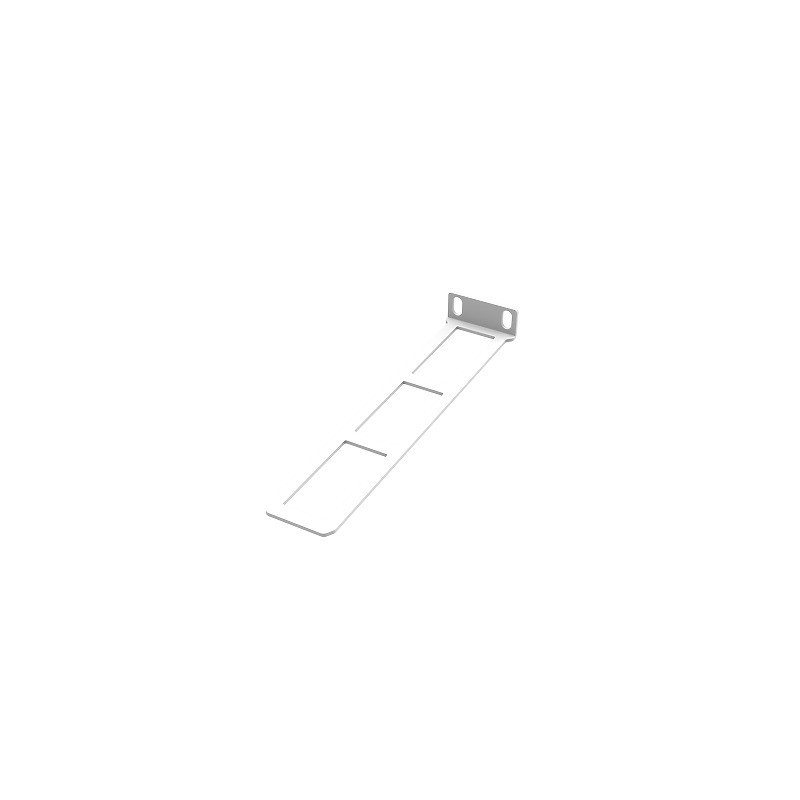

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 'PoE' / Type 2 'PoE+') with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a powerful power supply that can provide 750 W of power - this switch can handle a lot. And there is a special bracket for easy cable management.


CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market - it will make the perfect addition to a professional setup.


The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.


Specifications



























































Product codeCRS354-48P-4S+2Q+RM
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
CPU nominal frequency650MHz
Dimensions443 x 382 x 44 mm
License level5
Operating System RouterOS
RAM size64MB
Storage size16MB
Storage typeFLASH
Tested ambient temperature-20°C to 60°C
Suggested price$899.00

Powering























Number of AC inputs1
AC input range100-240
Max power consumption800W
Max power consumption without attachments85W

PoE-out































PoE-out ports48 ports with 802.3af/at and passive modes
PoE out802.3af/at
Max out per port output (input < 30 V)1000mA
Max out per port output (input > 30 V)570mA
Total output current27A at 26V OR 13.2A at 53V
Total output power700W

Ethernet















10/100 Ethernet ports1
10/100/1000 Ethernet ports48

Fiber















SFP+ ports4
Number of 40G QSFP+ ports2

Peripherals











Serial portRJ45

Other























CPU temperature monitorYes
Current MonitorYes
PCB temperature monitorYes
Voltage MonitorYes

Certifications Approvals











CertificationCE/RED, EAC, ROHS
