MIKROTIK Cloud Router Switch
MIKROTIK Cloud Router Switch





MIKROTIK Cloud Router Switch
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
A new level of power for your business

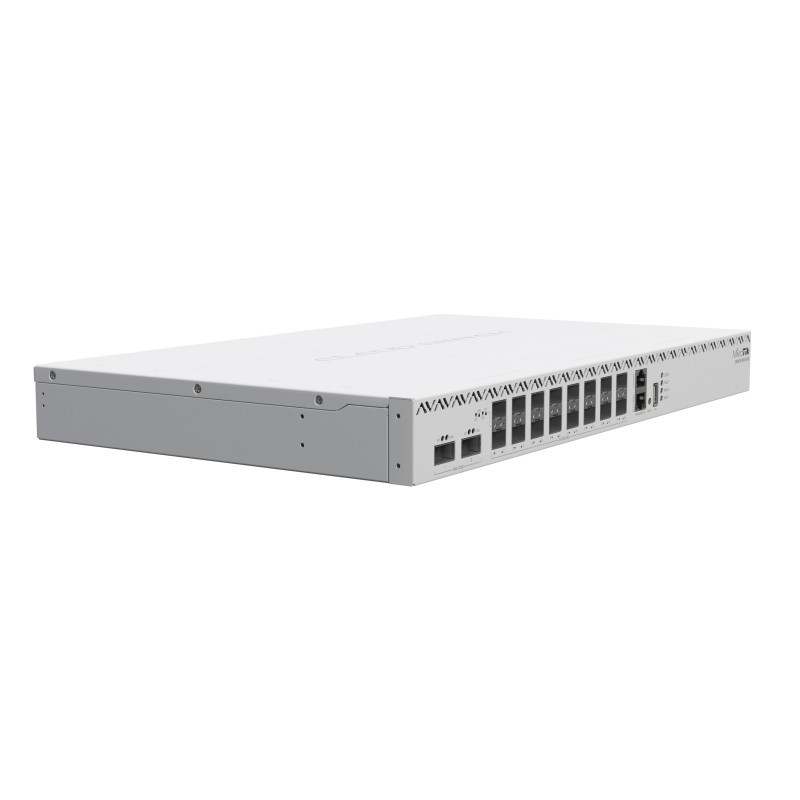

As we grow,For the 100 Gigabit product line, it's time to introduce a serious enterprise-grade switch. A switch that can handle high traffic whereCRS504The number of ports is not enough. Meet the impressiveCRS518-16XS-2XQ!
With 2x100 Gigabit QSFP28ports and 16x25 Gigabit SFP28With 1000 ports, it is an ideal, cost-effective addition to any enterprise network or data center. Dual, hot-swappable power supplies and fans ensure reliability and minimize downtime.
25-gigabit portsare backward compatible with 10 Gigabit and 1 Gigabit SFP devices. Freely combine them according to your needs!

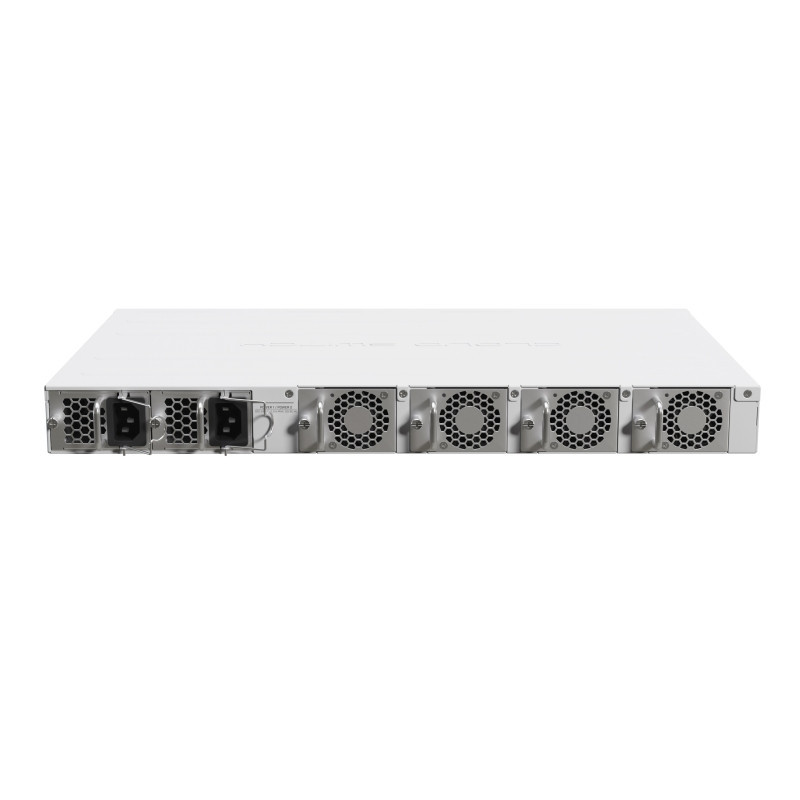

Two interchangeable power supplies support a wide voltage range (100-240 V). The board itself uses up to 45 W of power, and the maximum power consumption with all accessories reaches up to 77 W. This device can be a bit power hungry compared toCRS504, but you would also have 16x 25-Gigabit ports, right?
100 Gigabit product linecontinues to expand: switches, routers, cables and QSFP28 modules. If you want real speed and maximum flexibility at the best price on the market - chooseMikrotik!
There are no barriers to this switch: it supports VLAN (802.1Q, 802.1ad), L3 hardware offloaded routing, ACL, LACP, MLAG, Jumbo frames, IGMP/MLD snooping, and more. Keep up to dateRouterOSand enjoy the realCRSpower!
| Product code | CRS518-16XS-2XQ-RM |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650MHz |
| RouterOS license | 6 |
| Operating System | RouterOS (v7 only) |
| RAM size | 64MB |
| Storage size | 16MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Frequency (Hz) | 47-63 |
| Max power consumption | 95W |
| Max power consumption without attachments | 45W |
| Cooling type | 4 fans |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| Number of 25G SFP28 ports | 16 |
| Number of 100G QSFP28 ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certifications Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
