MIKROTIK Cloud Core Router CCR2004-16G-2S+

Like other CCR2004 series models, this CCR also features the Annapurna Labs Alpine v2 processor with 4 x 64-bit ARMv8-A Cortex-A57 cores running at 1.7 GHz. This powerful router outperforms all previous CCR models in single-core performance, which is a key factor when it comes to complex network processes. For example, queuing. But that's not all! This model also has the best single-core performance per watt and the best overall performance per watt of all CCR devices. Better for the planet, better for your bills - a total win!

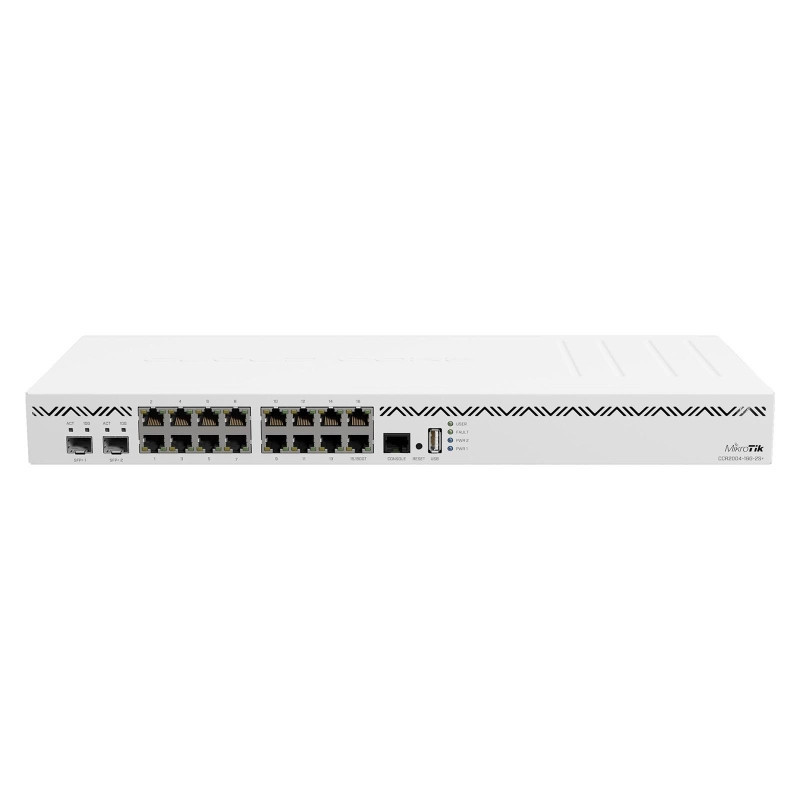

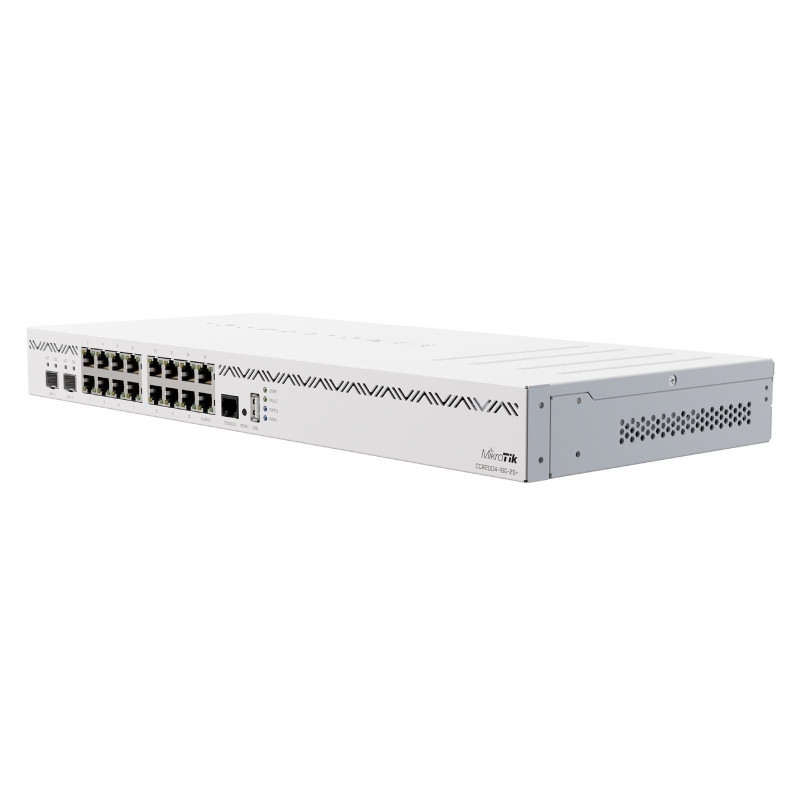

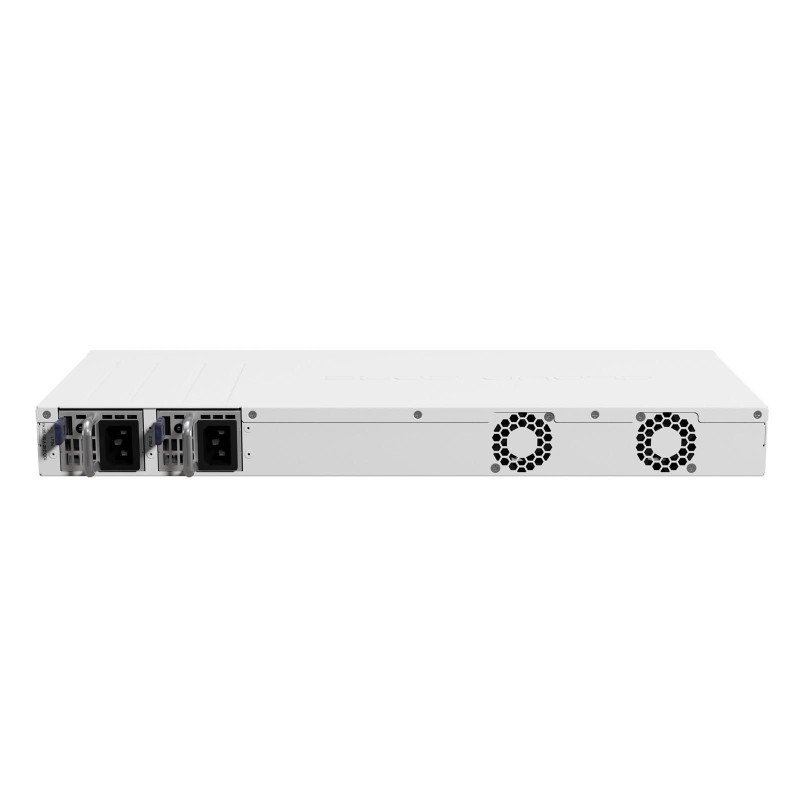

The new router has 18 wired ports, including 16 Gigabit Ethernet ports and two 10G SFP+ connectors. There is also an RJ-45 console port on the front panel. Like all CCR devices, it is housed in a classic white 1U rackmount case. Dual redundant power supplies are built in, so that's one less thing to worry about. And, of course, active cooling to keep temperatures optimal. Each group of eight Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch chipset. Each switch connector to the processor has a 10 Gbps bidirectional line. The same applies to the SFP+ connectors - separate 10 Gbps bidirectional lines. The devices have 4 GB of DDR4 RAM and 128 MB of NAND memory.

So, as you can see - no limitations on data flow bandwidth. As long as the processor is able to do the processing, all ports can reach maximum speed. And this processor is really capable of a lot. Looking at the performance, it can be seen that it competes with our CCR1009. It even surpasses it with processor-intensive configurations! And if that's not enough - it even reaches the performance of the CCR1016.

The best part? This new CCR is one of the most affordable options - not only in the CCR series, but on the market in general. Some of the most common uses for this device: Gigabit Ethernet ports for internal networking; SFP+ ports for external connections and connections. A great all-in-one solution for small and medium-sized businesses - simple and effective.

With the new CCR2004 you can take your office network to the next level. Without going over your budget.

Product code: CCR2004-16G-2S+ CPU: AL32400 1.7 GHz CPU architecture: ARM 64bit CPU core count: 4 Size of RAM: 4 GB RAM type: DDR4 Storage: 128 MB, NAND Number of 1G Ethernet ports: 16 Number of 10G SFP+ ports: 2 Operating system: RouterOS (License level 6) Switch chip model: 88E6191X, 88E619X Dimensions: 443 x 210 x 44 mm Operating temperature: -20°C to +60°C

PoweringNumber of AC inputs: 2 AC input range: 100-240 V Max power consumption (without attachments): 35 W Max power consumption: 48 W

Certifications ApprovalsCertification CE, FCC, IC
