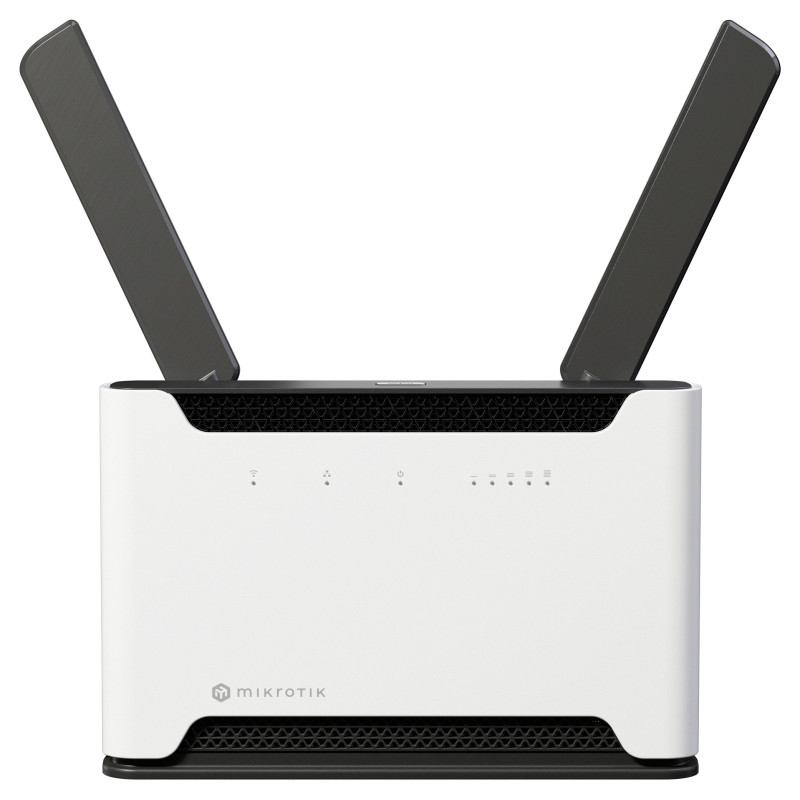

Mikrotik Chateau PRO ax

Mikrotik Chateau PRO ax. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3548 Mbit/s. Power over Ethernet (PoE). Product colour: Grey, White. Power consumption (max): 55 W

A Wi-Fi 6 home access point for the advanced users - it comes with an exceptionally powerful wireless system and a matching CPU.

more traffic than ever before. With its unstoppable quad-core ARM CPU running at 2.2 GHz and our latest cutting-edge wireless chip, Chateau PRO ax leverages 4 spatial streams to achieve double the data rate of the usual dual-chain devices, ensuring that your network is always fast, reliable, and ready to support even the most demanding tasks. Remember - you will need a device that supports 4 spatial streams on the other side of the connection to fully utilize the Chateau PRO ax.

With 5x Gigabit Ethernet ports and a USB 3.0 port, you can transform this Chateau into a home media server by plugging in an additional SSD storage. Or you could use the USB to add an LTE modem for backup!

Advanced container setups, bonding, or high-speed 4x4 MIMO wireless setups - that's where the Chateau PRO ax can really shine! Also, its increased number of radio transceivers provides significantly improved wireless coverage and beamforming performance.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 3548 Mbit/s
Maximum data transfer rate (2.4 GHz): 1148 Mbit/s
Maximum data transfer rate (5 GHz): 2400 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Ports & interfaces

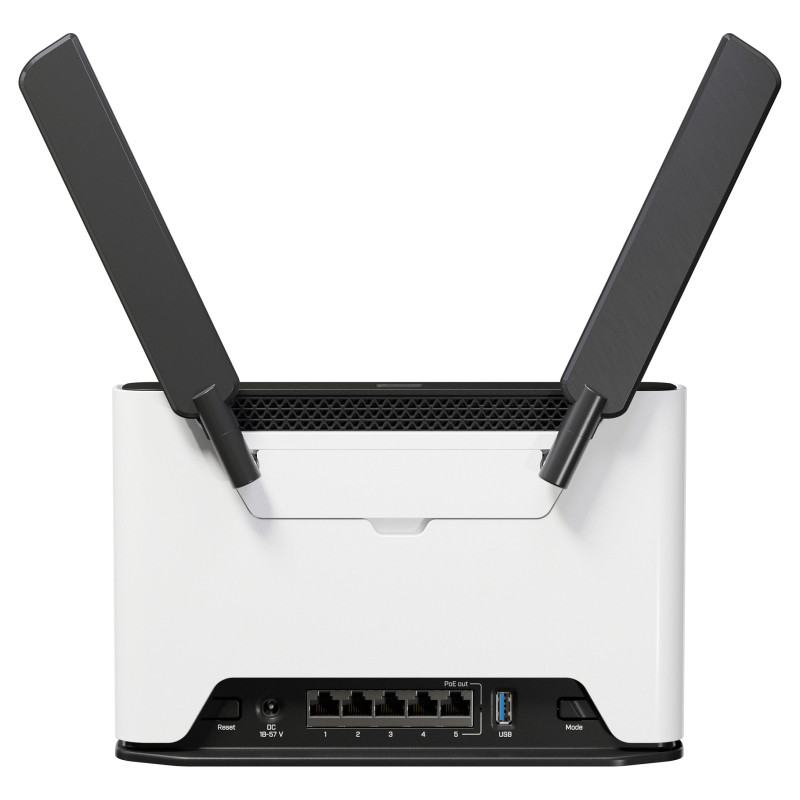

Ethernet LAN (RJ-45) ports: 5
USB 2.0 ports quantity: 1
USB connector type: USB Type-A
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
DC voltage range: 18 - 57 V
Power consumption (max): 55 W

Design

Placement: Table
Product colour: Grey, White
International Protection (IP) code: IP20

Antenna

Antenna type: External
Antennas quantity: 2

Performance

Feature: Built-in processor
Processor frequency: 2208 MHz
Internal memory: 1024 MB

Certificates

Certification: CE, FCC, IC, EAC, ROHS
