Manufacturer:
Mikrotik

Wi-Fi has to be fast, reliable, easy to manage, it must reach every room and every corner. That is exactly what Audience devices can deliver in grand style - even in the biggest houses!


Audience LTE6 kit is a tri-band (one 2.4 GHz two 5 GHz) home access point with LTE support and meshing technology. If you need Wi-Fi in a huge building with all kinds of obstacles, simply add more Audience devices to your network - with a press of a button they will sync seamlessly and create a single Wi-Fi network to cover the entire premises. The initial setup is also very simple - download the iOS or Android MikroTik app, it will connect to the router and guide you through a quick setup process.


In some cases a single Audience unit might be able to replace several other routers - in our tests it covered 1858 m² (20000 square feet) easily. It depends on the amount of obstacles, Wi-Fi clients and interference, so results may vary.


Cables can no longer limit you. CAT6 LTE delivers speed up to 300 Mbps with low latency, so having a traditional Ethernet connection is not a must-have for streaming high quality videos or gaming. Alternatively, you can use the two Gigabit Ethernet ports and keep the LTE option for backup. One of the Ethernet ports supports PoE for powering the device.



Dual-chain 2.4 GHz and 5 GHz wireless coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5 GHz channel for your PC or TV.


Order your Audience today and start living in the future. The future of easy and elegant networking.















































Product codeRBD25GR-5HPacQD2HPnDR11e-LTE6
ArchitectureARM 32bit
CPUIPQ-4019
CPU core count4
CPU nominal frequency716MHz
License level4
RAM size256MB
Storage size128MB
Storage typeNAND
Tested ambient temperature-30°C to 60°C

Powering































PoE inPassive PoE
PoE input voltage24-57V
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-57V
Max power consumption30W
Max power consumption without attachments20W

Mobile



































2G CategoryClass12
3G CategoryR7 (21Mbps Downlink, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
LTE Category6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
2G bands2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G bands1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)

Wireless























































































Wireless 2.4 GHz Max data rate300 Mbps
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz3.5
Wireless 2.4 GHz chip modelIPQ-4019
Wireless 2.4 GHz generationWi-Fi 4
Wireless 5 GHz Max data rate867 Mbps
Wireless 5 GHz number of chains2
Wireless 5 GHz standards802.11a/n/ac
Antenna gain dBi for 5 GHz4.5
Wireless 5 GHz chip modelIPQ-4019
Wireless 5 GHz generationWi-Fi 5
Wireless 5 GHz Max data rate1733 Mbps
Wireless 5 GHz number of chains4
Wireless 5 GHz standards802.11a/n/ac
Antenna gain dBi for 5 GHz4.5
Wireless 5 GHz chip modelQCA9984
Wireless 5 GHz generationWi-Fi 5

Ethernet











10/100/1000 Ethernet ports2

Peripherals















Number of SIM slots1 Modem (Micro SIM)
MiniPCI-e slots1

Certifications Approvals











CertificationCE/RED, FCC, IC, EAC, ROHS

Wireless specifications










































2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s26-100
11MBit/s26-94
6MBit/s29-96
54Mbps26-80
MCS029-96
MCS725-75




































5GHzTransmit (dBm)Receive Sensitivity
6MBit/s28-95
54Mbps24-78
MCS028-95
MCS723-75
MCS921-70




































5GHzTransmit (dBm)Receive Sensitivity
6MBit/s32-96
54Mbps28-80
MCS032-96
MCS727-77
MCS925-72

Included parts

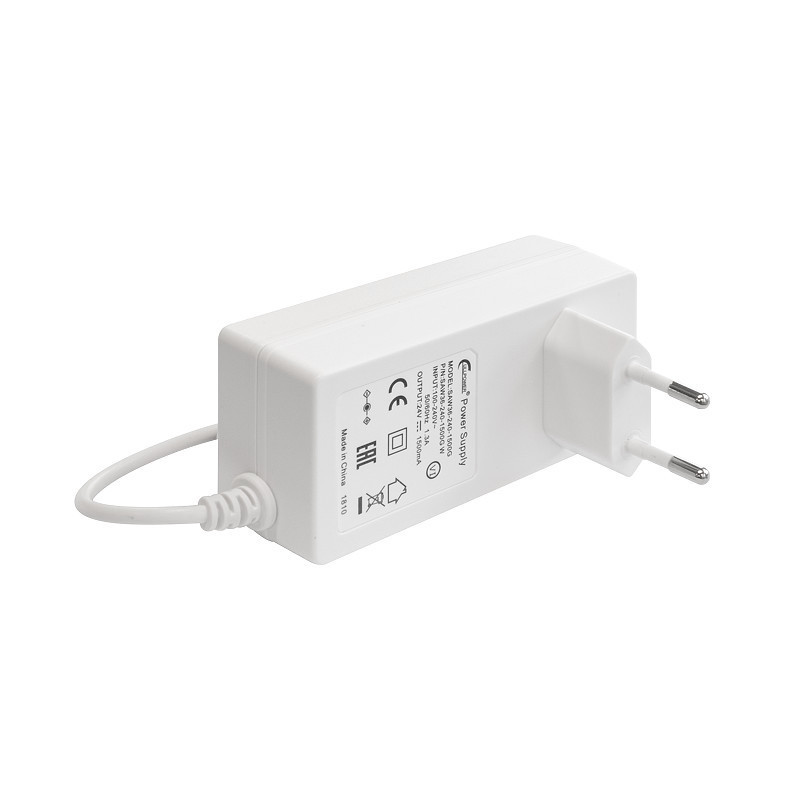

  • 24V 1.5A power adapter

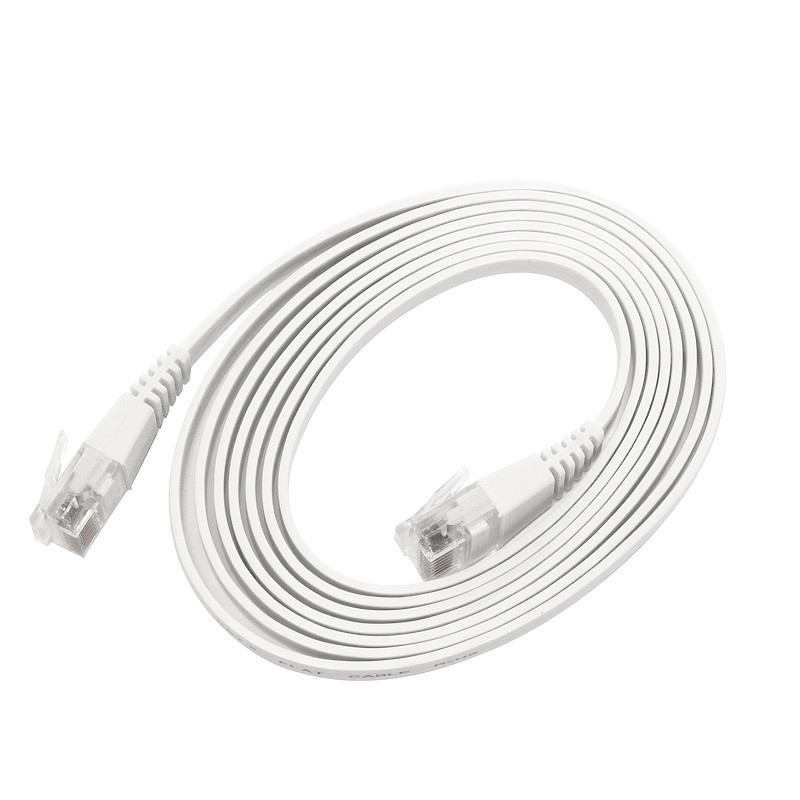

  • Ethernet cable
