MIKROTIK 5G Outdoor Omnidirectional Router LAMP 5G R16

Not every location has a clear line to a single base station. In cities, ports, industrial sites, and busy transport hubs, there may be several towers within reach - and network conditions can change throughout the day.

LAMP 5G R16 takes a different approach. Instead of locking onto a single direction, its omnidirectional antenna system can connect to the best available network around it, helping maintain reliable service even when conditions change. A tower goes offline? Network conditions change? A better signal becomes available? LAMP 5G R16 can adapt without requiring antenna realignment.

Deploy devices without handling physical SIM cards. LAMP 5G R16 features a built-in eSIM, allowing operators to activate data plans remotely and bring new installations online in minutes . It is fully compatible with MikroTik Connectivity - Mikrotik's simple pre-activated data service that helps you get connected quickly, whether you're deploying a single device or managing a large network. Need even more flexibility? LAMP 5G R16 also supports third-party eSIM providers and multiple eSIM profiles. Store different operator plans on a single device and switch between them as your connectivity requirements change. Whether you're managing backup connections, roaming deployments, or multi- operator networks, LAMP gives you more options without needing to swap physical SIM cards.

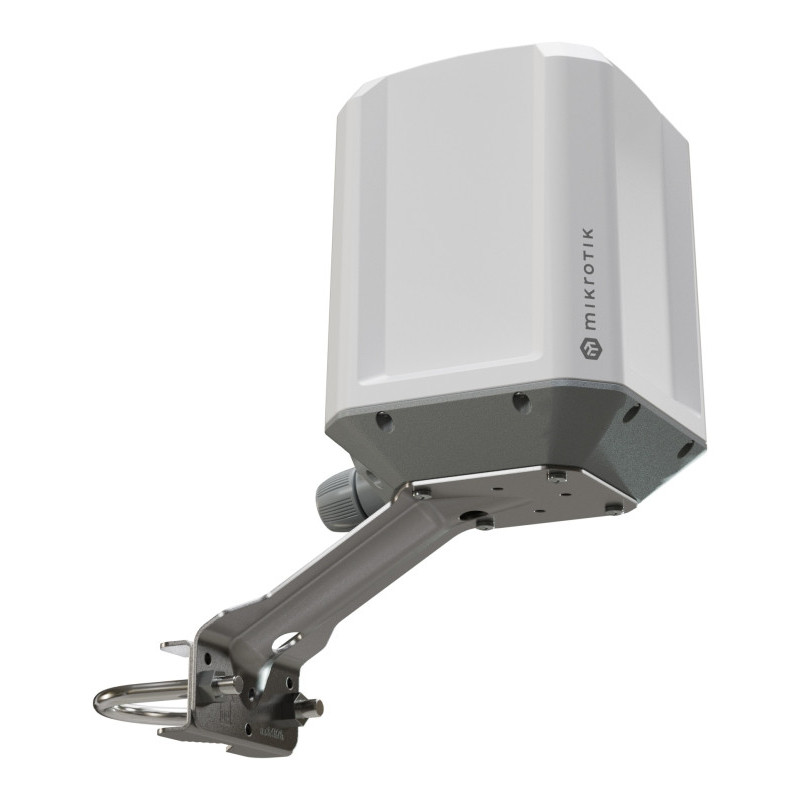

Rain, dust, heat, cold, or salty sea air - LAMP 5G R16 is ready for it. Designed to meet the EN 60945 maritime standard, together with its IP67-rated enclosure and stainless-steel mounting bracket, it is a reliable choice for demanding outdoor and marine deployments.

Whether deployed at ports, marinas, coastal infrastructure, or aboard vessels, the device is designed to meet the environmental and electromagnetic requirements expected in marine communication environments. Built-in GNSS support provides access to GPS, Galileo, BeiDou, and QZSS satellite systems. This enables accurate positioning information for fleet management, asset tracking, remote infrastructure, and location-aware applications.

Product code: LAMPGMRG520F-EU
Architecture: ARM 64bit
CPU: 88F3720
CPU core count: 2
CPU nominal frequency: 800 MHz
CPU Threads count: 2
RouterOS license: 3
Operating System: RouterOS v7
Size of RAM: 512 MB
Storage size: 32 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C

Powering

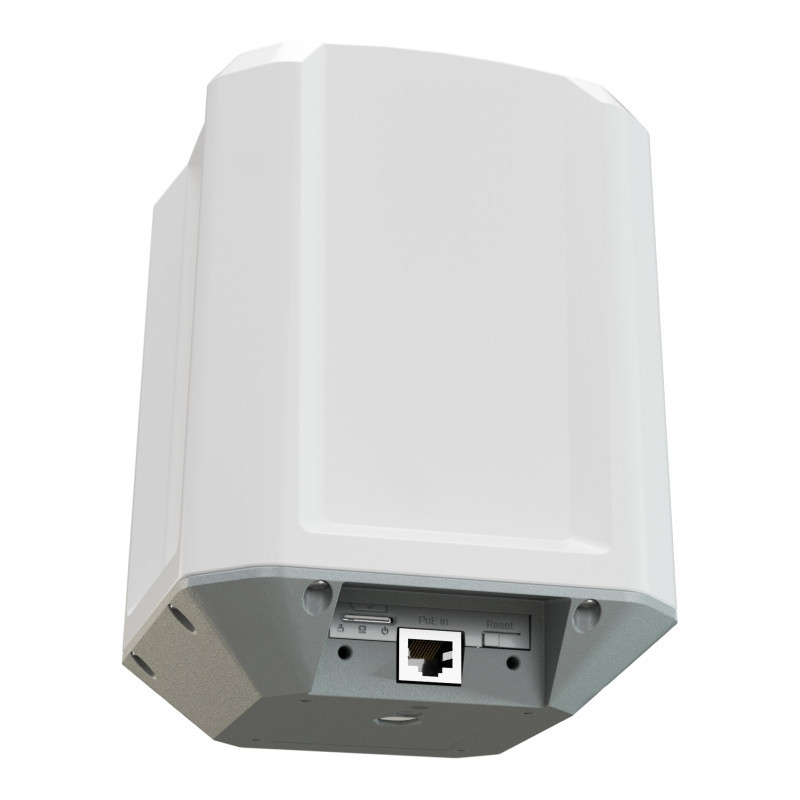

Number of DC inputs: 1 (PoE-IN)
Max power consumption: 10 W
Max power consumption without attachments: 10 W
PoE in: 802.3af/at
Cooling type: Passive
PoE in input Voltage: 12-56 V

Mobile

3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
3G bands:
1 (2100 MHz)
5 (850 MHz)
8 (900 MHz)
LTE Category: 20 (DL: 2.0 Gbps; UL: 200 Mbps)
MIMO DL: 4x4
MIMO UL: 2x2
LTE FDD bands:
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)
LTE TDD bands:
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
42 (3500 MHz)
43 (3700 MHz)
5G NSA FDD bands:
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
5G NSA TDD bands:
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
75 (1500 MHz)
76 (1500 MHz)
77 (3700 MHz)
78 (3500 MHz)
5G SA FDD bands:
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
5G SA TDD bands:
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
75 (1500 MHz)
76 (1500 MHz)
77 (3700 MHz)
78 (3500 MHz)
TAC: 86945405

Ethernet

10/100/1000 Ethernet ports: 1
Number of 1G Ethernet ports with Reverse PoE: (PoE-in): 1

Peripherals

Number of SIM slots: 1 Modem (Micro SIM)
Number of M.2 slots: 1

Other

eSIM: Yes

Certification Approvals

Certification: CE, EAC, ROHS
IP: 67
