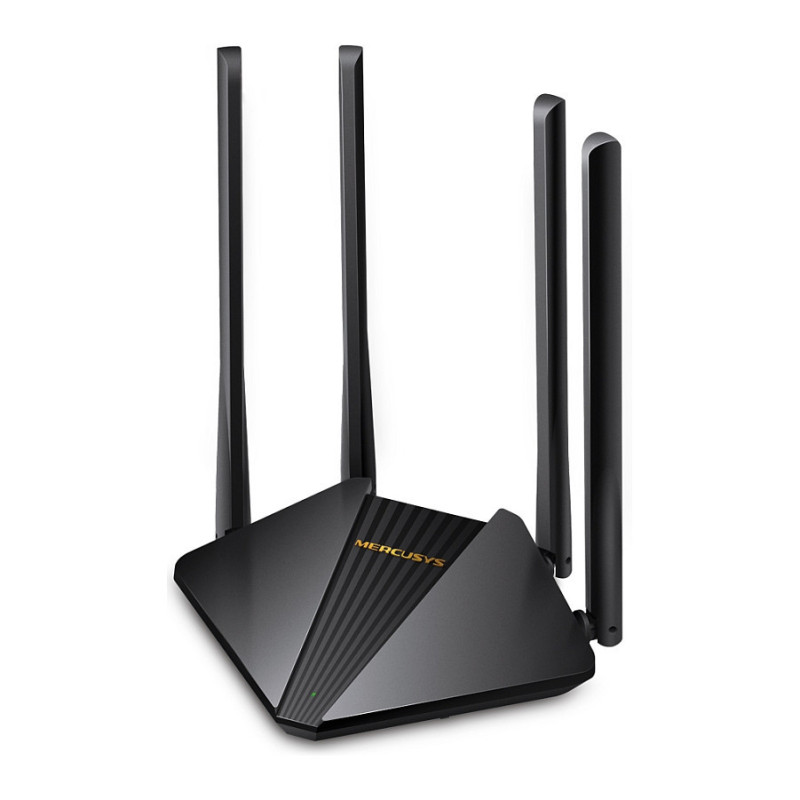

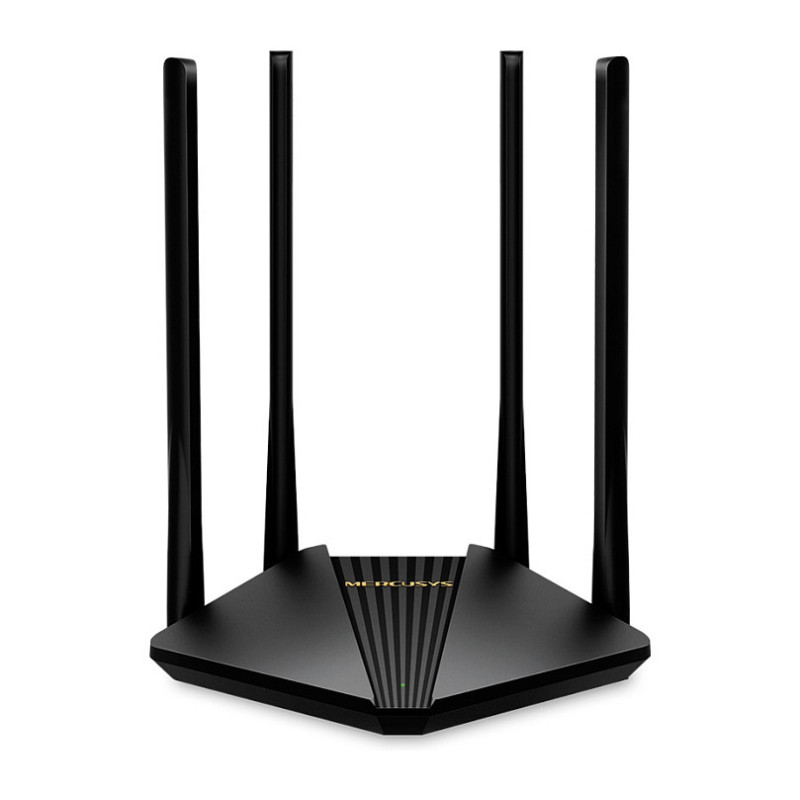

Mercusys MR30G wireless router

Mercusys AC1200 Wireless Dual Band Gigabit Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1167 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA-PSK, WPA2-PSK, Firewall security: SPI Firewall, IP/MAC Address Binding, NAT functionality: Port Forwarding, Port Triggering, UPnP, DMZ. Supported network protocols: PPPoE/L2TP/PPTP

Live Your Digital Life at Gigabit Speed
AC1200 Wireless Dual Band Gigabit Router

AC1200 Gigabit Speeds
Dual Band WiFi Delivers Fast Connections for All Devices
Complying with the powerful 802.11ac standard, MR30G delivers blazing-fast WiFi speeds up to 1.2 Gbps. Choose the 2.4 GHz band (300 Mbps) that transmits signals with better wall penetration for longer distance as you browse the internet, email a colleague, or share a link on social media. When you're streaming HD videos, gaming, or other bandwidth-intensive tasks, choose the 5 GHz band (867 Mbps) which delivers higher speeds with less interference

High-Gain Antennas with Beamforming
Targeted Signals that Penetrate Walls
Four external 5 dBi high-gain antennas with well-designed internal structures greatly increase transmission performance, covering more rooms. Advanced Beamforming technology automatically locates wireless devices and forms targeted, highly efficient wireless connections, making your connections more stable.

Powerful Signal Amplifiers
Strong WiFi Signals Throughout Your Home
MR30G unleashes the full potential of your network by strengthening signal transmissions with power amplifiers, and accelerating signal capture with low-noise amplifiers. This means your home WiFi has improved range and full-signal strength for every device.

Gigabit Wired Speeds
Full Gigabit Ports for PCs, IPTVs, and Game Consoles
Equipped with full gigabit ports which are 10× faster than Ethernet ports, MR30G transfers data at dizzying speeds for peak performance. Connect your PCs, IPTVs, and game consoles to MR30G for robust stability.

Easily Manage Your Home Network

Parental Controls
Establish appropriate policies to protect children for responsible, safe internet access

Guest Network
Allows guests to join your WiFi network—all while protecting your privacy—making sharing easy and secure

Quality of Service
Prioritizes devices you select to perform better

Multi-Mode for Flexible Application Scenarios

Router Mode
Creates a wireless network for all your WiFi devices

Access Point Mode
Extends a wired network and makes it wireless

Simple Setup
No Need to Call for Help
Simply follow the step-by-step instructions on the intuitive webpage to get set up in minutes. No complicated configuration required.

WAN connection

Feature: Ethernet WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 1167 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)

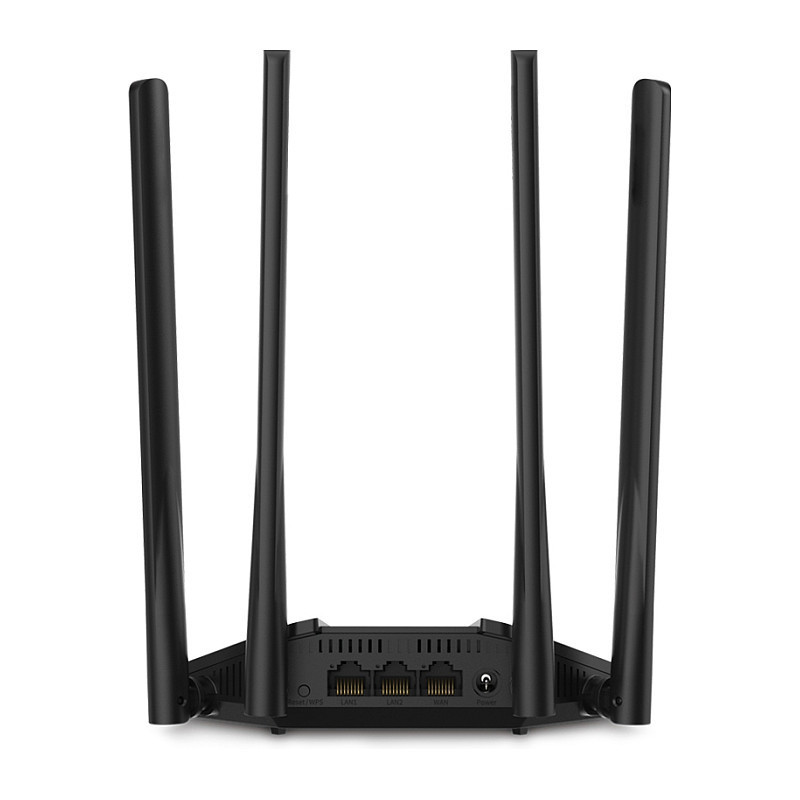

Ports & interfaces

Ethernet LAN (RJ-45) ports: 3
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Reset button
Feature: WPS push button
Feature: MU-MIMO technology
Feature: MIMO

Security

Security algorithms: WPA-PSK, WPA2-PSK
Feature: Firewall
Firewall security: SPI Firewall, IP/MAC Address Binding
Feature: Guest access
Feature: Access Control List (ACL)
Feature: Parental control
Feature: Network address translation (NAT)
NAT functionality: Port Forwarding, Port Triggering, UPnP, DMZ

Protocols

Feature: DHCP client
Feature: DHCP server
Supported network protocols: PPPoE/L2TP/PPTP

Design

Product colour: Black
LED indicators: Status
Product type: Tabletop router

Packaging content

Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Antenna included
Feature: Quick installation guide

Antenna

Antenna design: External
Antenna gain level (max): 5 dBi
Antennas quantity: 4

Power

Power source type: AC
Feature: External power adapter

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 159.7 mm
Depth: 125.9 mm
Height: 37.1 mm

Packaging data

Package type: Box
