Mercusys MB230-4G wireless router

Mercusys 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1200 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, 3G standards: HSPA, HSPA+, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP, WPA-PSK, WPA2-PSK, WPA3-SAE

Faster and Smoother
with 4G+ Speed and
Dual Band WiFi
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

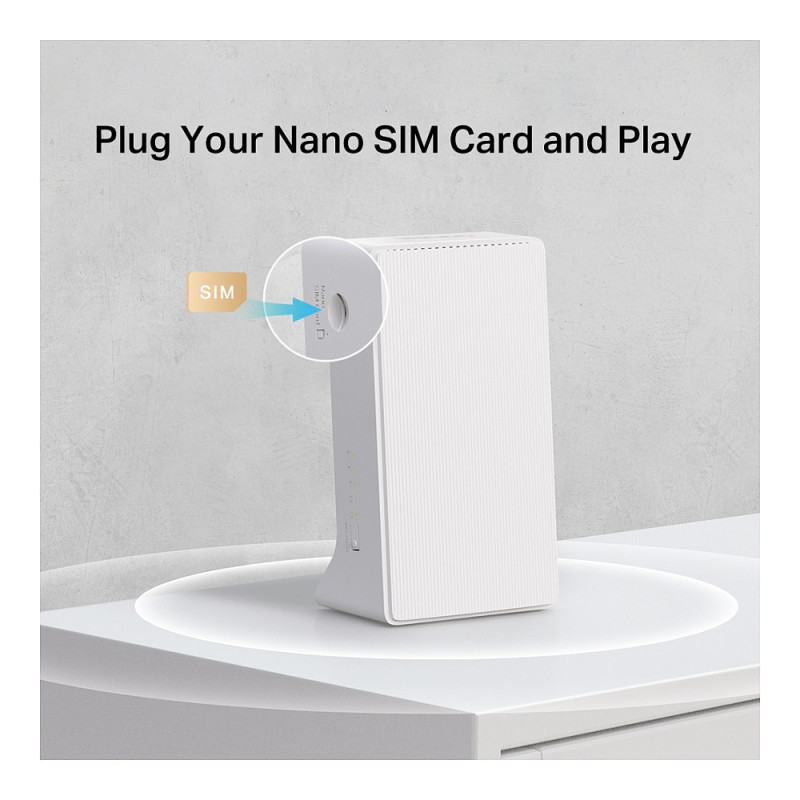

Plug Your Nano SIM Card and Play
Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide. Insert a nano SIM card and turn on the router to share your 4G LTE network with multiple Wi-Fi devices.

Get Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility and the utilize fast and stable Wi-Fi, whether you're at home or working remote.

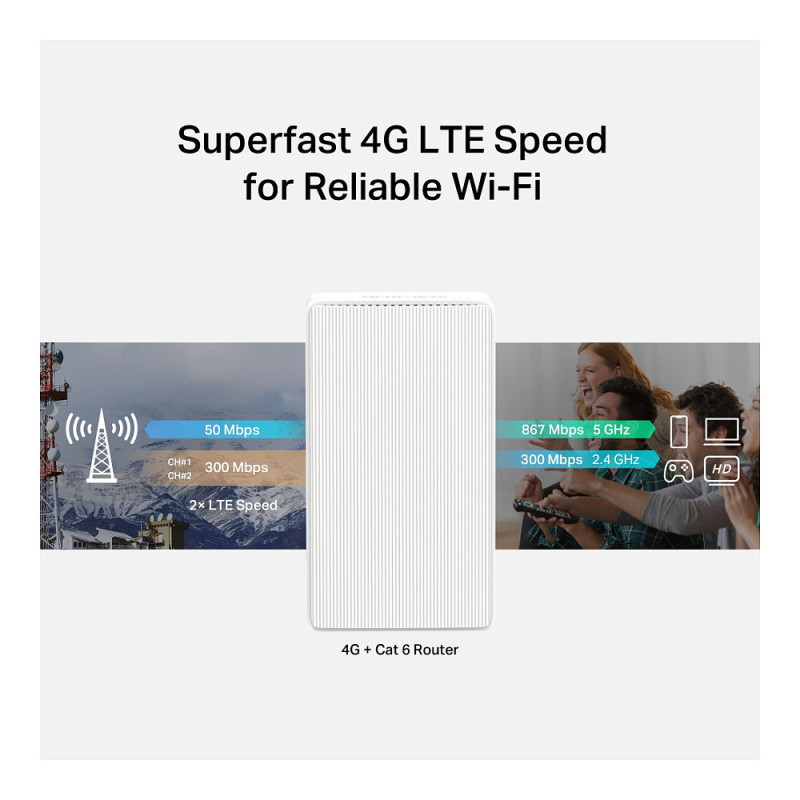

Extra Fast 4G+ Cat 6 Speed for Reliable Wi-Fi
MB230-4G supports the 4G+ Cat 6, which uses Carrier Aggregation technology, to achieve superfast LTE speeds up to 300 Mbps download and 50 Mbps upload. It can also share a dual band Wi-Fi network for gaming, streaming, and more.

Share the WiFi with Friends
An remarkable number of wireless gadgets are compatible with this 4G router without any issues. Up to 64 simultaneous connections for tablets, laptops, mobile phones, and other devices.

Full with Strong and Stable Signal
Internal high gain antennas strengthen the WiFi signal, extend the range of connection establishment, and boost the sensitivity of the router.

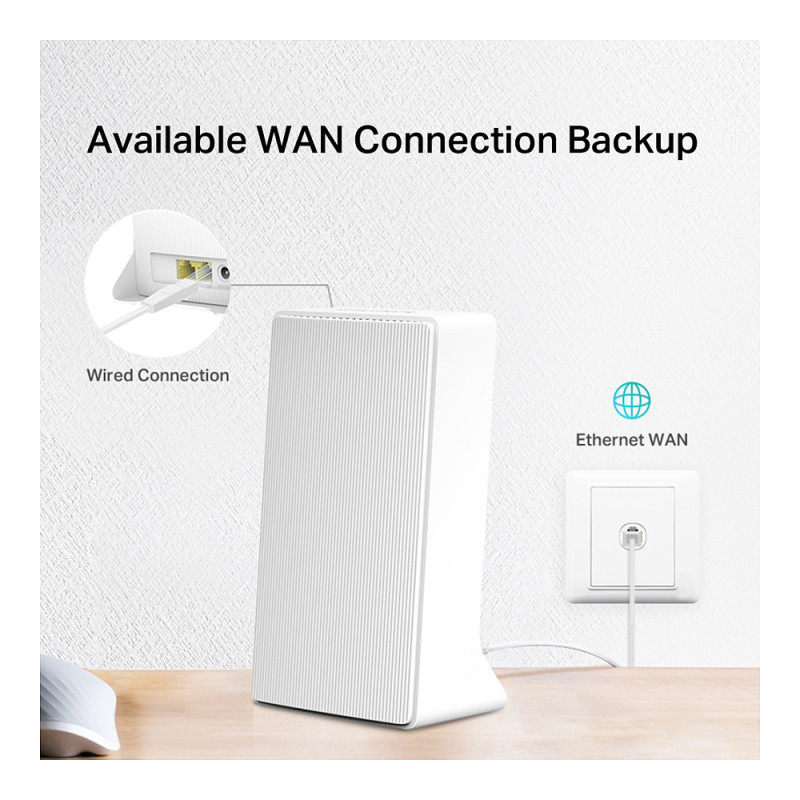

Available WAN Connection Backup
With a fully functional WAN/LAN port, MB230-4G can work as a router which is compatible with cable, fiber, and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.

Easy Setup and Management via MERCUSYS App
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).

WAN connection

Feature: Ethernet WAN
Feature: SIM card slot
Feature: 3G/4G USB modem compatibility
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 1200 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)

Mobile network

Mobile network generation: 4G
3G standards: HSPA, HSPA+, UMTS
4G standard: LTE-TDD & LTE-FDD
4G bands supported: 700,800,850,900,1800,2100,2300,2600 MHz
3G bands supported: 850,900,2100 MHz
SIM card type: NanoSIM

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack

Management features

Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Reset button
Feature: WPS push button

Security

Security algorithms: 64-bit WEP, WPA-PSK, WPA2-PSK, WPA3-SAE
Feature: Firewall
Feature: Port-based Network Access Control (PNAC)
Feature: System event log
Feature: DMZ support

Protocols

Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
VoIP protocols: IPv4, IPv6

Design

Product colour: White
Feature: Indication light
Product type: Desktop/pole router

Packaging content

Feature: AC adapter included
Feature: Quick installation guide

Antenna

Antenna design: Internal

Features

Feature: Firmware upgradeable

Power

Power source type: DC
Output voltage: 12 V
Output current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 95 mm
Depth: 61 mm
Height: 166 mm

Packaging data

Package type: Box
Number of products included: 1 pc(s)
