MERCUSYS BE9300 Tri-Band Wi-Fi 7 Router

Blazing-Fast 9214 Mbps Tri-Band Speeds:Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.†

Newest WiFi 7:Armed with the 320 MHz channels, 4K-QAM, MLO, the 6 GHz band, and other features that WiFi 7 offers, your network will arrive with a jaw-dropping performance.

Multi-Link Operation (MLO):Increases throughput, reduces latency, and improves reliability for emerging applications.

4× 2.5G Ports:1× 2.5 Gbps WAN port and 3× 2.5 Gbps LAN ports break through the 1G bottleneck, driving your devices to peak performance.

Maximized Coverage:6× Omni directional antennas, proprietary Wi-Fi optimization, and Beamforming technology deliver broader coverage, more capacity, stronger and more reliable connections, and less interference.

EasyMesh-Compatible:Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.

Easy Setup and Use:Network management has never been easier with the MERCUSYS app.

Wireless

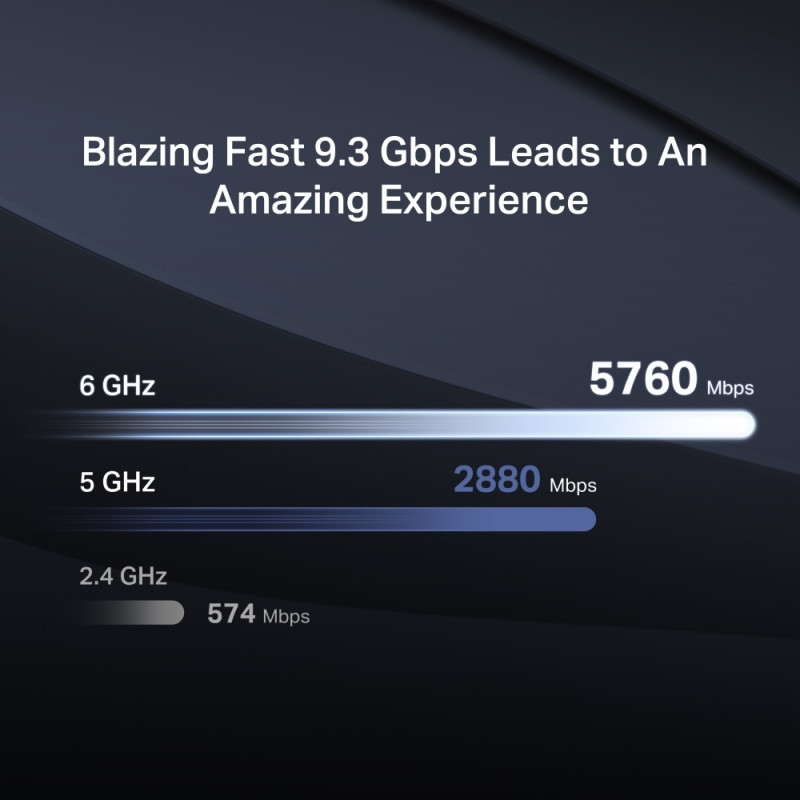

Wireless Standards: Compatible with 802.11be/ax/ac/a/b/g/n Wi-Fi standards WiFi Speeds: BE9300 • 6 GHz: 5760 Mbps (802.11be) • 5 GHz: 2880 Mbps (802.11be) • 2.4 GHz: 574 Mbps (802.11ax) Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE Wireless Functions: • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs

Hardware

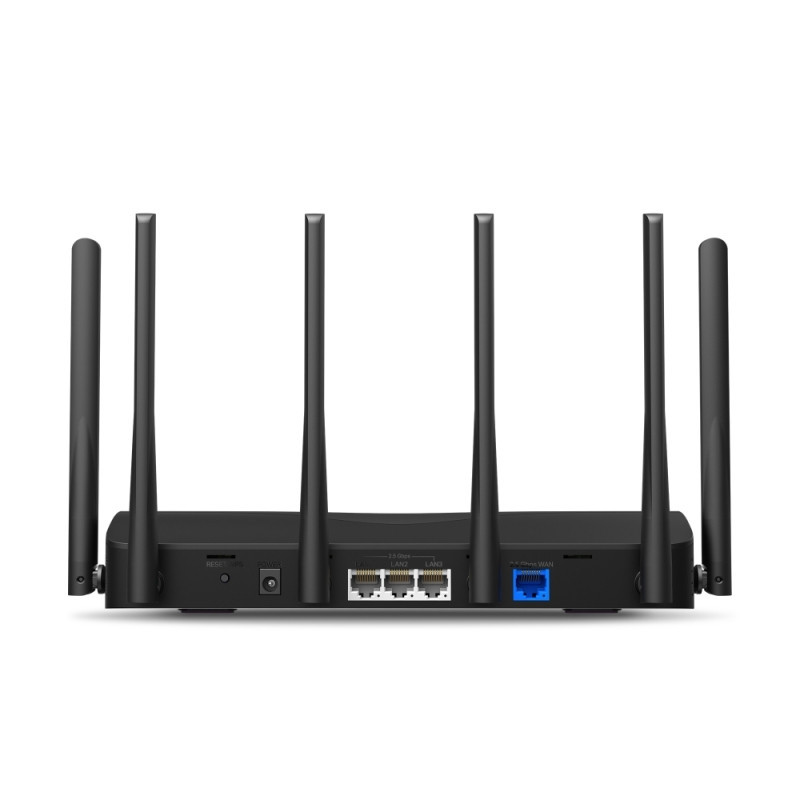

Dimensions: 10.1 × 4.7 × 1.7 in (258 × 119 × 43.3 mm) Interfaces: 1× 2.5 Gbps WAN Port + 3× 2.5 Gbps LAN Ports Button: Reset/WPS Button Antenna Type: 6× Fixed Omni-Directional Antennas

Software

WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP Management: Access Control Local Management Remote Management DHCP: Server, DHCP Client List NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ Firewall Security: SPI Firewall, IP and MAC Address Binding Guest Network: 2.4 GHz Guest Network 5 GHz Guest Network 6 GHz Guest Network VPN Server: OpenVPN/PPTP/L2TP/ WireGuard VPN Server and Clients

Others

Package Contents: • BE9300 Tri-Band Wi-Fi 7 Router MR47BE • Power Adapter • Quick Installation Guide • RJ45 Ethernet Cable Environment: • Operating Temperature: 0°C~40°C (32°F~104°F) • Operating Humidity: 10%~90% Non-Condensing • Storage Humidity: 5%~90% Non-Condensing
