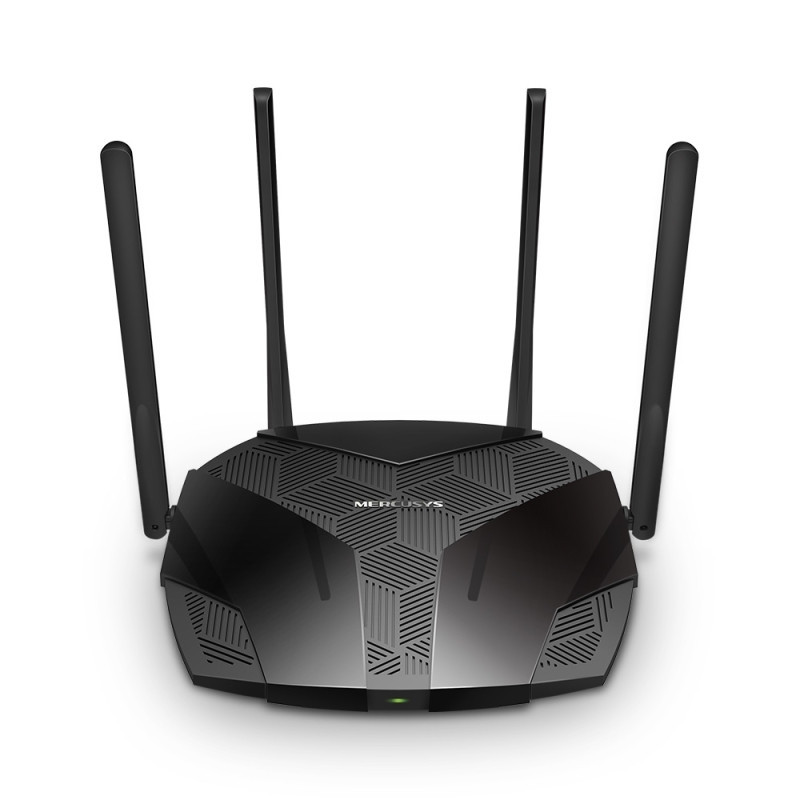

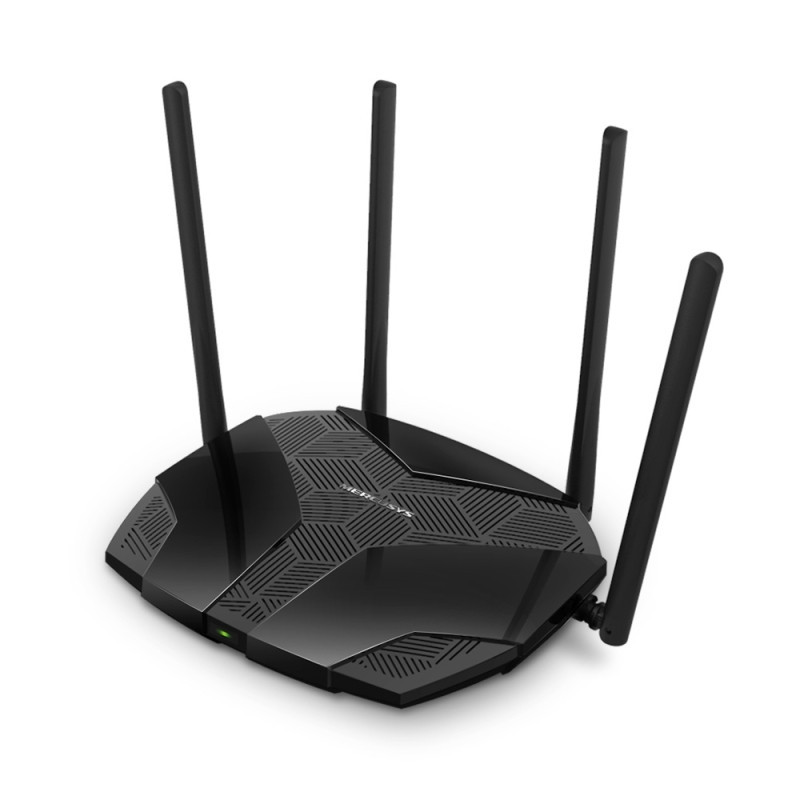

MERCUSYS AX3000 Dual-Band Wi-Fi 6 Router

• OPTIMAL WIFI 6 SPEEDS - Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.


• MORE DEVICES, MORE FUN - Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.


• WiFi THAT GOES FARTHER - 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner


• OVERALL SECURITY PROTECTION - The latest WPA3 provides improved WiFi security


• GIGABIT WIRED CONNECTIONS - Make full use of your internet access and transfer data at dizzying speeds for peak performance


• ECO-FRIENDLY POWER SAVING - Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions


• LESS WIFI INTERFERENCE - Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring


• SMART CONNECT - Intelligently chooses the best available band for each device

Wireless

Wireless Standards

Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

WiFi Speeds

2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Reception Sensitivity

11g 6Mbps: -97dBm

11g 54Mbps: -79dBm

11n HT40 MCS7:-74dBm

11n HT20 MCS7:-77dBm

11a 6Mbps: -97dBm

11a 54Mbps: -79dBm

11ac VHT20 MCS8:-75dBm

11ac VHT40 MCS9:-71dBm

11ac VHT80 MCS9:-67dBm

11ax VHT20 MCS11:-67dBm

11ax VHT40 MCS11:-64dBm

11ax VHT80 MCS11:-61dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (band1、 band2)

5 GHz < 30dBm (band3)

Wireless Security

WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal

Wireless Functions

Enable/Disable Wireless Radio, WMM

Software

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control

Local Management

Remote Management

DHCP

Server, DHCP Client List

NAT Forwarding

Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security

SPI Firewall, IP and MAC Address Binding

Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

VPN Sever

OpenVPN, PPTP supported

Hardware

Dimensions

8.2 × 6.8 × 1.6 in (208.8 × 171.6 × 41.7 mm)

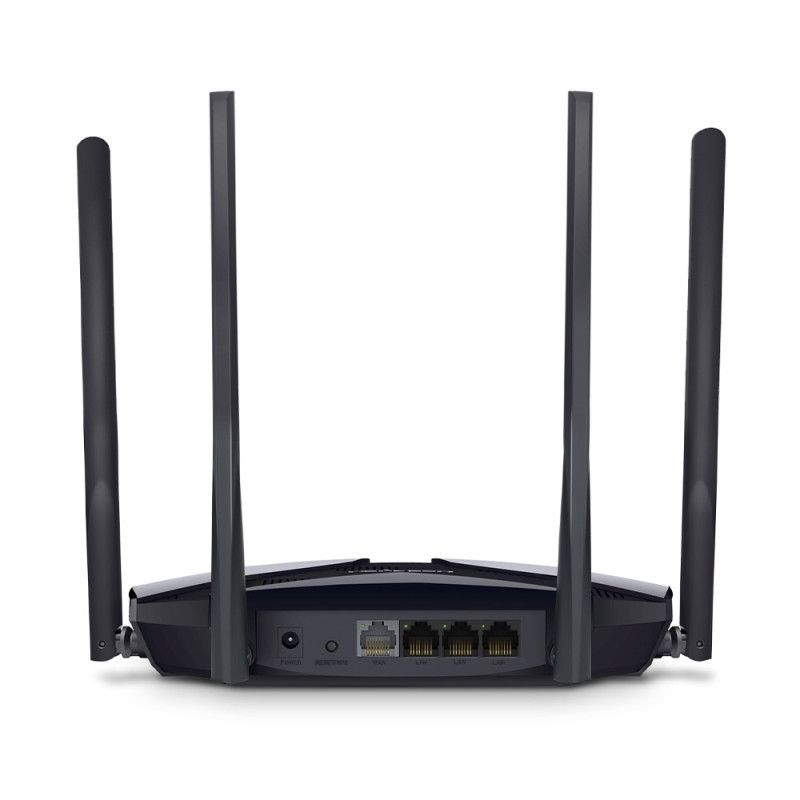

Interfaces

1× Gigabit WAN Port + 3× Gigabit LAN Ports

Button

Reset/WPS Button

Antenna Type

4× 5 dBi Fixed Omni-Directional Antennas

Others

Package Contents

• AX3000 Wi-Fi 6 Router MR80X

• Power Adapter

• Quick Installation Guide

• RJ45 Ethernet Cable

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Operating Humidity: 10%~90% Non-Condensing

• Storage Humidity: 5%~90% Non-Condensing
