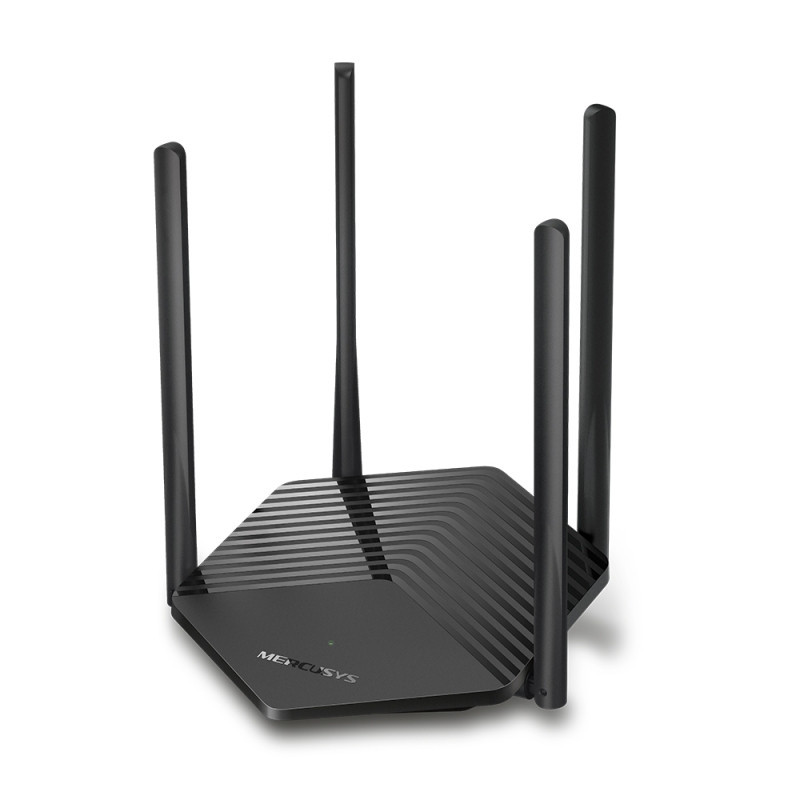

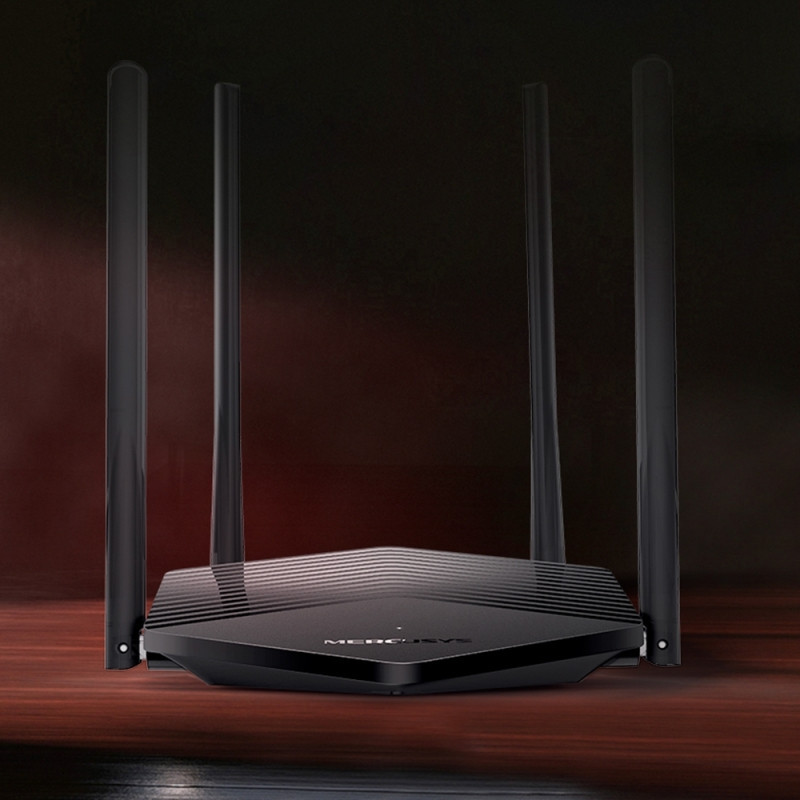

MERCUSYS AX1500 WiFi 6 Router

• Upgrade Your Network with Wi-Fi 6 -MR60X comes equipped with the latest Wi-Fi 6 standard, delivering more simultaneous connections, extending WiFi range, and maintaining reliably fast data transmissions.


• Faster 1.5 Gbps Speeds- Optimal WiFi 6 speeds reaching up to 1.5 Gbps (1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)


• Improved Network Capacity- OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency


• Broader, Stronger Coverage- 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner


• Gigabit Wired Connections- Make full use of your internet access and transfer data at dizzying speeds for peak performance


• Overall Security Protection- The latest WPA3 provides improved WiFi security


• Less WiFi Interference- Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color


• Smart Connect- Intelligently chooses the best available band for each device

Wireless

Wireless Standards Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards WiFi Speeds 1201 Mbps (5 GHz) + 300 Mbps (2.4 GHz) Reception Sensitivity 11g 6Mbps: -97dBm 11g 54Mbps: -79dBm 11n HT40 MCS7: -74dBm 11n HT20 MCS7: -78dBm 11a 6Mbps:-94dBm 11a 54Mbps:-78dBm 11ac VHT20 MCS8:-74dBm 11ac VHT40 MCS8:-70dBm 11ac VHT80 MCS8:-65dBm Wireless Security WPA / WPA2-Personal WPA2 / WPA3-Personal Wireless Functions Enable/Disable Wireless Radio, WMM

Software

WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP Management Access Control Local Management Remote Management DHCP Server, DHCP Client List NAT Forwarding Port Forwarding, Port Triggering, UPnP, DMZ Firewall Security SPI Firewall, IP and MAC Address Binding Guest Network 2.4 GHz Guest Network, 5 GHz Guest Network

Hardware

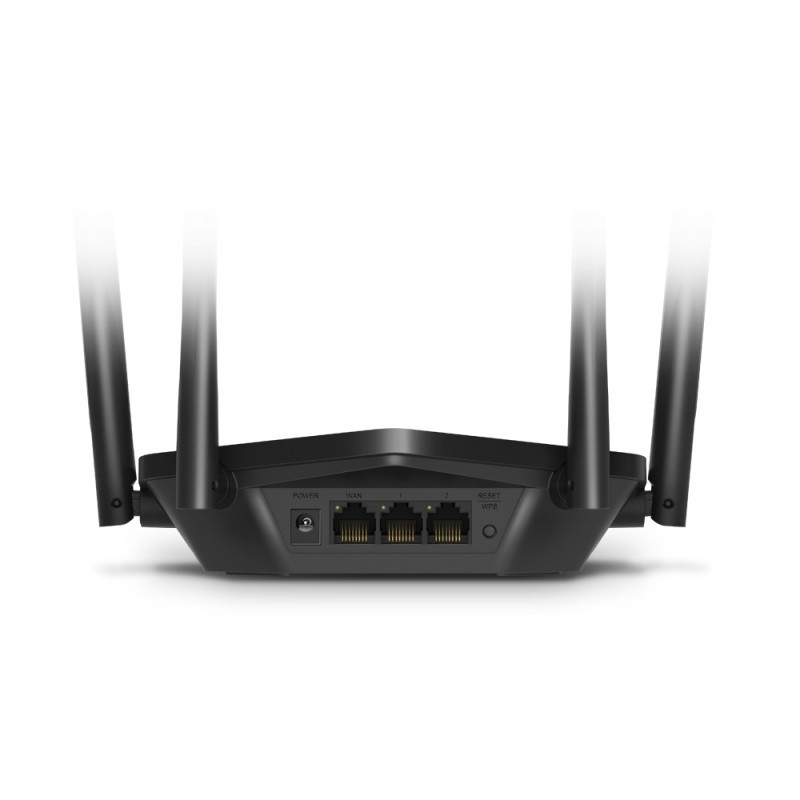

Dimensions 6.9 × 6.2 × 1.8 in (175.6 × 157.2 × 45 mm) Interfaces 1× Gigabit WAN Port + 2× Gigabit LAN Ports Button Reset/WPS Button Antenna Type 4× 5 dBi Fixed Omni-Directional Antennas

Others

Package Contents • AX1500 Wi-Fi 6 Router MR60X • Power Adapter • Quick Installation Guide • RJ45 Ethernet Cable Environment • Operating Temperature: 0°C~40°C (32°F~104°F) • Operating Humidity: 10%~90% Non-Condensing • Storage Humidity: 5%~90% Non-Condensing
