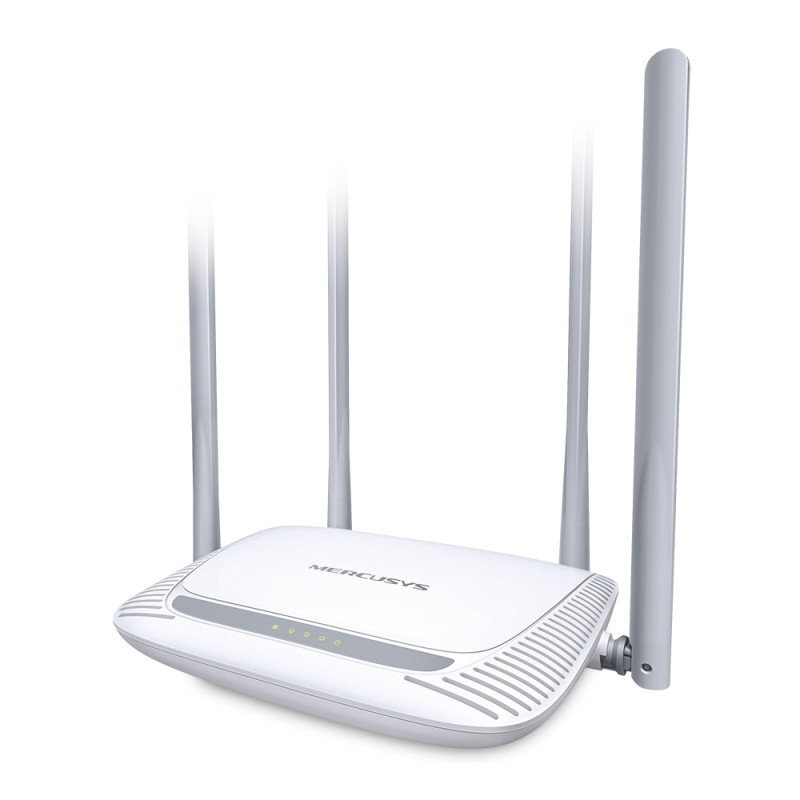

MERCUSYS 300Mbps Enhanced Wireless N Router

• Great Coverage - four 5dBi antennas provide wide wireless coverage


• Enhanced Signal - high gain antennas dramatically increase wireless signal strength, size and stability


• 300Mbps Wireless Speed ​​- ideal for HD streaming, online gaming, and large file downloads


• Easy Installation - intuitive webpage guides you through the setup process in minutes

Wireless

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 2.4 - 2.5GHz WiFi Speeds 11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) Reception Sensitivity 270M: -70dBm@10% PER 130M: -72dBm@10% PER 54M: -74dBm@10% PER 11M: -87dBm@10% PER 6M: -92dBm@10% PER 1M: -94dBm@10% PER Transmission Power <20dBm Wireless Security WPA-PSK / WPA2-PSK Wireless Functions Enable/Disable Wireless Radio, WDS Bridge

Software

WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP Management Access control Local management Remote management DHCP Server, DHCP Client List Port Forwarding Virtual server, UPnP, DMZ Dynamic DNS Oray Firewall Security IP and MAC address binding Protocols IPv4 Guest Network 2.4GHz guest network

Hardware

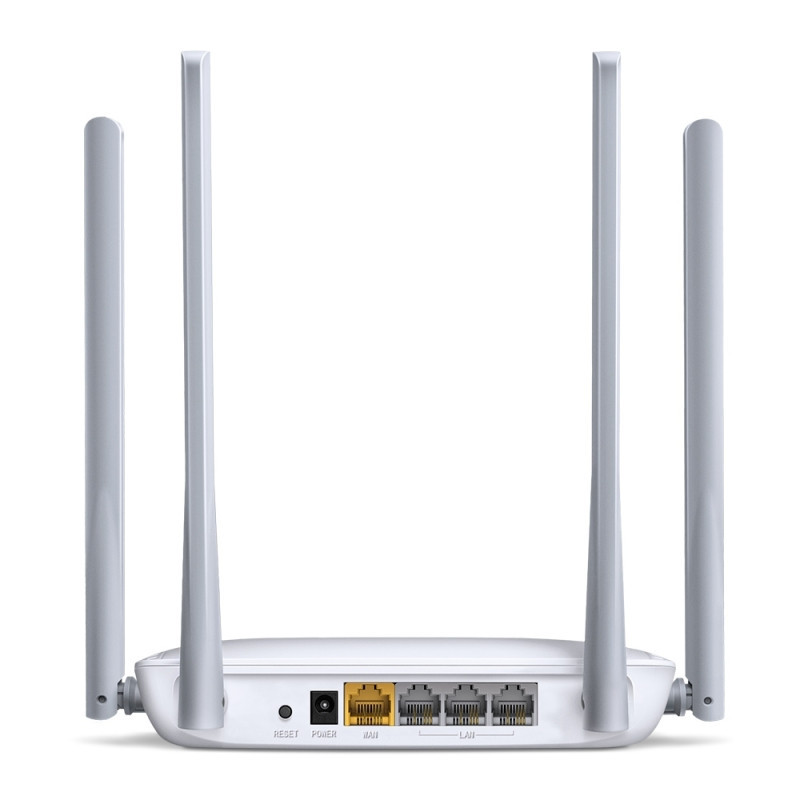

Dimensions 167 x 118 x 33 mm Interfaces 3 10/100Mbps LAN ports 1 10/100Mbps WAN port Button Reset button External Power Supply 5VDC/0.6A Antenna Type 4 x 5dBi fixed omni directional antennas

Others

Certifications CE, ROHS Package Contents 300Mbps Enhanced Wireless N Router MW325R Power adapter Quick installation guide RJ45 Ethernet cable Environment Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F) Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F) Operating humidity: 10% ~ 90%, non-condensing Storage humidity: 5% ~ 90%, non-condensing
