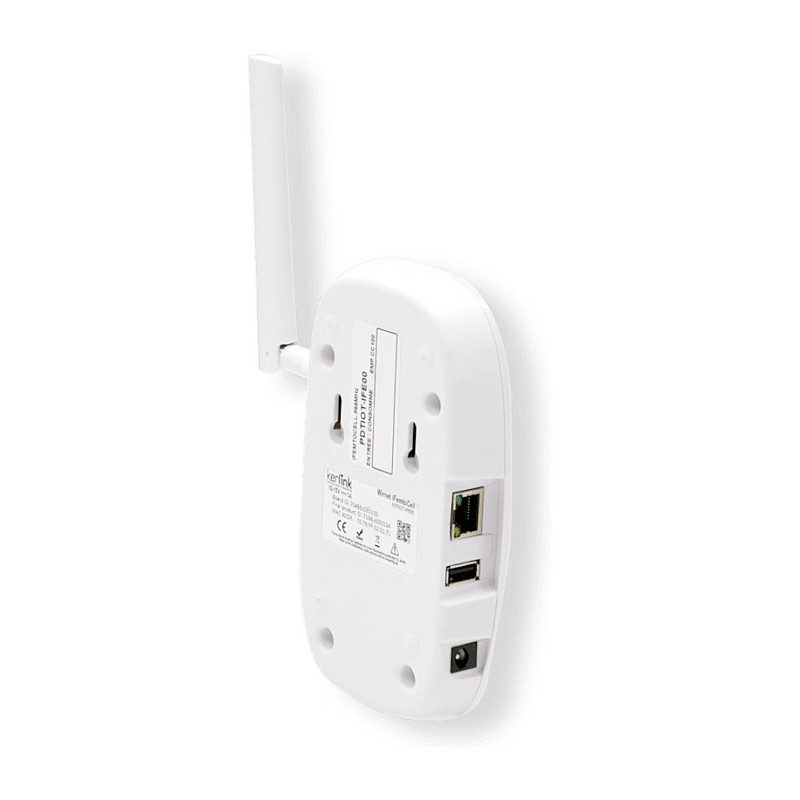

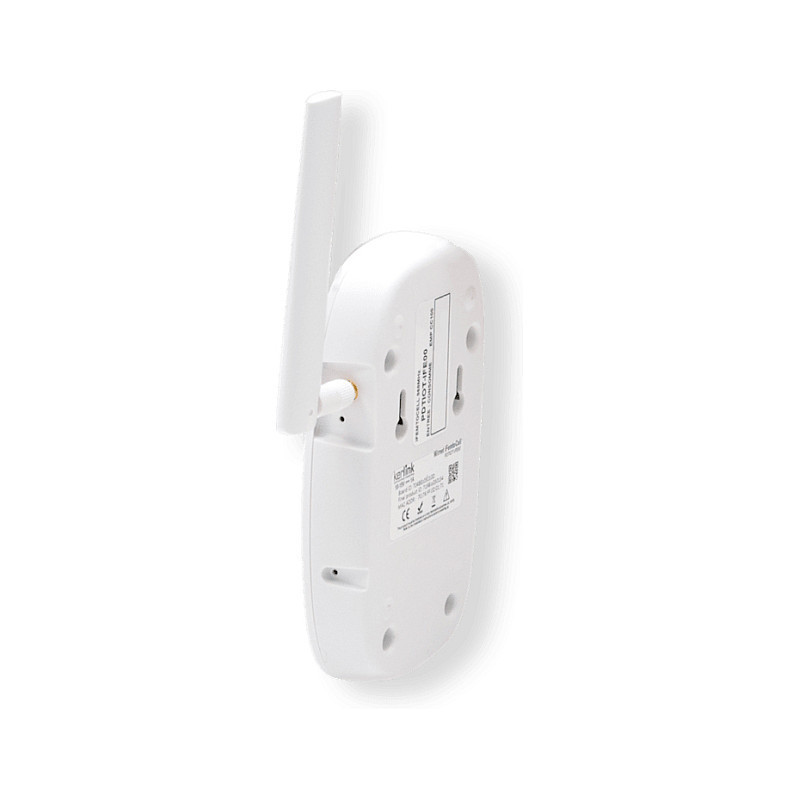

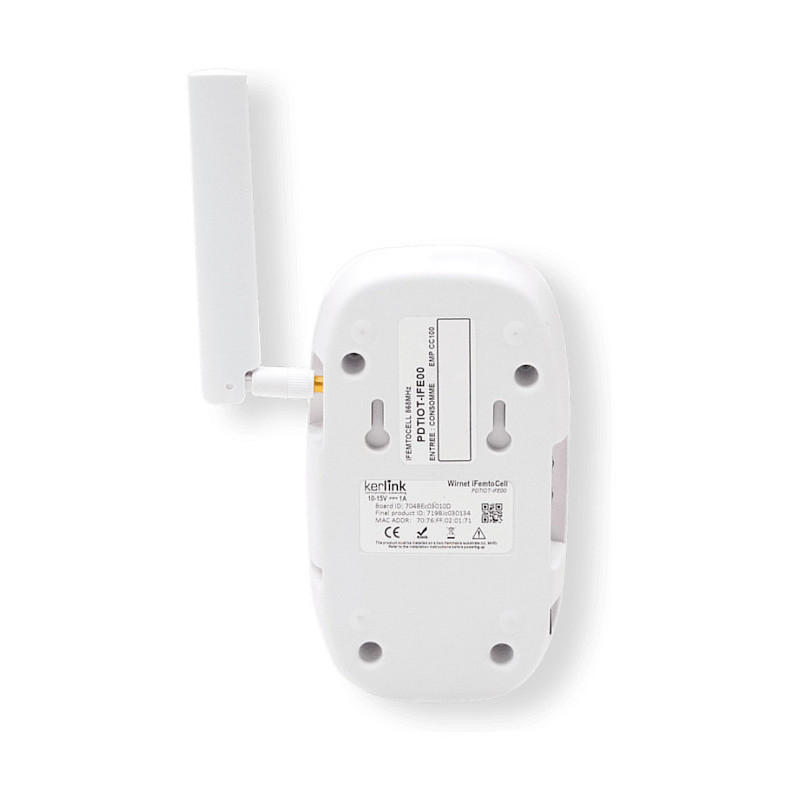

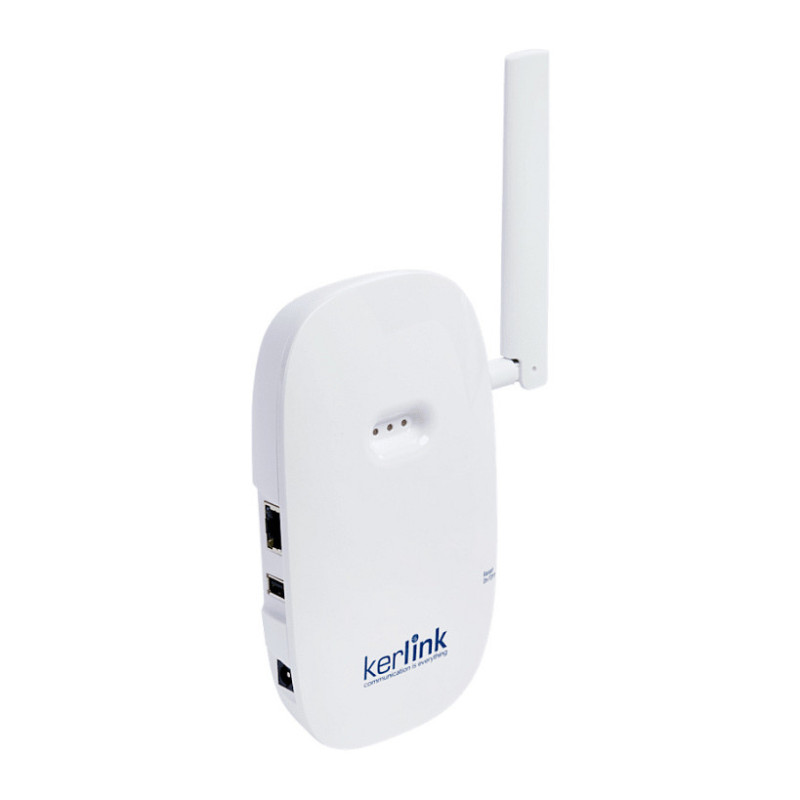

Logitech LoRaWAN Gateway for Spot gateway / controller

Logitech LoRaWAN Gateway for Spot. Product colour: White, Mounting type: Desktop/Wall mounting, International Protection (IP) code: IP30. Antenna type: External, Antenna gain level (max): 3 dBi. Processor manufacturer: ARM, Processor family: ARM Cortex, Internal memory: 256 MB. Ethernet LAN data rates: 10,100 Mbit/s, Frequency band: 2.4 GHz. Input voltage: 230 V, Output voltage: 12 V
Connect hundreds of Logitech Spot sensors throughout an office, especially in areas without a Logitech CollabOS device like Tap Scheduler or Rally Bar.
ONE GATEWAY, EXTENDED COVERAGE
The Kerlink gateway is able to connect hundreds of sensors using a long-range, wide area network (LoRaWAN). No WiFi, no cabling needed between connections.
SIMPLE TO INSTALL
FIND THE BEST AREA
To maximize coverage, find a central place on the floor or building where the gateway would have the best, unblocked reception.
PROVISION VIA SYNC PORTAL
Remotely provision and configure your gateway via Sync Portal.
CONNECT SENSORS
Activate Spot sensors to ensure complete LoRaWAN connectivity.
POWERED BY LORAWAN
The Kerlink gateway connects to Spot sensors via the secure LoRaWAN protocol, ensuring end-to-end encryption, and is separate from your WiFi network. This enables it to be placed outside your corporate network and securely transmit all sensor data to the Sync platform for monitoring and management.
SIMPLE TO MANAGE
Monitor and manage the gateway and Spot sensors via Sync, the Logitech platform for managing all your collaboration devices and spaces.

Design

Product colour: White
Mounting type: Desktop/Wall mounting
International Protection (IP) code: IP30

Features

Antenna type: External
Antenna gain level (max): 3 dBi

Performance

Built-in processor: Yes
Processor manufacturer: ARM
Processor family: ARM Cortex
Internal memory: 256 MB
Flash memory: 8000 MB

Network

Ethernet LAN data rates: 10,100 Mbit/s
Wi-Fi: Yes
Frequency band: 2.4 GHz

Ports interfaces

USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Management features

Reset button: Yes

Power

Input voltage: 230 V
Output voltage: 12 V

Weight dimensions

Width: 90 mm
Depth: 35 mm
Height: 160 mm
Weight: 162 g

Packaging content

AC adapter included: Yes
Manual: Yes

Operational conditions

Operating temperature (T-T): -20 - 55 °C
Operating relative humidity (H-H): 5 - 95%
