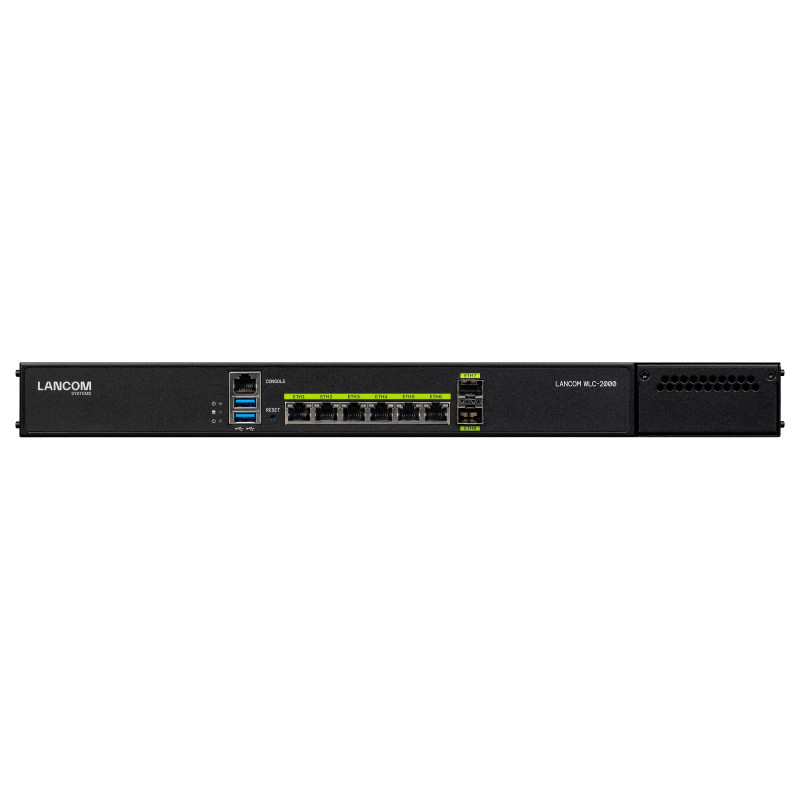

LANCOM WLC-2000 gateway / controller

LANCOM WLC-2000. Product colour: Black, Rack capacity: 19U, Enclosure material: Metal. Antenna type: Internal. Supported protocols: DNS, HTTP, HTTPS, ICMP, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RADSEC (secure RADIUS), RTP,.... Ethernet LAN data rates: 10,100,1000 Mbit/s, Frequency band: 2.4 - 5 GHz. Security algorithms: WEP, WPA, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Centralized Wi-Fi management of large wireless networks
Do you want full control with a low workload? As a central Wi-Fi controller, the WLC-2000 gives you exactly that. Networks of 25 to 2,000 access points are easily managed and controlled centrally. New access points are automatically put into operation in the network via zero-touch deployment and supplied with suitable configurations. In operation intelligent features such as roaming optimization and the selection of the best frequency band and Wi-Fi channel ensure optimum utilization even in complex wireless networks. The LANCOM WLC-2000 thus saves the administrator time and provides the user the best Wi-Fi experience.
Central firmware rollout, monitoring management
The LANCOM WLC-2000 centrally cinfugures and manages up to 2,000 access points, so relieving the workload on network administrators and bringing massive time savings. WLAN controllers ensure uniform network control, security, and reliability.
Zero-touch deployment
Quick and easy network integration of new access points as well as automatic configuration rollout - without the need of manual configuration. After network authentication, the LANCOM WLC-2000 immediately sends an appropriate configuration to the access point.
Integrated Public Spot XL Option
Thanks to the integrated hotspot functionality, the LANCOM WLC-2000 is ideal for providing public Internet access for visitors, customers or other short-term network users. The user benefits from a secure and convenient hotspot and the hotspot provider can be sure that his own network remains securely separated.
Advantages
Optimized roaming behavior of Wi-Fi clients
This means that clients are efficiently handed over from one access point to the other when switching between two radio fields - without any connection losses.
VLAN-, RADIUS-, and IEEE 802.1X/EAP features
Thanks to extensive virtualization and security features, wireless networks can be set up efficiently and compliant to the proprietary security policies. The integrated VLAN functionality enables the separation of several wireless networks in only one infrastructure. Furthermore, there are professional security functions which allow the administrator to grant network access only to authorized clients.
Maximum future viability
LANCOM products are designed for a service life of several years and are equipped with hardware dimensioned for the future. Even reaching back to older product generations, updates to the LANCOM Operating System family are available several times a year, free of charge and offering major features.
Highest operational reliability
The LANCOM Smart Controller principle ensures the highest operational reliability: While the administrative data is routed through the controller, client payload data is sent directly from the access point to the router. If a controller fails, the access point switches to "stand-alone mode" and the communication between the client and access point remains intact. This avoids downtimes during everyday business due to employees losing access to the network or the failure of WLAN-controlled production facilities.
High availability
Combined with the LANCOM High Availability Clustering Option, multiple WLAN controllers are grouped into one highly available device group. In this way, configuration changes, features and enhancements made on one WLC are automatically exchanged between the other WLCs in the cluster: Not having to make manual changes on each individual device means massive time savings for administrators.

Design

Product colour: Black
Rack capacity: 19U
Enclosure material: Metal
Mounting type: Rack mounting
LED indicators: Yes
Number of fans: 2 fan(s)

Features

Antenna type: Internal

Protocols

DHCP server: Yes
DHCP client: Yes
DMZ support: Yes
Supported protocols: DNS, HTTP, HTTPS, ICMP, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RADSEC (secure RADIUS), RTP, SNMPv1,v2c,v3, TFTP, TACACS+, IGMPv3, NDP, stateless address autoconfiguration (SLAAC), stateful address autoconfiguration (DHCPv6), router advertisements, ICMPv6, DHCPv6, DNS, HTTP, HTTPS, PPPoE, RADIUS, SMTP, NTP, BGP, LISP, Syslog, SNMPv1,v2c,v3, MLDv2, PIM, NPTv6 (NAT66)

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 - 5 GHz

Security

MAC address filtering: Yes
Security algorithms: WEP, WPA, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
VLAN support: Yes
Network address translation (NAT): Yes
Number of VLANs: 4096

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Console port: RJ-45
Number of console ports: 1
Ethernet LAN (RJ-45) ports: 6
SFP+ ports quantity: 2

Management features

Web-based management: Yes
Reset button: Yes
Syslog: Yes
Traffic statistics: Yes
Multicast support: Yes

Power

Power consumption (max): 60 W
Input voltage: 110 - 230 V
Input frequency: 50 - 60 Hz

Weight dimensions

Size (imperial): 48.3 cm (19")
Width: 440 mm
Depth: 269.2 mm
Height: 44 mm
Weight: 3.5 kg

Packaging data

Package width: 426 mm
Package depth: 586 mm
Package height: 145 mm
Package weight: 5.34 kg

Packaging content

Manual: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 85%

Logistics data

Country of origin: Taiwan
Customs product code (TARIC): 85176200
