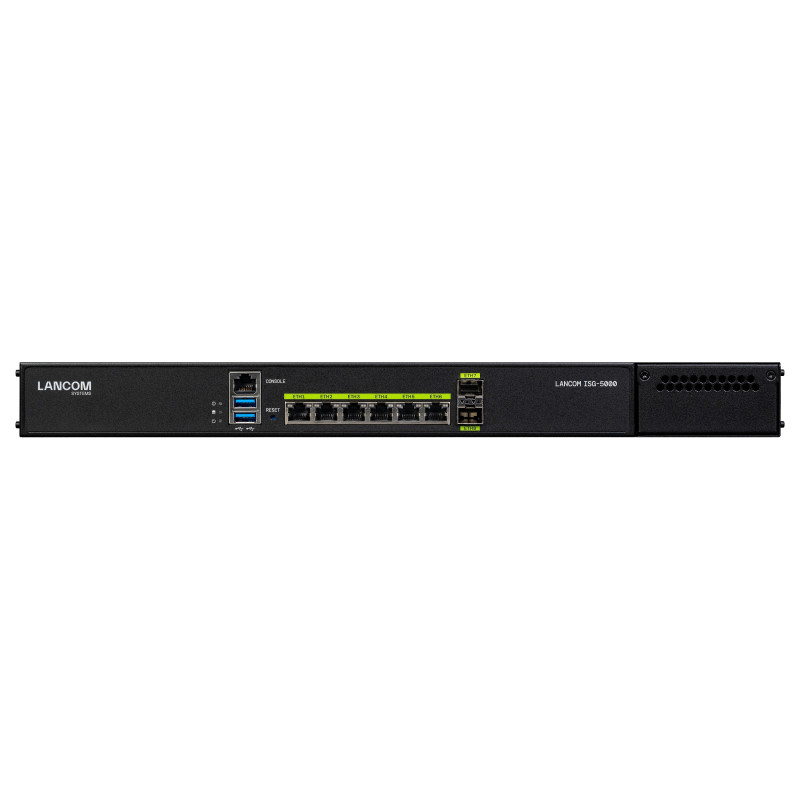

LANCOM ISG-5000 (EU) gateway / controller

LANCOM ISG-5000 (EU). Product colour: Black, Rack capacity: 19U, Enclosure material: Metal. VoIP protocols: RTP, SIPS, SRTP, Supported protocols: DNS, HTTP, HTTPS, ICMP, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RADSEC (secure RADIUS), RTP,.... Ethernet LAN data rates: 10,100,1000 Mbit/s. Console port: RJ-45. Power consumption (max): 60 W, Input voltage: 100 - 240 V, Input frequency: 50/60 Hz
Centralized performance for medium-sized SD-WAN scenarios
Large-scale multi-service IP networks have to offer the ultimate in performance and reliability at the central site. The LANCOM ISG-5000 is the secure and future-proof heart of your VPN networking strategy, thanks to its powerful platform with state-of-the-art encryption technologies, high scalability VPN, and redundancy features. Use SD-WAN to effortlessly connect your sites, branches, and remote workers. You can also upgrade this integrated services gateway with additional features such as a hotspot, clustering, or up to 1,000 VPN channels.
Secure site connectivity for medium-sized SD-WAN enterprise scenarios
The LANCOM ISG-5000 is the central instance for your high-performance SD-WAN in large enterprise infrastructures. 100 integrated VPN channels based on state-of-the-art encryption technologies and demand-oriented ports (6x Gigabit Ethernet, 2x SFP+, 2x USB, RJ45 config port) deliver the best possible conditions for networking mobile employees, protecting internal company data, and taking high-performance IPSec connectivity to sensitive network segments or branches. The LANCOM VPN option upgrades the gateway to support up to 1,000 VPN channels. This ensures that your network is perfectly scalable and can grow on demand—without needing additional hardware.
Powerful SD-WAN greatly simplifies the management of enterprise structures
In combination with the LANCOM Management Cloud, the LANCOM ISG-5000 provides the ideal basis for establishing a high-performance SD-WAN. For instance, it enables the highly automated configuration of a wide area network and an automatic rollout of device configurations to your individual locations. You benefit from highest levels of scalability, save on personnel costs, and keep track of the status of your network 24/7 - ideal for mid-sized enterprise scenarios with multiple locations.
Next-generation SD-WAN: High Scalability VPN (HSVPN)
The LANCOM ISG-5000 supports High Scalability VPN (HSVPN). The ongoing rise of digitalization, greater diversity of applications, and higher data volumes demand powerful, state-of-the-art networks. High Scalability VPN significantly improves the extensibility and efficiency of your architecture. Where previously each individual application required a separate VPN tunnel, HSVPN bundles any number of networks into a single VPN tunnel and transports them collectively to the remote site—with each network remaining secure and strictly separated from the others. The advantage for your business: Considerably fewer VPN tunnels are required, and recovery times are much faster in a failover event.
Further advantages
Maximum port flexibility
From fiber-optic to Ethernet and USB ports: As the core of the network, this integrated services gateway offers 6 Gigabit Ethernet ports as well as 2x USB. In addition, thanks to 2 SFP+ ports with 10 Gigabit, you can increase the capacity of your data transfers to servers, network storage or switches.
Systematic networking solutions
LANCOM integrated service gateways are the basis for secure encrypted site connectivity and high-speed Internet access. As professional system components, they are fully compatible to all LANCOM network devices and they facilitate flexible scaling and expansion when combined with further LANCOM components. The result is a secure and flexible all-round solution that you can rely on. The overall network, right down to each individual device, can be managed and monitored from one central instance—for a solution that is systematic. You can also upgrade this integrated services gateway with additional features such as a hotspot, clustering, or additional VPN channels.
Maximum future-proofing and digital sovereignty
As an established German manufacturer of IT network solutions, LANCOM stands for reliability and know-how. Software and hardware development as well as production take place primarily in Germany, as does the hosting of the network management. Special attention is given to providing trusted solutions with outstanding security features. Another important security characteristic of the products is that they are free from backdoors, as awarded by the German Federal Ministry of Economy with the quality seal "IT Security made in Germany". All devices are always equipped with with hardware that is dimensioned for the future. Even across product generations, updates to the LANCOM operating system family are available several times a year, free of charge. his guarantees a long service life while staying technically up to date, which represents a true protection of your investment. In addition, LANCOM infrastructures are easily scalable thanks to maximum compatibility.

Design

Product colour: Black
Rack capacity: 19U
Enclosure material: Metal
Mounting type: Rack mounting
LED indicators: Yes
Number of fans: 2 fan(s)

Protocols

DHCP server: Yes
DHCP client: Yes
VoIP protocols: RTP, SIPS, SRTP
DMZ support: Yes
Supported protocols: DNS, HTTP, HTTPS, ICMP, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RADSEC (secure RADIUS), RTP, SNMPv1,v2c,v3, TFTP, TACACS+, IGMPv3, NDP, stateless address autoconfiguration (SLAAC), stateful address autoconfiguration (DHCPv6), router advertisements, ICMPv6, DHCPv6, DNS, HTTP, HTTPS, PPPoE, RADIUS, SMTP, NTP, BGP, LISP, Syslog, SNMPv1,v2c,v3, MLDv2, PIM, NPTv6 (NAT66)

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s

Security

MAC address filtering: Yes
VLAN support: Yes
Network address translation (NAT): Yes
Number of VLANs: 4096

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Console port: RJ-45
Number of console ports: 1
Ethernet LAN (RJ-45) ports: 6
SFP+ ports quantity: 2

Management features

Web-based management: Yes
Reset button: Yes
Multicast support: Yes

Power

Power consumption (max): 60 W
Input voltage: 100 - 240 V
Input frequency: 50/60 Hz
Heat dissipation: 204 BTU/h

Weight dimensions

Size (imperial): 48.3 cm (19")
Width: 440 mm
Depth: 269.2 mm
Height: 44 mm
Weight: 3.5 kg

Packaging data

Package width: 426 mm
Package depth: 586 mm
Package height: 145 mm
Package weight: 5.34 kg

Packaging content

Manual: Yes
Cables included: LAN (RJ-45)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 85%

Logistics data

Country of origin: Taiwan
Customs product code (TARIC): 85176200
