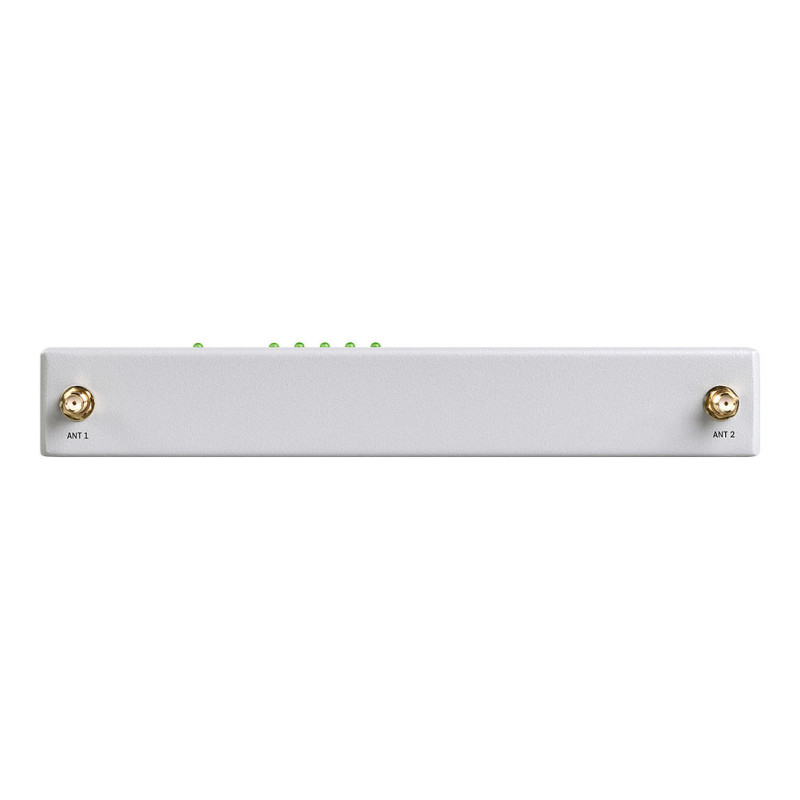

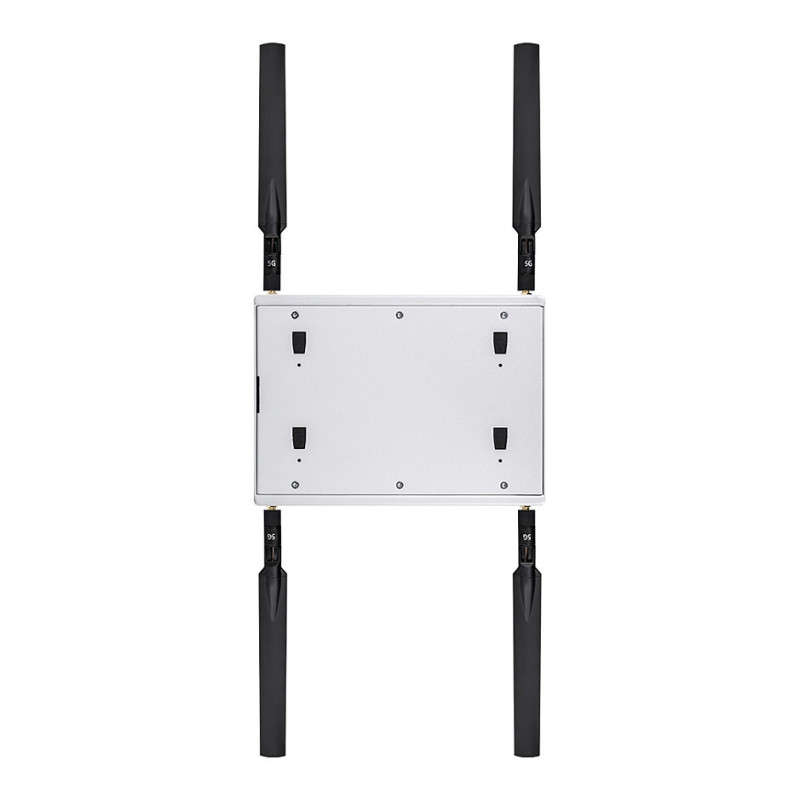

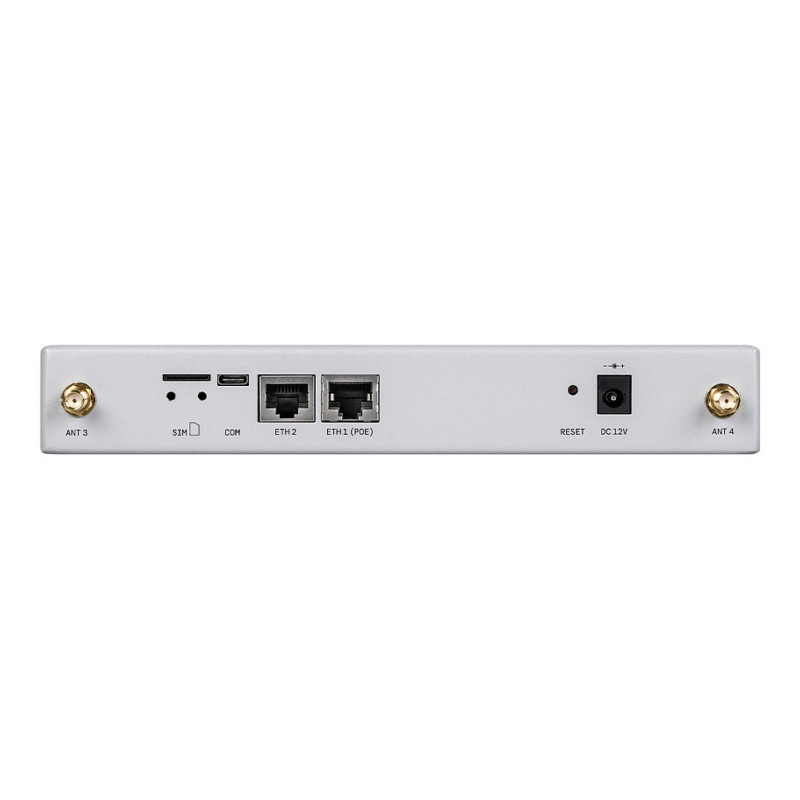

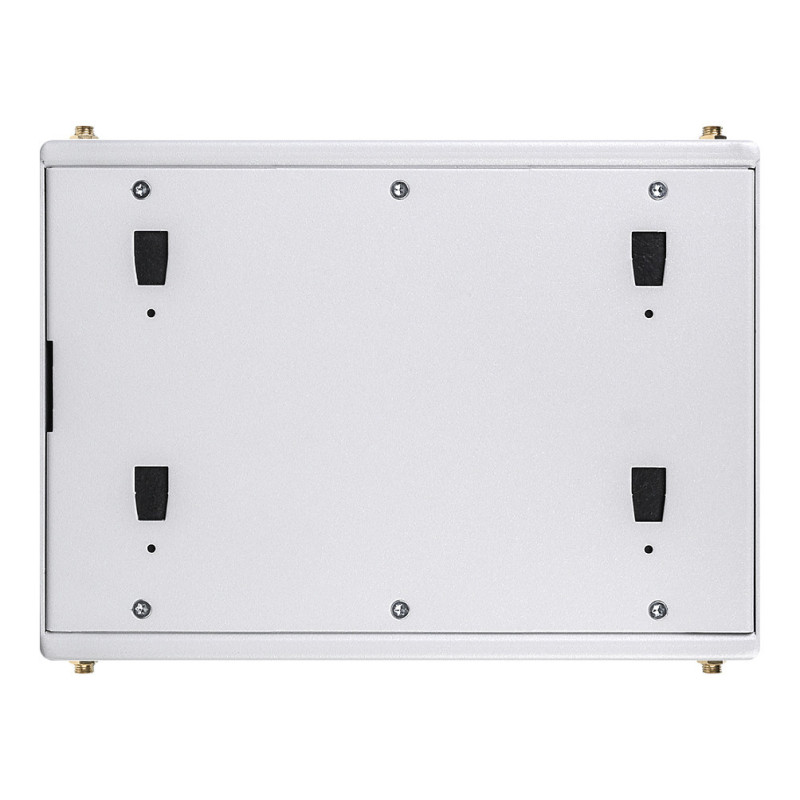

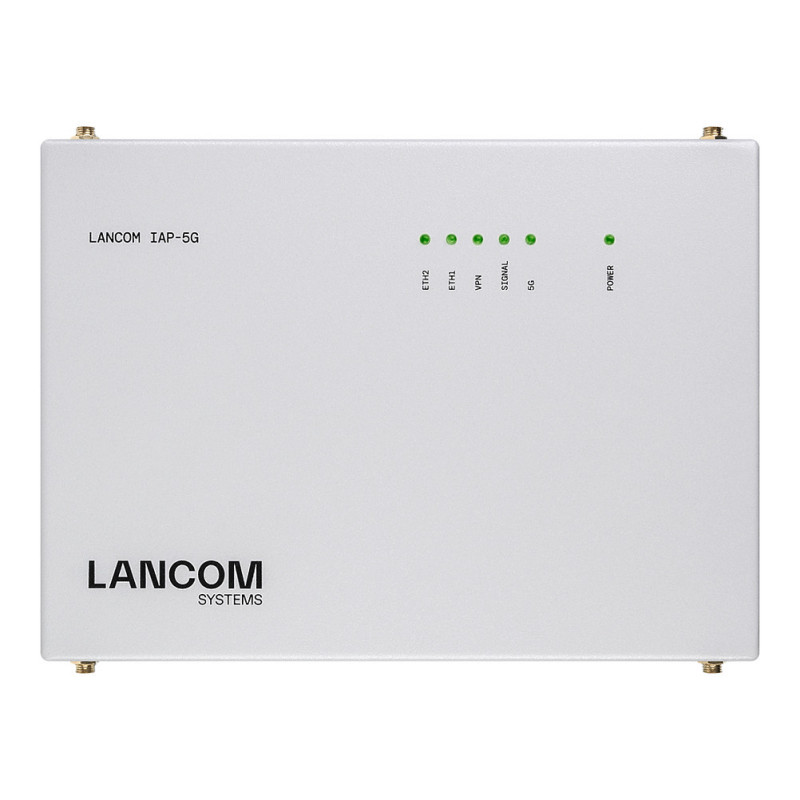

LANCOM IAP-5G (EU) gateway / controller

LANCOM IAP-5G (EU). Product colour: White, Enclosure material: Metal, International Protection (IP) code: IP50. Antenna type: External, Antenna gain level (max): 2 dBi. Supported network protocols: DNS, HTTP, HTTPS, ICMP, NTP/SNTP, NetBIOS, PPPoE (Server), RADIUS, RADSEC (Secure RADIUS), RTP,..., Routing protocols: BGP4, LISP, OSPFv2, RIP-2, VoIP protocols: SIP ALG. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.1Q, IEEE 802.3at, Mobile network generation: 5G. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2
Industrial SD-WAN gateway with 5G for harsh environments
This industrial SD-WAN gateway is the ideal solution for reliable and high-performance 5G Internet in tough environments such as in warehousing and logistics, or for covered outdoor areas without a wired Internet connection. The extremely robust housing is highly dustproof and is suitable for temperatures from -20 to 50°C. With integrated IPSec VPN functionality and an integrated 5G modem, this device provides professional site connectivity via cellular networking and fast data transfer—ideal for connecting automated systems, machines, and surveillance equipment.
Fully future-proof with 5G
With the IAP-5G, either as a mobile primary access or in active/active mode with other access types, you benefit from all the advantages of 5G technology. Low latency and high-performance use of real-time applications such as telephony, video chat, video streaming in 4K or 8K or augmented reality, even with a high user density, are possible.
Robust all-metal housing
The durable metal housing allows this cellular router to guarantee excellent Internet connections even in tough and dusty environments. It protects the LANCOM IAP-5G from external influences and is ideal for use in warehouses or indoor event venues. Thanks to an extended temperature range from -20°C to +50°C, the device provides reliable wireless connections under the most demanding conditions.
LANCOM SD-WAN - Next-level networking
With LANCOM SD-WAN you can manage and monitor your entire corporate network centrally, cost-effectively, quickly, and stress-free! In combination with the LANCOM Management Cloud, the SD-WAN gateway gives you all the options for an automated setup of secure VPN connections (Auto-VPN) between sites, including network virtualization. Highlight features such as High Scalability VPN (HSVPN) and Advanced Mesh VPN offer you a significant plus in scalability and efficiency for a large number of branches and applications. Furthermore, if multiple WAN connections are defined, they are automatically operated in active/active mode (load balancing), thereby increasing the available total bandwidth. With Dynamic Path Selection and Dynamic Traffic Steering, applications are also dynamically routed via the best connection at any given time.
Secure communication via VPN
With virtual private networks (VPN), you use the public medium of the Internet as a communication path and secure the connection in such a way that the communication still remains completely inaccessible to external parties. This SD-WAN gateway offers you five integrated IPSec VPN channels for secure encryption, so that the protection of internal company data is always guaranteed when connecting mobile employees, home offices, or branch offices. With the LANCOM VPN Option, you can also upgrade the device to up to 25 VPN channels, so that the infrastructure can easily grow with your needs without additional hardware.
Stateful Inspection Firewall
Equipped with a stateful inspection firewall, the LANCOM IAP-5G protects the whole network. With features such as intrusion prevention and Denial-of-Service protection, this device provides optimal protection and secures all of the data on the network.
Advanced Routing Forwarding
The LANCOM IAP-5G provides up to 16 securely isolated and separately routed IP contexts. This is an elegant way of routing all IP applications via a central router and securely separating the various communication channels.
Maximum future-proofing and digital sovereignty
As an established German manufacturer of IT network solutions, LANCOM stands for reliability and know-how. Software and hardware development as well as production take place primarily in Germany, as does the hosting of the network management. Special attention is given to providing trusted solutions with outstanding security features. Another important security characteristic of the products is that they are free from backdoors, as awarded by the German Federal Ministry of Economy with the quality seal "IT Security made in Germany". All devices are always equipped with with hardware that is dimensioned for the future. Even across product generations, updates to the LANCOM operating system family are available several times a year, free of charge. his guarantees a long service life while staying technically up to date, which represents a true protection of your investment. In addition, LANCOM infrastructures are easily scalable thanks to maximum compatibility.

Design

Product colour: White
Enclosure material: Metal
LED indicators: Yes
International Protection (IP) code: IP50

Features

Antenna type: External
Antenna gain level (max): 2 dBi
Antennas quantity: 4

Performance

Control display unit: No

Protocols

Supported network protocols: DNS, HTTP, HTTPS, ICMP, NTP/SNTP, NetBIOS, PPPoE (Server), RADIUS, RADSEC (Secure RADIUS), RTP, SNMPv1,v2c,v3, TFTP, TACACS+, IGMPv3
Routing protocols: BGP4, LISP, OSPFv2, RIP-2
DHCP client: Yes
VoIP protocols: SIP ALG

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3at
Mobile network generation: 5G
Cabling technology: 10/100/1000Base-T(X)

Security

Access Control List (ACL): Yes
MAC address filtering: Yes
Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3
Firewall security: Yes
Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2
VLAN support: Yes
Network address translation (NAT): Yes
Number of VLANs: 4096
Password protection: Yes

Ports interfaces

SIM card slot: Yes
Ethernet LAN (RJ-45) ports: 2

Management features

Performance management: SLA-Monitor (ICMP)
Quality of Service (QoS) support: Yes
Reset button: Yes
Syslog: Yes
Multicast support: Yes

Power

Power consumption (typical): 5.6 W
Power consumption (max): 11.3 W

Weight dimensions

Width: 33 mm
Depth: 210 mm
Height: 152 mm

Packaging data

Package width: 385 mm
Package depth: 288 mm
Package height: 94 mm
Package weight: 2.15 kg

Packaging content

Manual: Yes
Cables included: LAN (RJ-45)

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 0 - 95%

Certificates

Certification: CE

Logistics data

Country of origin: Germany
Customs product code (TARIC): 85176200
