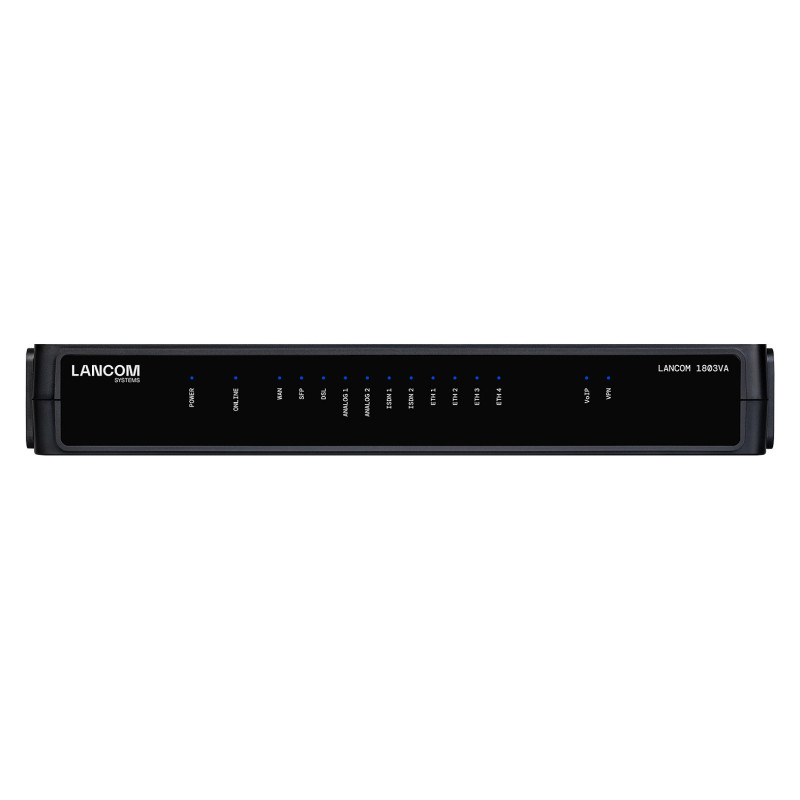

LANCOM 1803VA (EU) gateway / controller

LANCOM 1803VA (EU). Product colour: Black, Number of fans: 1 fan(s). Management protocols: SNMPv1,v2c,v3, Supported network protocols: Ethernet over GRE-Tunnel (EoGRE), L2TPv3, ARP-Lookup, LLDP, DHCP option 82,..., VoIP protocols: SIP ALG. Ethernet LAN data rates: 10,1000,100 Mbit/s, Networking standards: IEEE 802.3az, IEEE 802.1Q. Security algorithms: 3DES, SHA-1, SHA-256, SHA-384, SHA-512, FIPS 140, AES, Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2. WAN connection: Ethernet (RJ-45)
SD-WAN VoIP gateway with VDSL
Reliable and secure site networking via SD-WAN is easier than ever for medium-sized businesses and branch office infrastructures: With the LANCOM 1803VA and its integrated VDSL modem, you benefit from a high-performance Internet connection that ensures fast data transfer even in the case of higher data volumes thanks to an optional fiber-optic connection. With excellent LANCOM IPSec VPN and SD-WAN, you can securely connect sites and mobile employees. Interaction with the LANCOM Management Cloud (LMC) not only simplifies your network management, but also accelerates and automates the rollout of your network components. The simple connection of telephony components rounds off the LANCOM 1803VA.
Modern housing with focus on sustainability
Innovative technology meets forward-looking optics: the combination of matte black plastic and mirror-like acrylic glass front panel for interface information conveys a tangible feeling of security, reliability, and high quality. The housing of the SD-WAN branch router offers high installation flexibility thanks to possible table, rack, and wall mounting. Local production ensures short procurement routes with low CO2 emissions and thus scores particularly well in terms of sustainability.
Security with ARF, VLAN, and inspection firewall
Equipped with a stateful inspection firewall, the LANCOM SD-WAN gateway protects the entire network with functions such as intrusion prevention and denial of service protection. Logical network segmentation allows you to define individual security settings and access rights according to the requirements of the user groups, and to divide your infrastructures and applications into different areas. This network segmentation using ARF (Advanced Routing and Forwarding) and VLAN (Virtual Local Area Network) ensures that your enterprise network as a whole remains protected, even if a network segment is compromised.
Secure communication via VPN
With virtual private networks (VPN), you use the public medium of the Internet as a communication path and secure the connection in such a way that the communication still remains completely inaccessible to external parties. This SD-WAN gateway offers you five integrated IPSec VPN channels for secure encryption, so that the protection of internal company data is always guaranteed when connecting mobile employees, home offices, or branch offices. With the LANCOM VPN Option, you can also upgrade the device to up to 25 VPN channels, so that the infrastructure can easily grow with your needs without additional hardware.

Professional, comprehensive telephony functions
Equipped with the LANCOM VCM (Voice Call Manager), the LANCOM SD-WAN VoIP gateway takes over classic telephony management tasks and integrates any type of telephony component such as SIP, ISDN, or analog. In addition, the LANCOM VCM provides common functions of a Session Border Controller (SBC): This ensures the secure separation of external (unsecure) and internal (secure) networks. For high call quality, voice packets are given preference thanks to bandwidth reservation (Quality of Service). In addition, as a SIP proxy, the VCM enables professional management of signaling and voice data for high security in the setup, implementation and teardown of telephone conversations, including any protocol conversion by means of transcoding. The VoIP gateway conveniently handles the translation between ISDN, analog, and VoIP.
Maximum future-proofing and digital sovereignty

As an established German manufacturer of IT network solutions, LANCOM stands for reliability and know-how. Software and hardware development as well as production take place primarily in Germany, as does the hosting of the network management. Special attention is given to providing trusted solutions with outstanding security features. Another important security characteristic of the products is that they are free from backdoors, as awarded by the German Federal Ministry of Economy with the quality seal "IT Security made in Germany". All devices are always equipped with with hardware that is dimensioned for the future. Even across product generations, updates to the LANCOM operating system family are available several times a year, free of charge. his guarantees a long service life while staying technically up to date, which represents a true protection of your investment. In addition, LANCOM infrastructures are easily scalable thanks to maximum compatibility.

Design

Product colour: Black
LED indicators: Yes
Number of fans: 1 fan(s)

Performance

Control display unit: No

Protocols

Management protocols: SNMPv1,v2c,v3
Supported network protocols: Ethernet over GRE-Tunnel (EoGRE), L2TPv3, ARP-Lookup, LLDP, DHCP option 82, IPv6-Router-Advertisement-Snooping, DHCPv6-Snooping, LDRA (Lightweight DHCPv6 Relay Agent), Spanning Tree, Rapid Spanning Tree, ARP, Proxy ARP, BOOTP, DHCP, LACP
DHCP server: Yes
DHCP client: Yes
VoIP protocols: SIP ALG
DMZ support: Yes

Network

Ethernet LAN data rates: 10,1000,100 Mbit/s
Networking standards: IEEE 802.3az, IEEE 802.1Q
Dynamic DNS (DDNS): Yes

Security

Access Control List (ACL): Yes
MAC address filtering: Yes
Security algorithms: 3DES, SHA-1, SHA-256, SHA-384, SHA-512, FIPS 140, AES
Firewall security: Yes
Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2
VLAN support: Yes
Network address translation (NAT): Yes
Number of VLANs: 4096
Password protection: Yes

Ports interfaces

USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 5
WAN connection: Ethernet (RJ-45)
DC-in jack: Yes

Management features

Web-based management: Yes
Reset button: Yes
Syslog: Yes
Multicast support: Yes

Power

Power consumption (max): 26 W
Power consumption (idle): 13 W
Heat dissipation: 104 BTU/h

Weight dimensions

Width: 293 mm
Depth: 190 mm
Height: 44 mm
Weight: 740 g

Packaging data

Package width: 210 mm
Package depth: 320 mm
Package height: 110 mm

Packaging content

AC adapter included: Yes
Manual: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 95%

Logistics data

Country of origin: Germany
Customs product code (TARIC): 85176200
