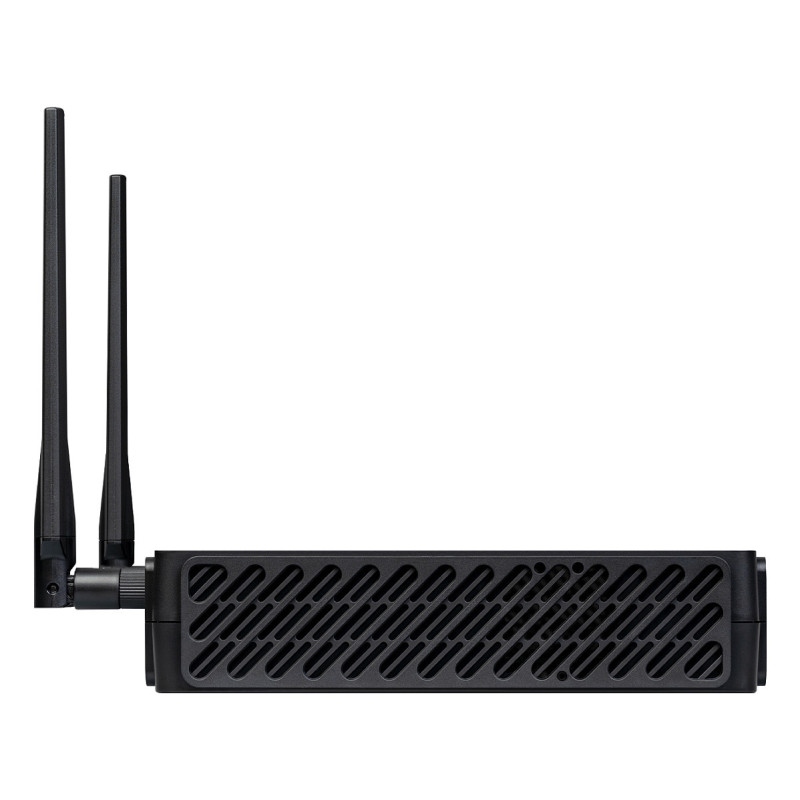

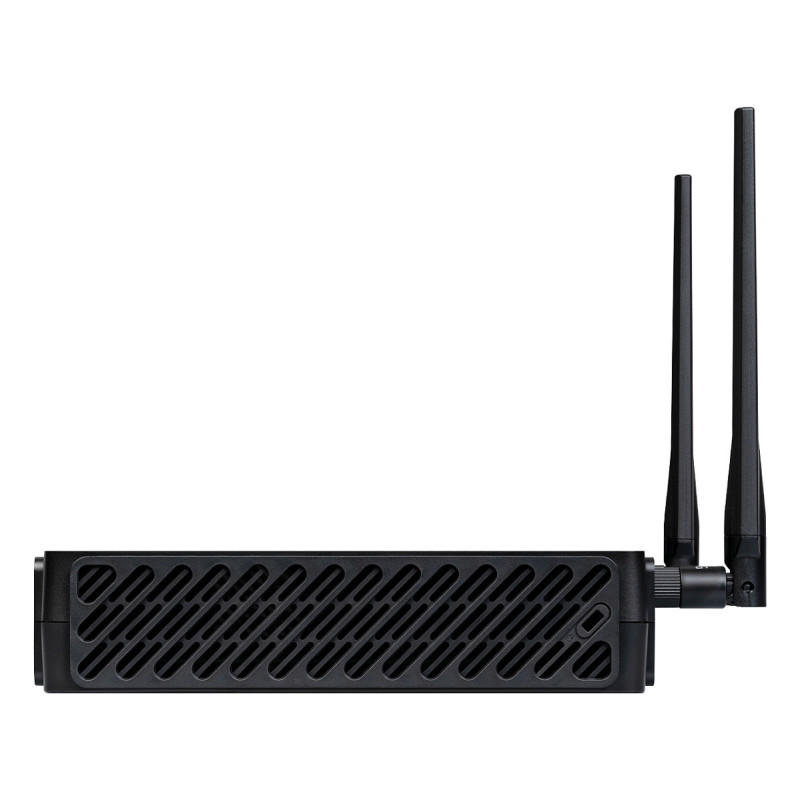

LANCOM 1800VAW-4G (EU) gateway / controller

LANCOM 1800VAW-4G (EU). Product colour: Black, LED indicators: DSL, LAN, Power, WAN, WLAN, Number of fans: 1 fan(s). Antenna type: External, Antenna connector type: SMA, Antenna gain level (max): 2 dBi. Supported network protocols: DNS, HTTP, HTTPS, ICMP, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RADSEC (secure RADIUS), RTP,..., Routing protocols: BGP4, LISP, OSPFv2, RIP-2, VRRP. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE..., WLAN data transfer rates supported: 1,2,5.5,6,9,11,18,24,36,54,300,574,867,1200 Mbit/s. Security algorithms: 802.1x RADIUS, AES-CCMP, AES-GCMP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-TLS, EAP-TTLS, MSCHAPv2, TKIP,..., Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2

At company sites and branch offices with business-critical applications, a fast and at the same time highly available connection to the Internet is essential. The SD-WAN gateway LANCOM 1800VAW-4G offers flexible interface diversity with VDSL and fiber optics, and its additional 4G connectivity ensures reliable Internet backup in the event of a wired line failure. Complemented by high-performance dual-band concurrent Wi-Fi 6, mobile devices are also connected by radio. Automated network management in combination with the LANCOM Management Cloud (LMC) enables the LANCOM 1800VAW-4G to save valuable resources such as time and costs.

LANCOM SD-WAN - Next-level networking
With LANCOM SD-WAN you can manage and monitor your entire corporate network centrally, cost-effectively, quickly, and stress-free! In combination with the LANCOM Management Cloud, the SD-WAN gateway gives you all the options for an automated setup of secure VPN connections (Auto-VPN) between sites, including network virtualization. Highlight features such as High Scalability VPN (HSVPN) and Advanced Mesh VPN offer you a significant plus in scalability and efficiency for a large number of branches and applications. Furthermore, if multiple WAN connections are defined, they are automatically operated in active/active mode (load balancing), thereby increasing the available total bandwidth. With Dynamic Path Selection and Dynamic Traffic Steering, applications are also dynamically routed via the best connection at any given time.

WAN connectivity with VDSL Supervectoring
The LANCOM 1800VAW-4G offers full VDSL Supervectoring support and is also backwards compatible with VDSL2 and ADSL2+. Data rates of up to 300 Mbps are possible on existing copper lines. Alternatively, the LANCOM 1800VAW-4G is ideal for intelligent backup scenarios to protect business-critical applications thanks to its 4G modem (Cat. 6) with 300 Mbps LTE-Advanced. High availability and speed make the branch router ideally suited for transferring data within the company network or to external cloud services.

Professional integration of wireless clients via Wi-Fi 6
The LANCOM 1800VAW-4G offers wireless LAN in the Wi-Fi 6 standard (IEEE 802.11ax) and can simultaneously integrate clients in the 2.4 GHz frequency band as well as modern end devices in the 5 GHz band into the network and supply them with fast Wi-Fi. The dual-band concurrent Wi-Fi 6 technology enables transmission rates of up to 1,200 Mbps in 5 GHz and up to 575 Mbps in 2.4 GHz in parallel.

Modern housing with focus on sustainability
Innovative technology meets forward-looking optics: the combination of matte black plastic and mirror-like acrylic glass front panel for interface information conveys a tangible feeling of security, reliability, and high quality. The housing of the SD-WAN branch router offers high installation flexibility thanks to possible table, rack, and wall mounting. Local production ensures short procurement routes with low CO2 emissions and thus scores particularly well in terms of sustainability.

Security with ARF, VLAN, and inspection firewall
Equipped with a stateful inspection firewall, the LANCOM SD-WAN gateway protects the entire network with functions such as intrusion prevention and denial of service protection. Logical network segmentation allows you to define individual security settings and access rights according to the requirements of the user groups, and to divide your infrastructures and applications into different areas. This network segmentation using ARF (Advanced Routing and Forwarding) and VLAN (Virtual Local Area Network) ensures that your enterprise network as a whole remains protected, even if a network segment is compromised.

Secure communication via VPN
With virtual private networks (VPN), you use the public medium of the Internet as a communication path and secure the connection in such a way that the communication still remains completely inaccessible to external parties. This SD-WAN gateway offers you five integrated IPSec VPN channels for secure encryption, so that the protection of internal company data is always guaranteed when connecting mobile employees, home offices, or branch offices. With the LANCOM VPN Option, you can also upgrade the device to up to 25 VPN channels, so that the infrastructure can easily grow with your needs without additional hardware.

Future-proofing and digital sovereignty "Made in Germany"
As an established German manufacturer of IT network solutions, LANCOM stands for reliability and know-how "Made in Germany". Software and hardware development as well as production take place primarily in Germany, as does the hosting of the network management. Special attention is given to providing trusted solutions with outstanding security features. Another important security characteristic of the products is that they are free from backdoors, as awarded by the German Federal Ministry of Economy with the quality seal "IT Security made in Germany". All devices are always equipped with with hardware that is dimensioned for the future. Even across product generations, updates to the LANCOM operating system family are available several times a year, free of charge. his guarantees a long service life while staying technically up to date, which represents a true protection of your investment. In addition, LANCOM infrastructures are easily scalable thanks to maximum compatibility.

Design

Product colour: Black
LED indicators: DSL, LAN, Power, WAN, WLAN
Number of fans: 1 fan(s)

Features

Antenna type: External
Antenna connector type: SMA
Antenna gain level (max): 2 dBi
Antennas quantity: 2

Protocols

Routing protocols: BGP4, LISP, OSPFv2, RIP-2, VRRP
Feature: DHCP server
Feature: DHCP client
Feature: DMZ support

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
WLAN data transfer rates supported: 1,2,5.5,6,9,11,18,24,36,54,300,574,867,1200 Mbit/s
Mobile network generation: 4G
4G standard: LTE
3G standards: HSPA, UMTS
4G bands supported: 700,800,900,1500,1800,2100,2300,2500,2600,3600 MHz
UMTS bands supported: 700,800,900,1800,2100,2500,2600 MHz
Frequency band: 2.4/5 GHz
Feature: Load balancing
Feature: Band steering
Modulation: 256-QAM, 1024-QAM
Feature: Dynamic DNS (DDNS)
PPTP/L2TP VPN tunnels (max): 25

Security

Feature: Access Control List (ACL)
Feature: MAC address filtering
Security algorithms: 802.1x RADIUS, AES-CCMP, AES-GCMP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-TLS, EAP-TTLS, MSCHAPv2, TKIP, WEP, WPA, WPA2-Enterprise, WPA3, WPA3-Enterprise
Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2
Feature: VLAN support
Feature: Password protection

Ports & interfaces

USB 2.0 ports quantity: 1
Feature: SIM card slot
SIM card type: MicroSIM
Ethernet LAN (RJ-45) ports: 5
WAN connection: Ethernet (RJ-45), SFP
Feature: DC-in jack

Management features

Feature: IGMP snooping
Multicast Listener Discovery (MLD) snooping: Y
Feature: DHCPv6 snooping
Performance management: SLA-Monitor (ICMP)
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: Syslog
Feature: Multicast support
Feature: Traffic shaping

Power

Power consumption (max): 36 W
Power consumption (idle): 18 W
Heat dissipation: 144 BTU/h

Weight & dimensions

Width: 293 mm
Depth: 190 mm
Height: 44 mm
Weight: 830 g

Packaging data

Package width: 210 mm
Package depth: 320 mm
Package height: 110 mm
Package weight: 1.96 kg

Packaging content

Feature: AC adapter included
Feature: Manual
Cables included: DSL, LAN (RJ-45)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 95%

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE

Logistics data

Country of origin: Germany
Customs product code (TARIC): 85176200
